To remove

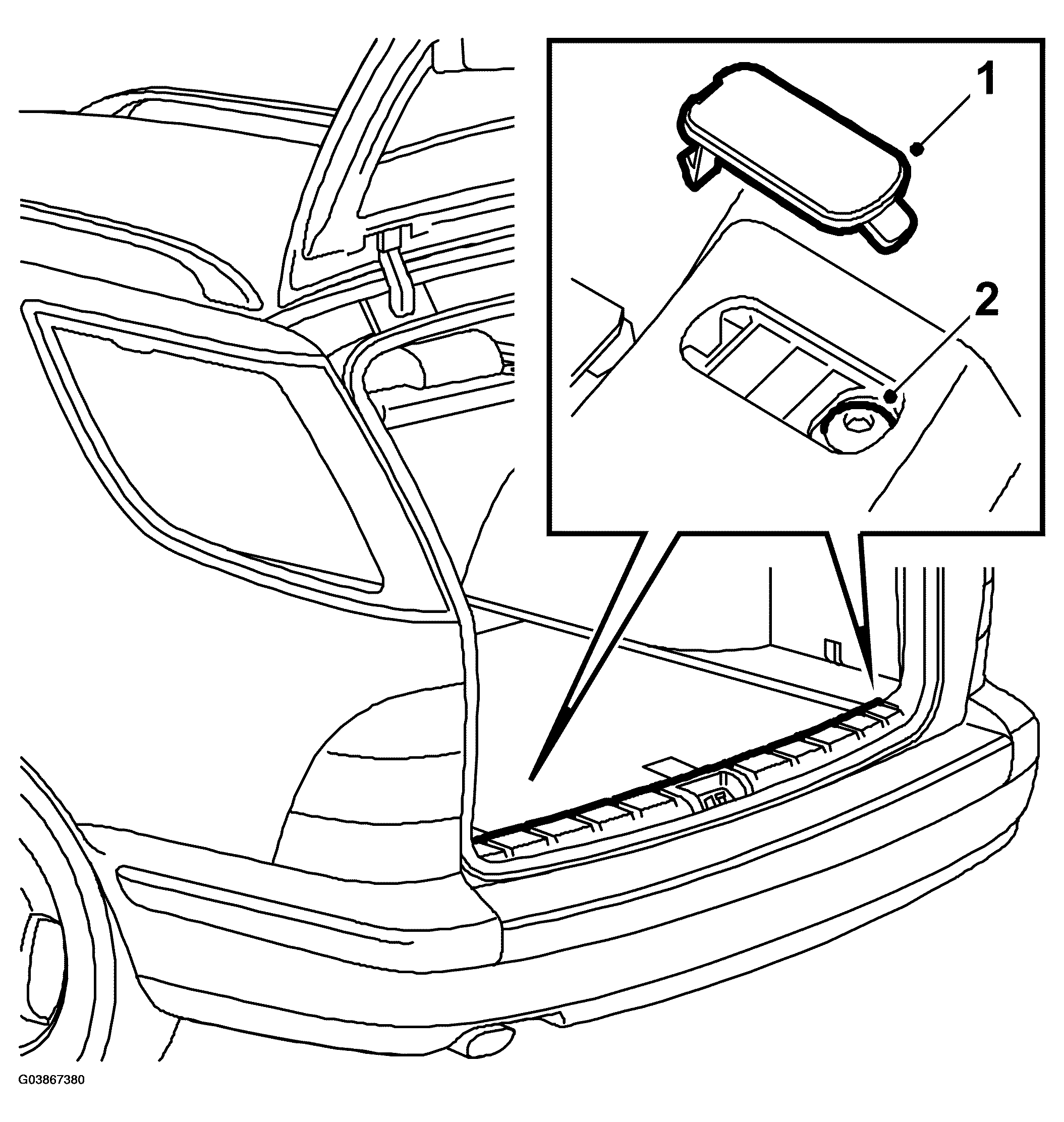

Fig 1: Illustration For Steps 1-2
G03867380Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the covers on right and left sides, using a screwdriver.
  2. Remove the screws securing the scuff plate to the sill.
  3. With draw the scuff plate, secured with clips.

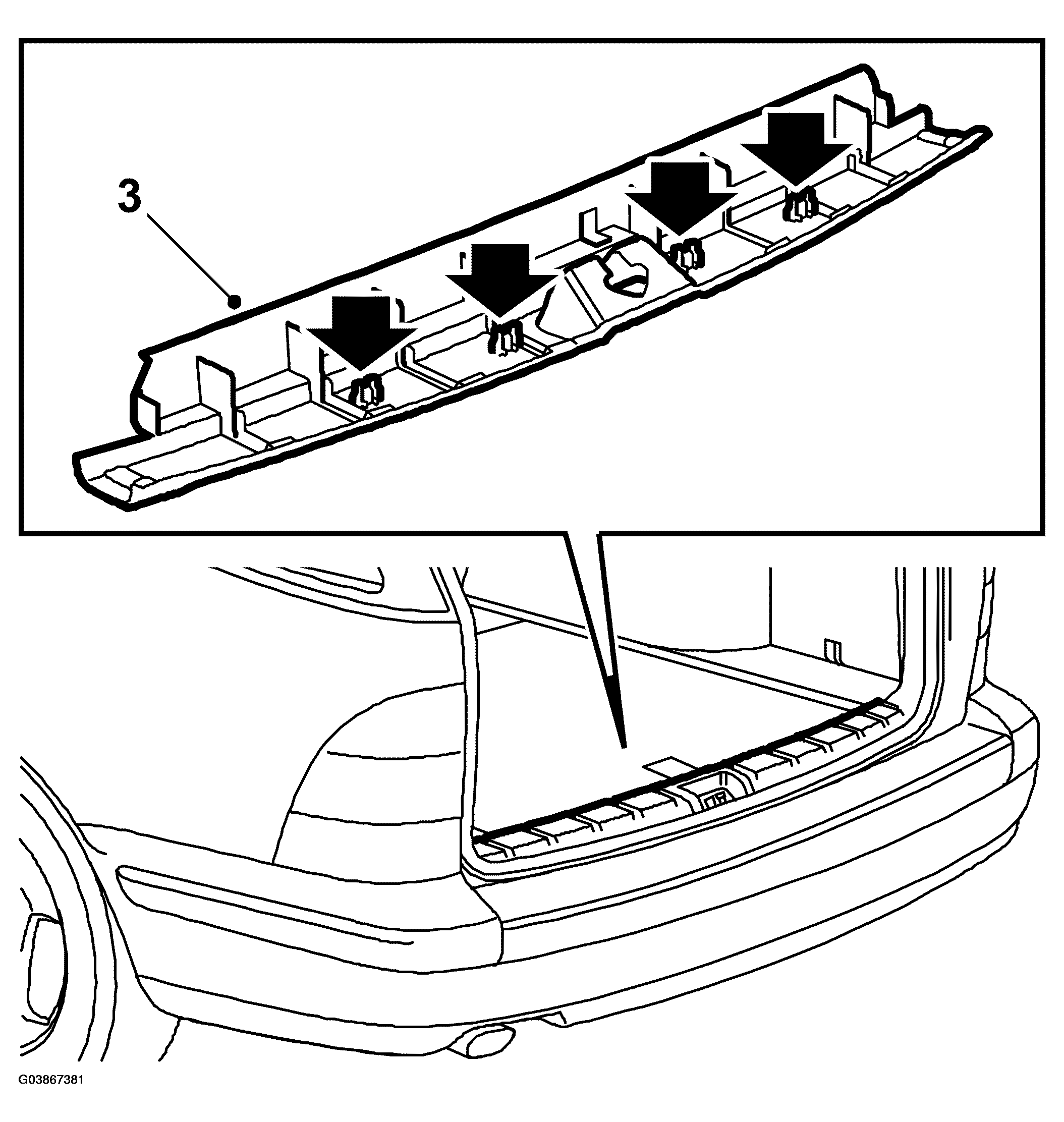

    Fig 2: Illustration For Step 3
    G03867381Courtesy of SAAB-SCANIA OF AMERICA, INC.
