To fit

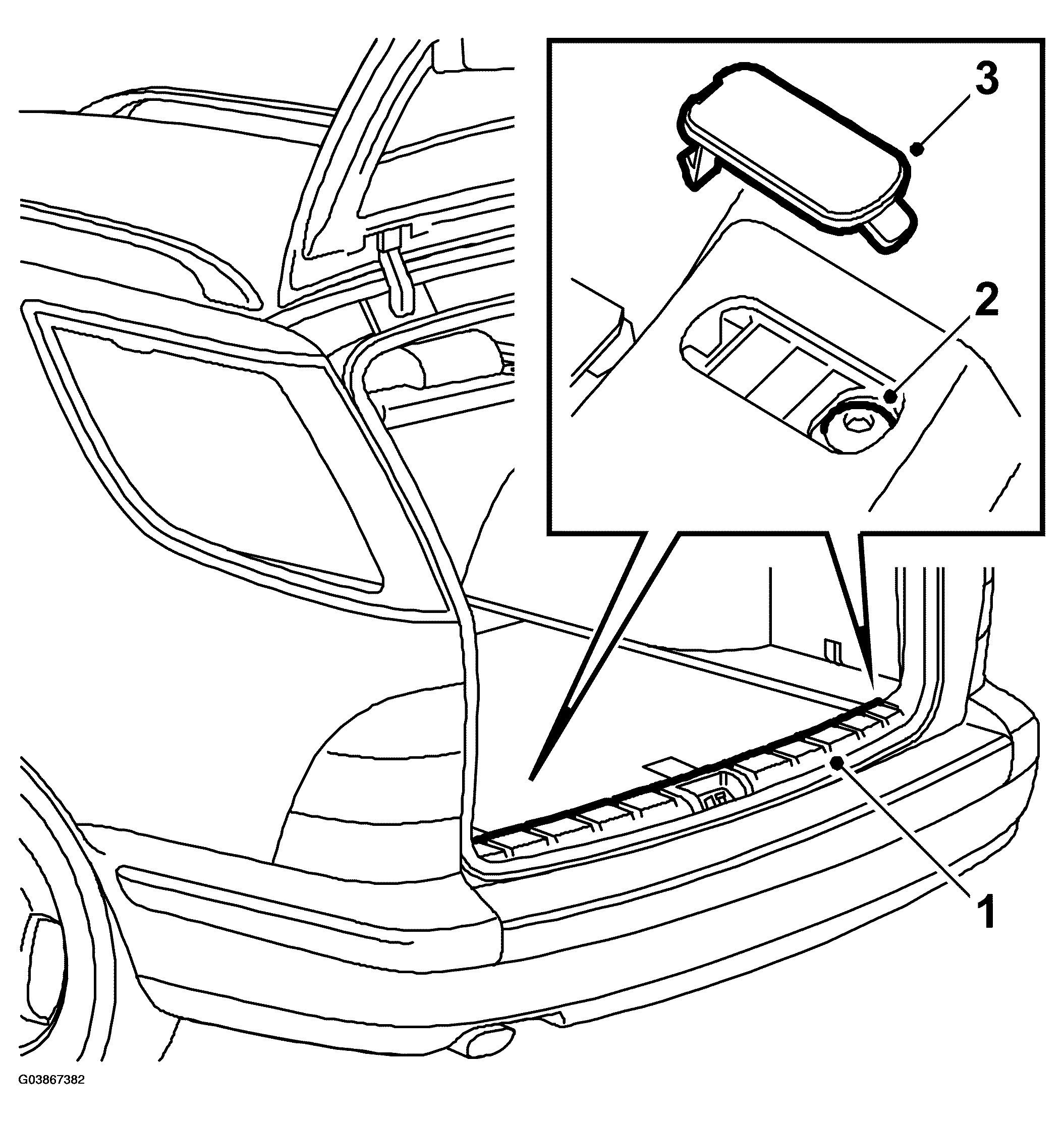

Fig 1: Illustration For Steps 1-3
G03867382Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the scuff plate's clips into place.
  2. Fit the scuff plate retaining screws.
  3. Fit the covers over the screws.
  4. Adjust the weatherstrip over the edge of the scuff plate.
