To remove

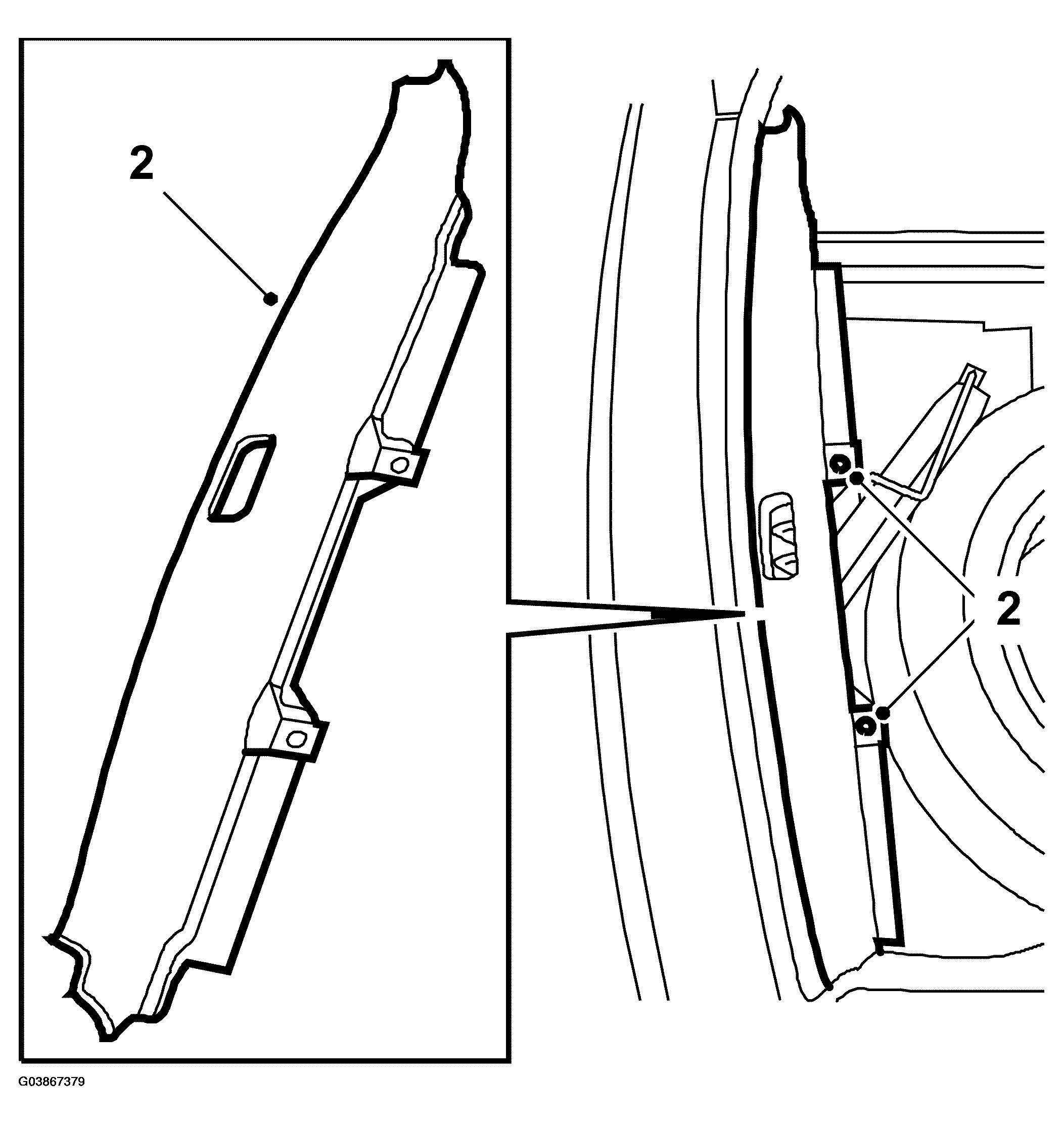

Fig 1: Illustration For Step 2
G03867379Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift up the floor panel in the luggage compartment.
  2. Remove the scuff plates (fastened with clips) by carefully levering them free with a screwdriver.
