To fit

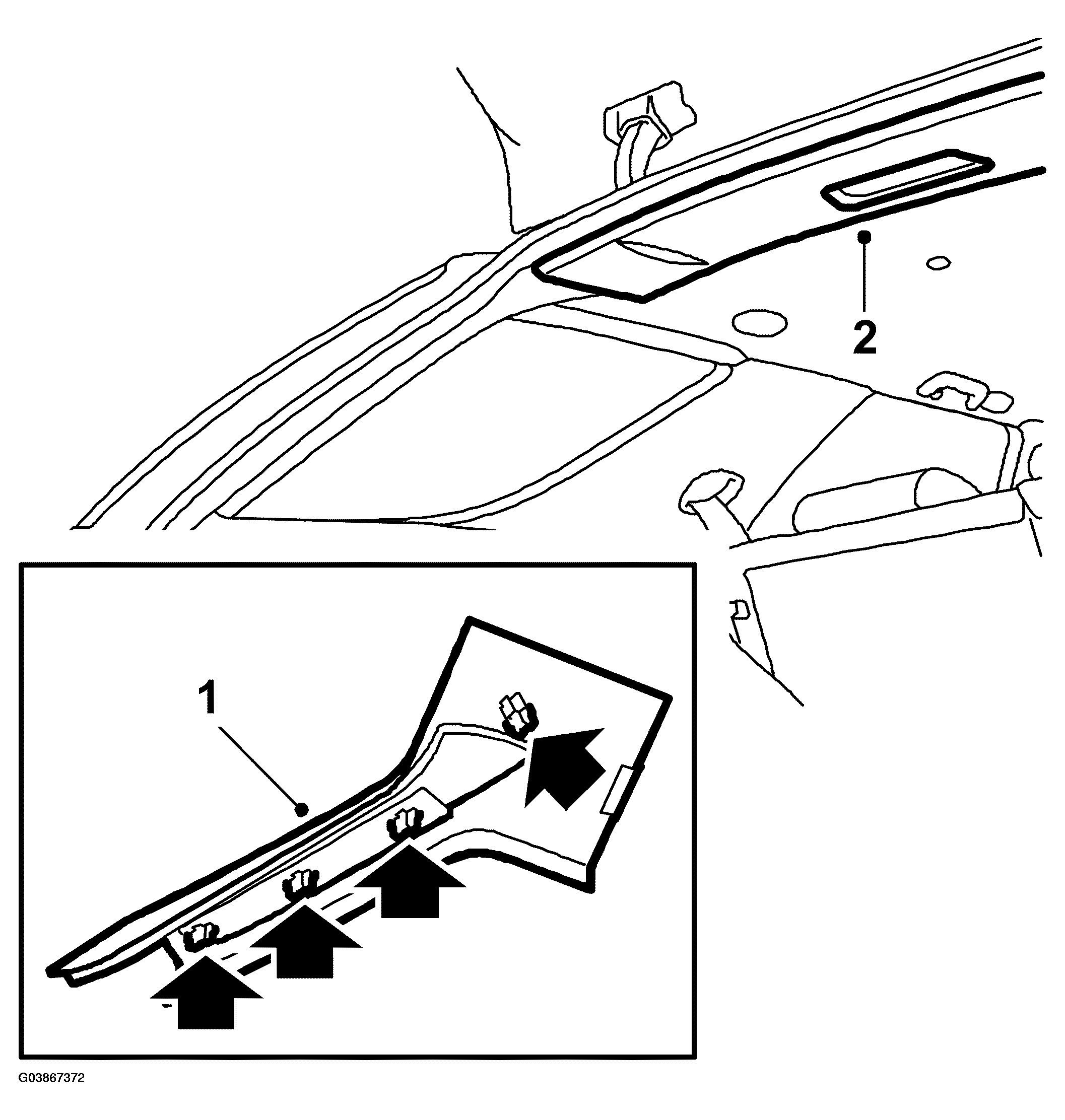

Fig 1: Illustration For Steps 1-2
G03867372Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the D pillar trim into place. Adjust the weatherstrip over the edge of the D pillar trim.
  2. Press the rear roof covering into place.
