To fit

WARNING: Take care not to damage or loosen the energy absorbers. Damaged or loose energy absorbers must not be refitted. If the occasion should arise, the entire headlining must be changed. Damaged energy absorbers may impair head protection in case of a collision.

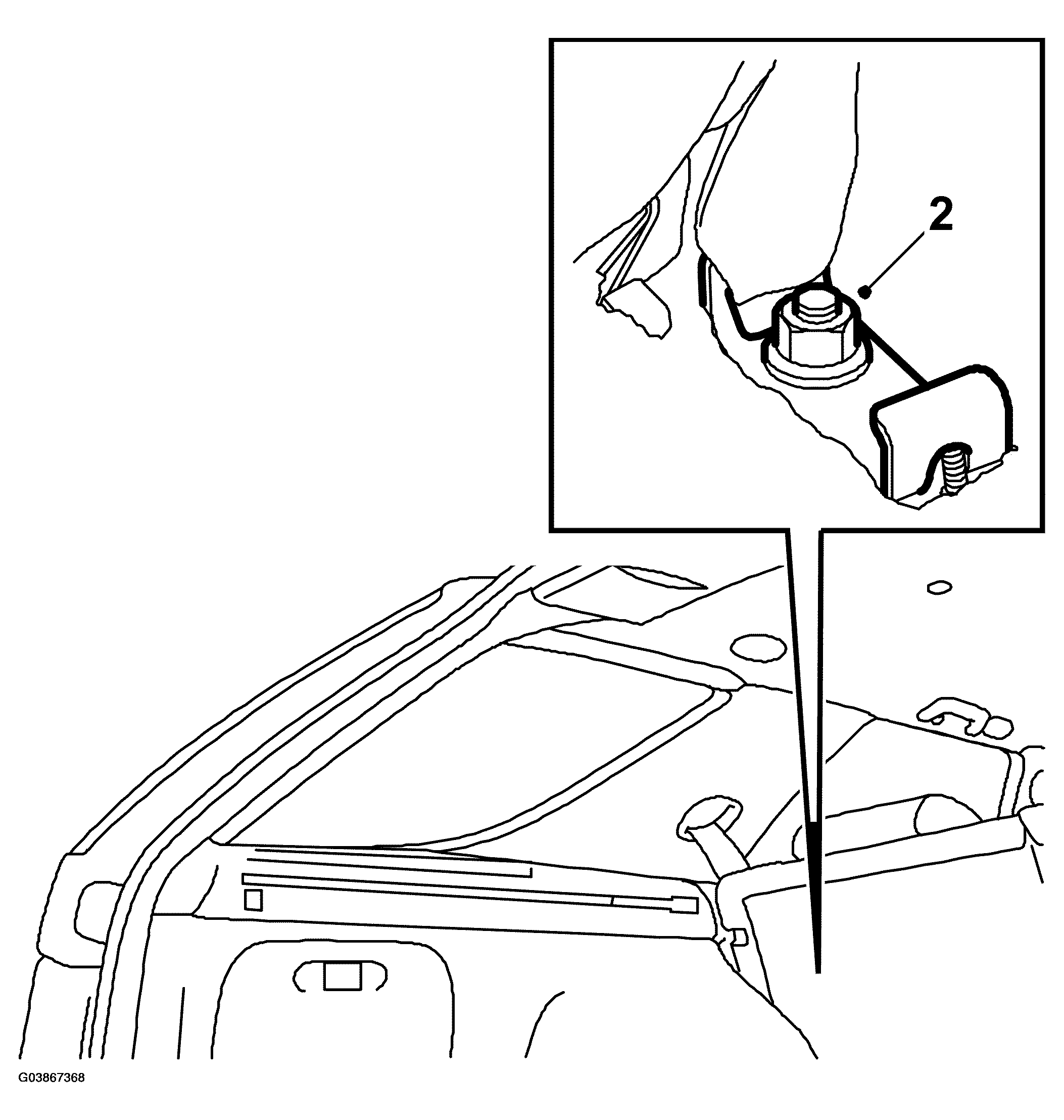

Fig 1: Illustration For Step 2
G03867368Courtesy of SAAB-SCANIA OF AMERICA, INC.
IMPORTANT: The belt must be fitted so that it will run properly when assembly is completed.
  1. Draw the belt through the C-pillar trim.
  2. Fit the lower seat belt anchorage, making sure that the guide is in the right place so that the seat cushion's hook will assume the correct position.

    Tightening torque 45 Nm (33 lbf ft)

    Press the strap guide into place in the C pillar trim.

  3. Raise the rear seat cushion.
  4. Position the C pillar trim by means of the locating pin and press the trim into place.

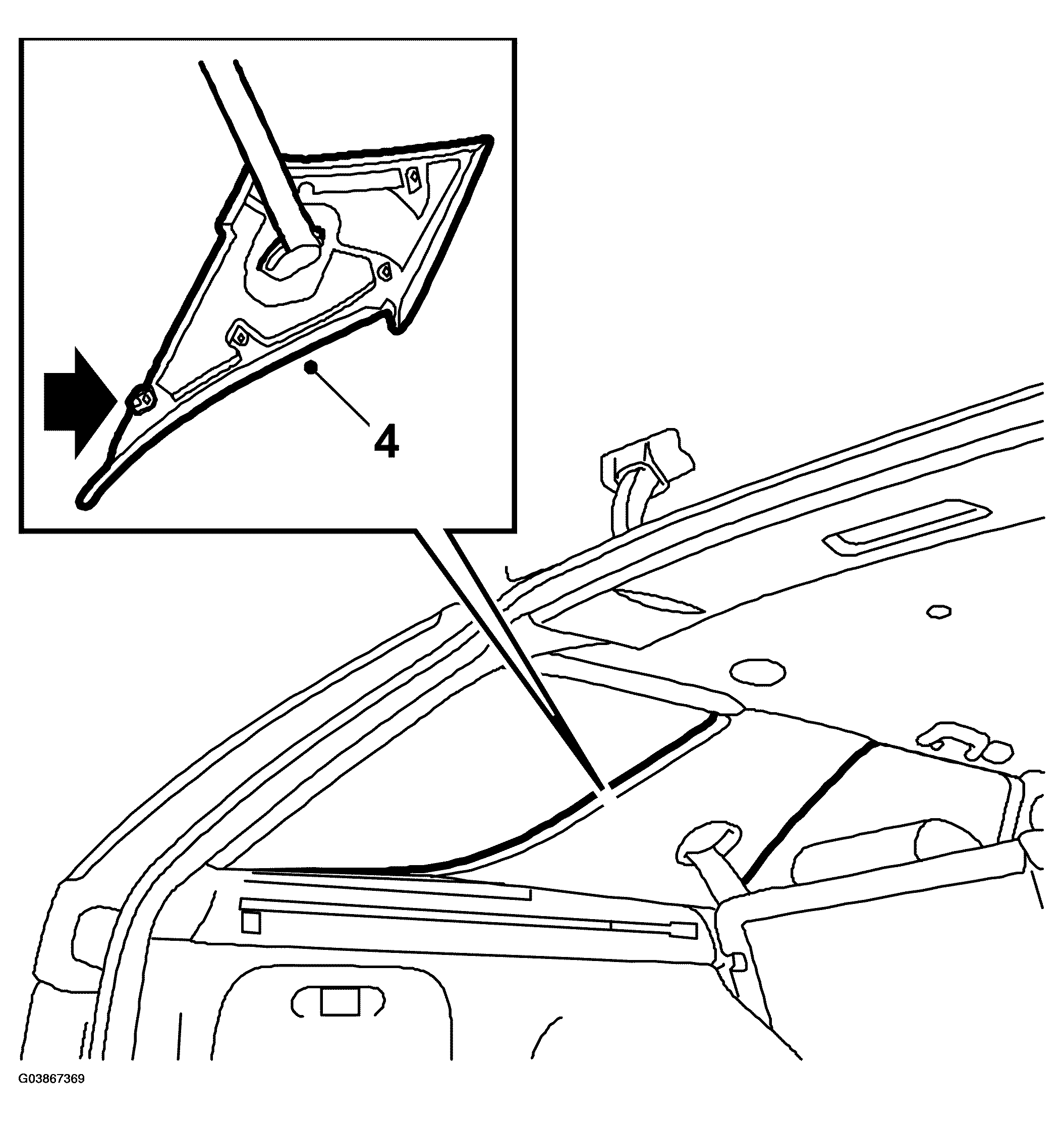

    Fig 2: Illustration For Step 4
    G03867369Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the parcel shelf support, 3 screws and 1 cover.

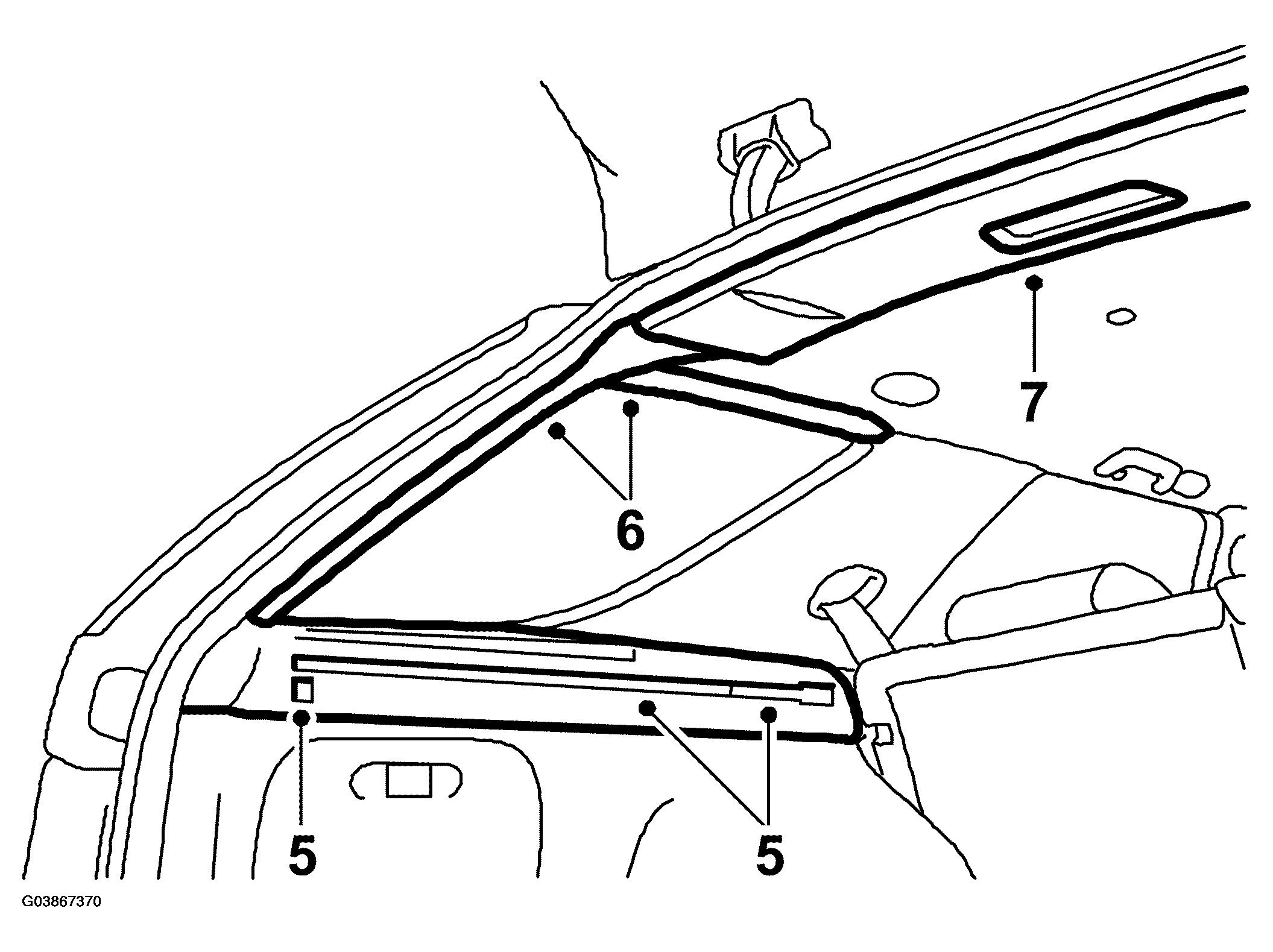

    Fig 3: Illustration For Steps 5-7
    G03867370Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the D pillar trim, secured with clips. Adjust the weatherstrip over the edge of the D pillar trim.
  7. Press the rear roof covering into place.
