To remove

WARNING: Take care not to damage or loosen the energy absorbers. Damaged or loose energy absorbers must not be refitted. If the occasion should arise, the entire headlining must be changed. Damaged energy absorbers may impair head protection in case of a collision.

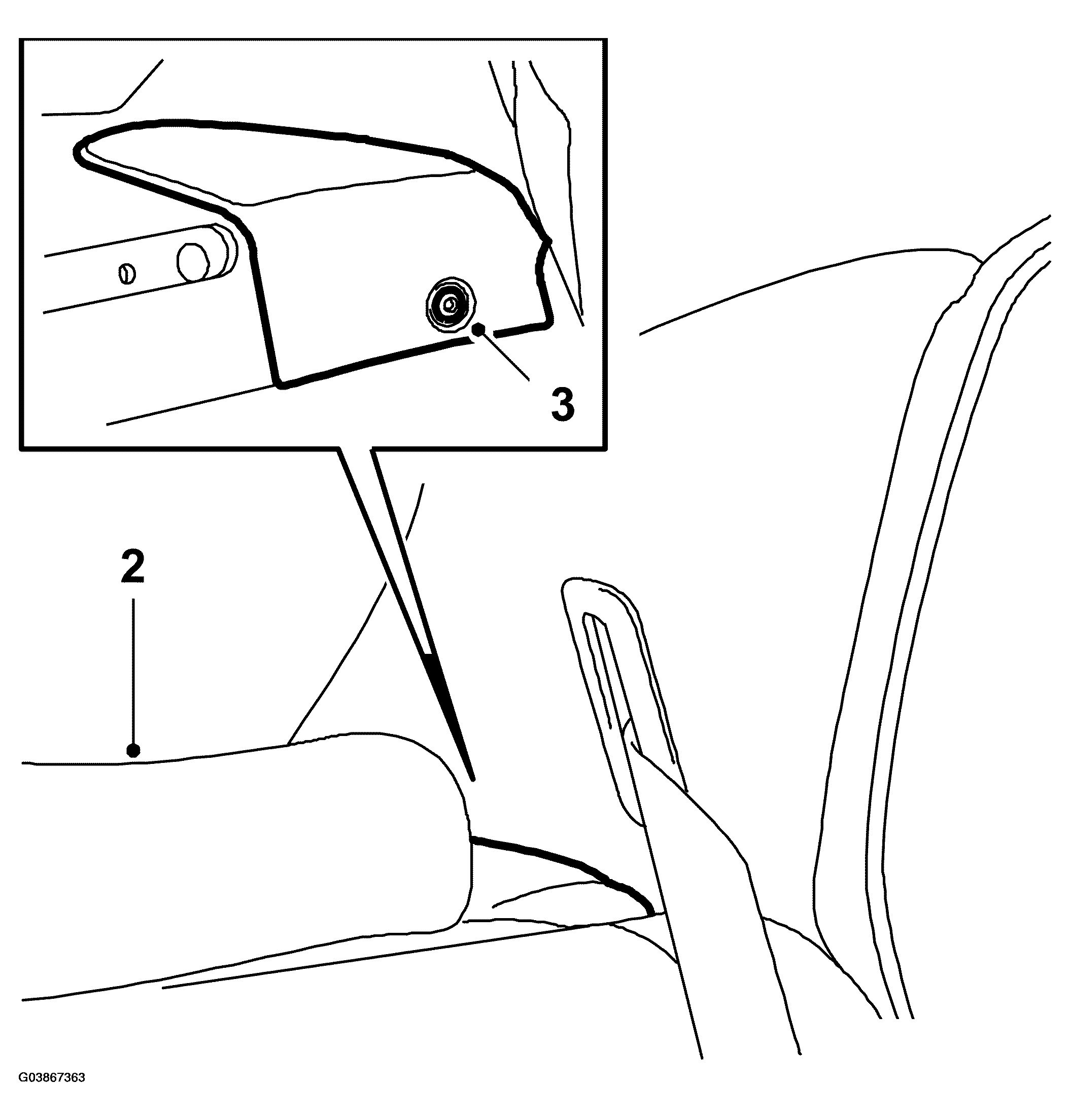

Fig 1: Illustration For Steps 2-3
G03867363Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fold down the backrest.
  2. Remove the head restraint from the rear seat, 1 screw.
  3. Remove the speaker grille (fastened with clips) in the parcel shelf.
  4. Pull out the C-pillar trim (fastened with 5 clips).

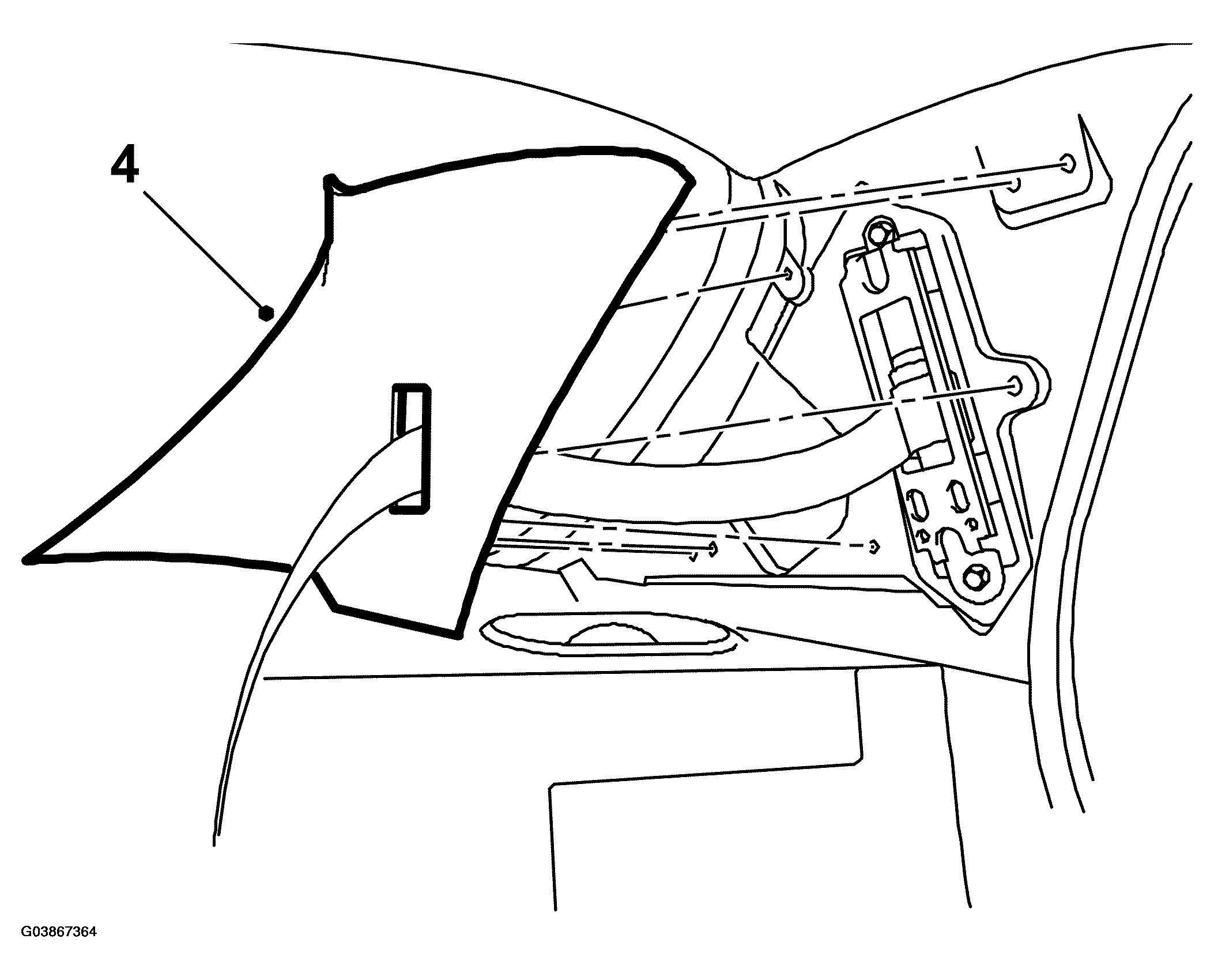

    Fig 2: Illustration For Step 4
    G03867364Courtesy of SAAB-SCANIA OF AMERICA, INC.
