To fit

WARNING: Take care not to damage or loosen the energy absorbers. Damaged or loose energy absorbers must not be refitted. If the occasion should arise, the entire headlining must be changed. Damaged energy absorbers may impair head protection in case of a collision.
  1. Fit the bottom of the trim in place.

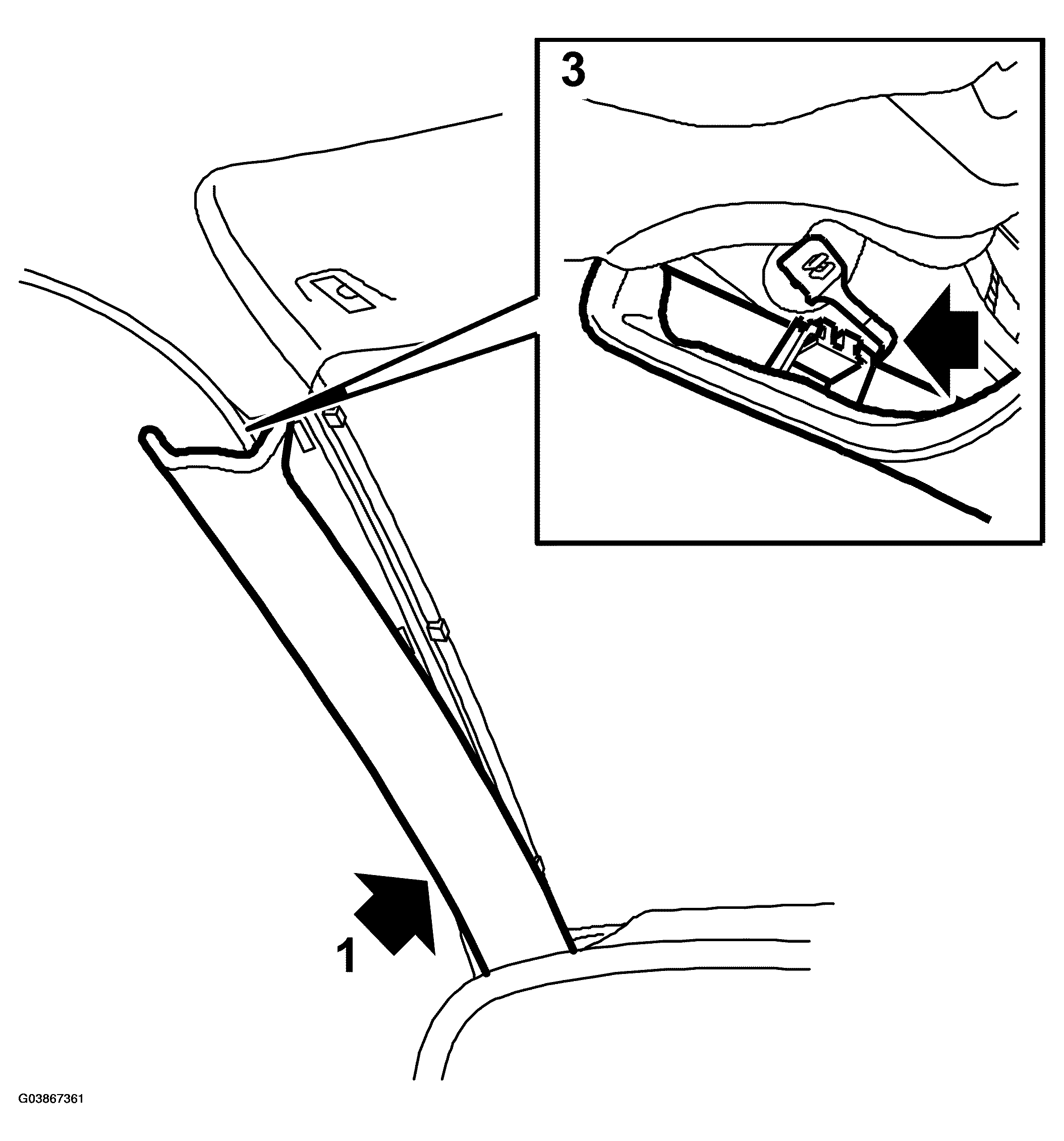

    Fig 1: Illustration For Steps 1 & 3
    G03867361Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the clip with the strap downwards in the trim.
    NOTE: It is important that the strap on the clip is intact.
  3. Press the trim into all the clips.
  4. Fit the door weatherseal.
    NOTE: Check that the door sealing molding fits correctly.
