To fit

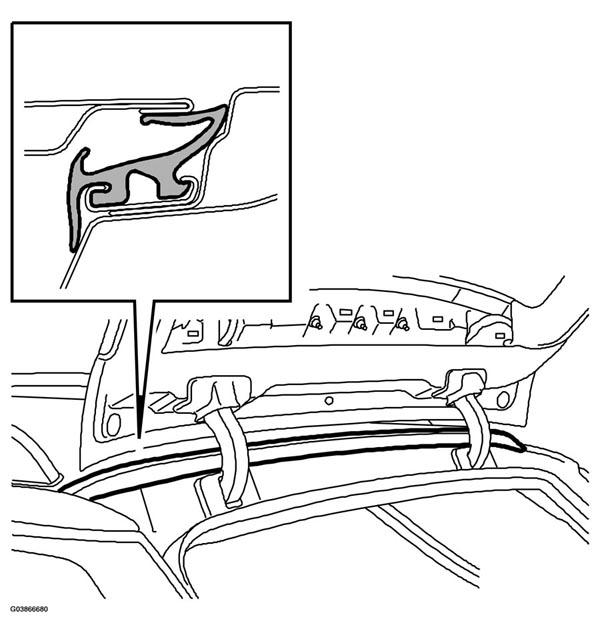

Fig 1: Installing Weatherstrip
G03866680Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the weatherstrip down into the C pillar channel. Make sure that the flanges on the sides are correctly positioned inside the roof bar's moulding.
