To fit

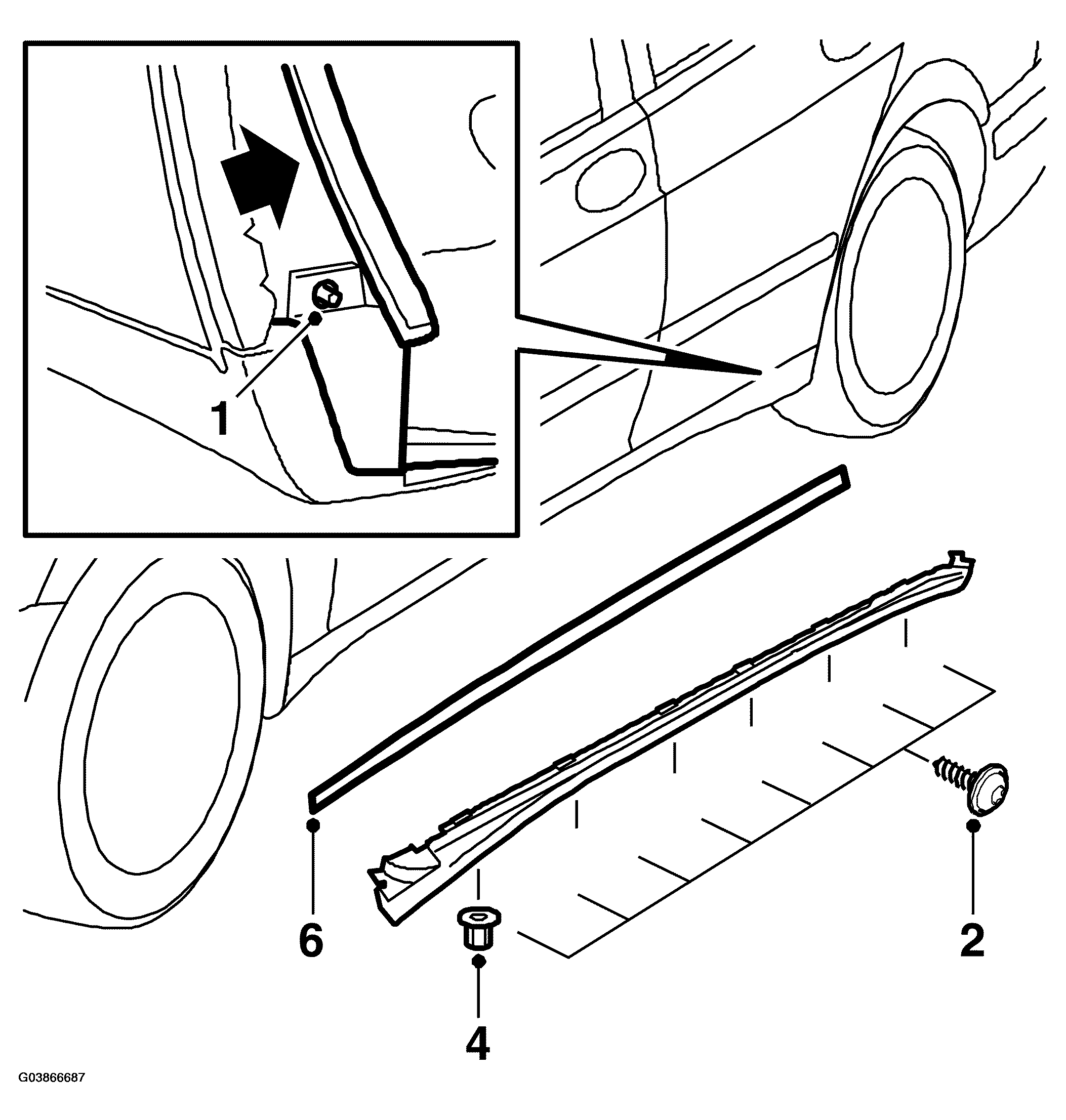

Fig 1: Illustration For Step 1-6
G03866687Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Pry out the front of the rear wing liner and hang the scuff plate on the screw.
    NOTE: One of the holes in the scuff plate is round and is used as a guide.
  2. Position the scuff plate and tighten the screw in the guide hole.
  3. Bend the front wing line out of the way and tighten the nut securing the scuff plate to the front wing.

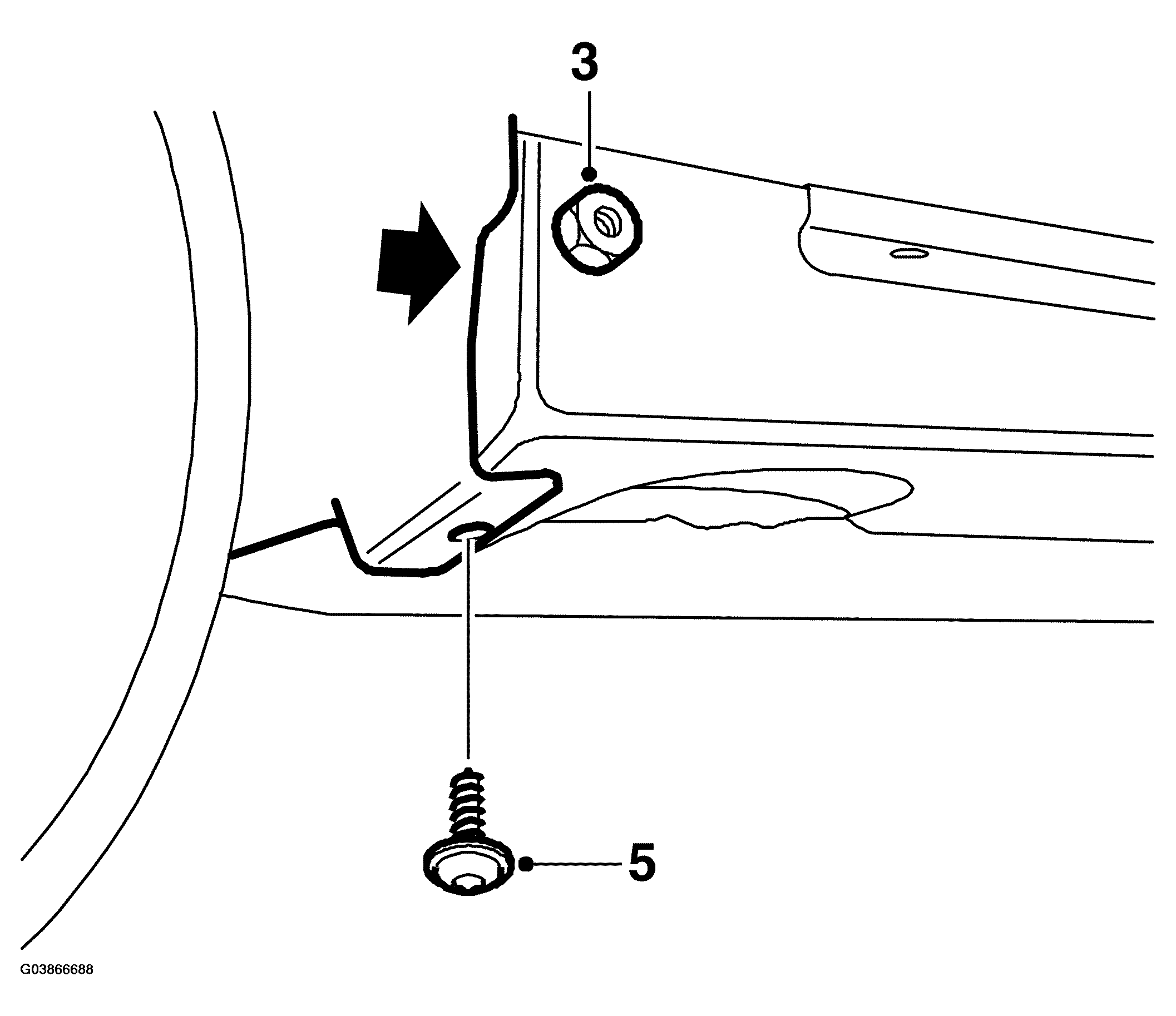

    Fig 2: Illustration For Step 3-5
    G03866688Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Screw on the scuff plate with the screws and plastic nuts.
  5. Fit the screw securing the front wing liner to the scuff plate.
  6. Fit the rubber strip, starting at the rear of the scuff plate.
