To remove

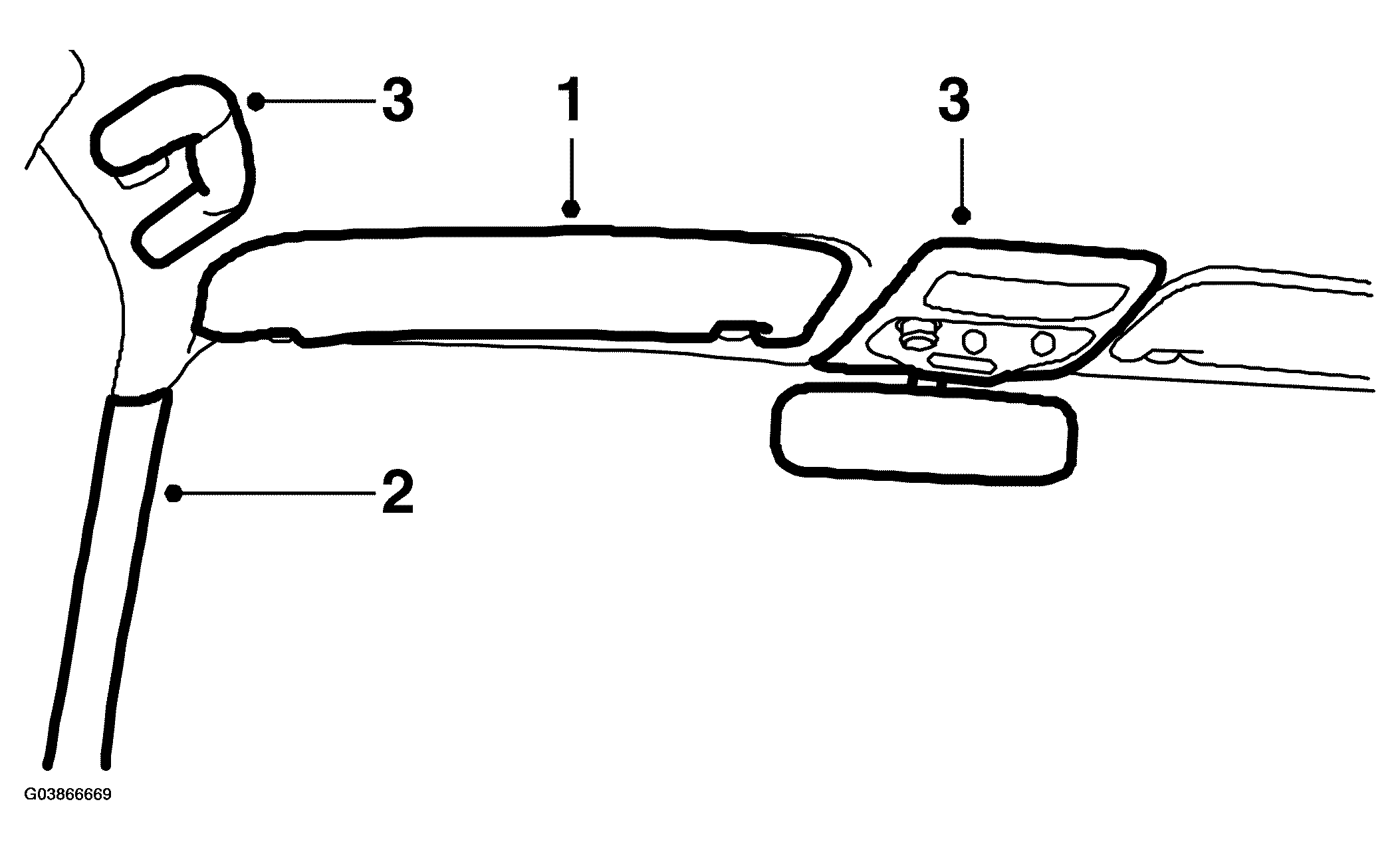

Fig 1: Illustration For Step 1-3

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following description cover the left-hand side

1. Remove the sun visor.
2. Remove the A pillar trim, secured with clips.
3. Remove the roof console and detach the courtesy handles at front and rear.
4. Detach the B pillar trim, secured with clips. Lift the pillar trim out of the air duct and place it to one side.

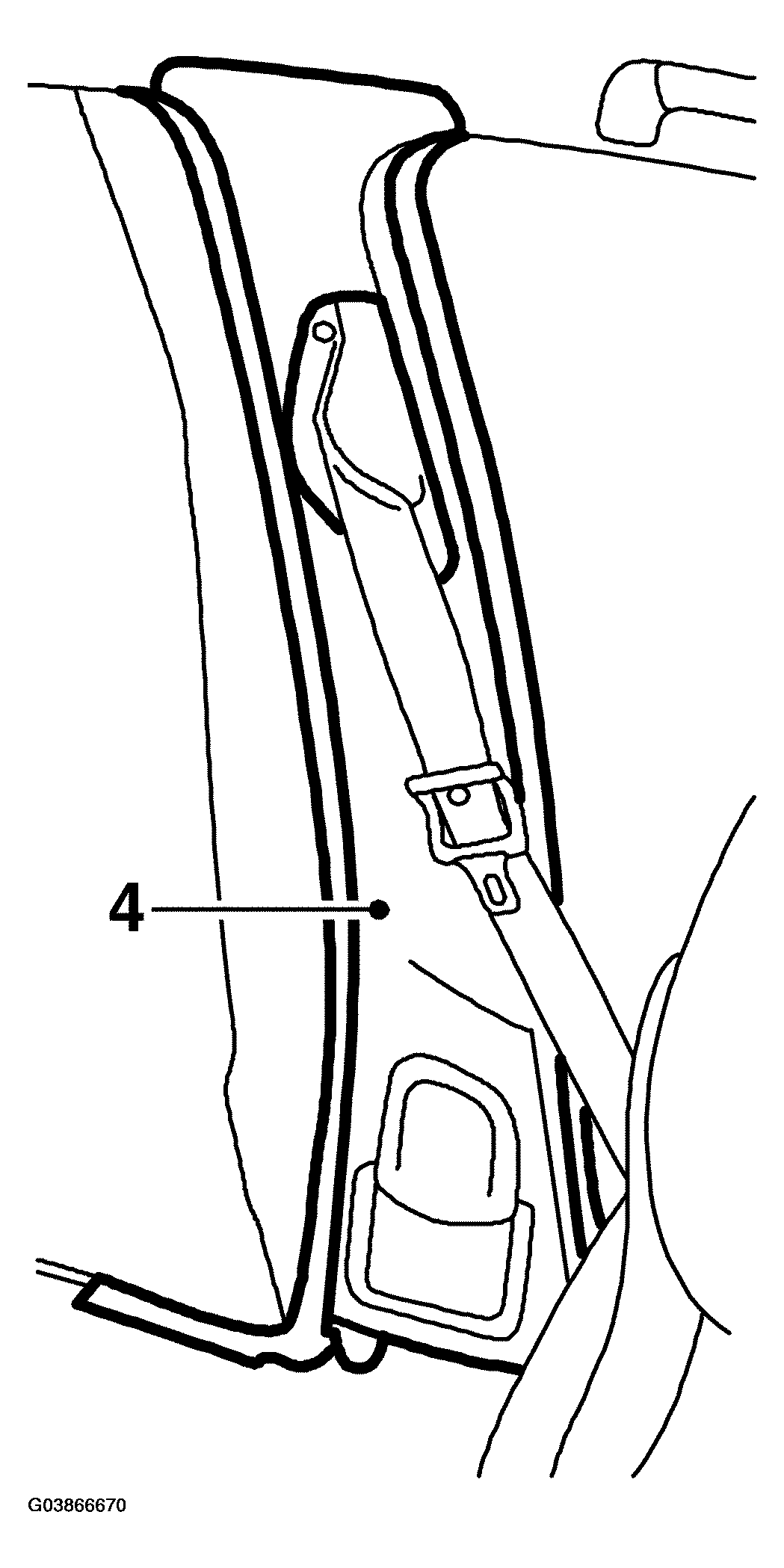

   Fig 2: Illustration For Step 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Remove the rear roof covering.

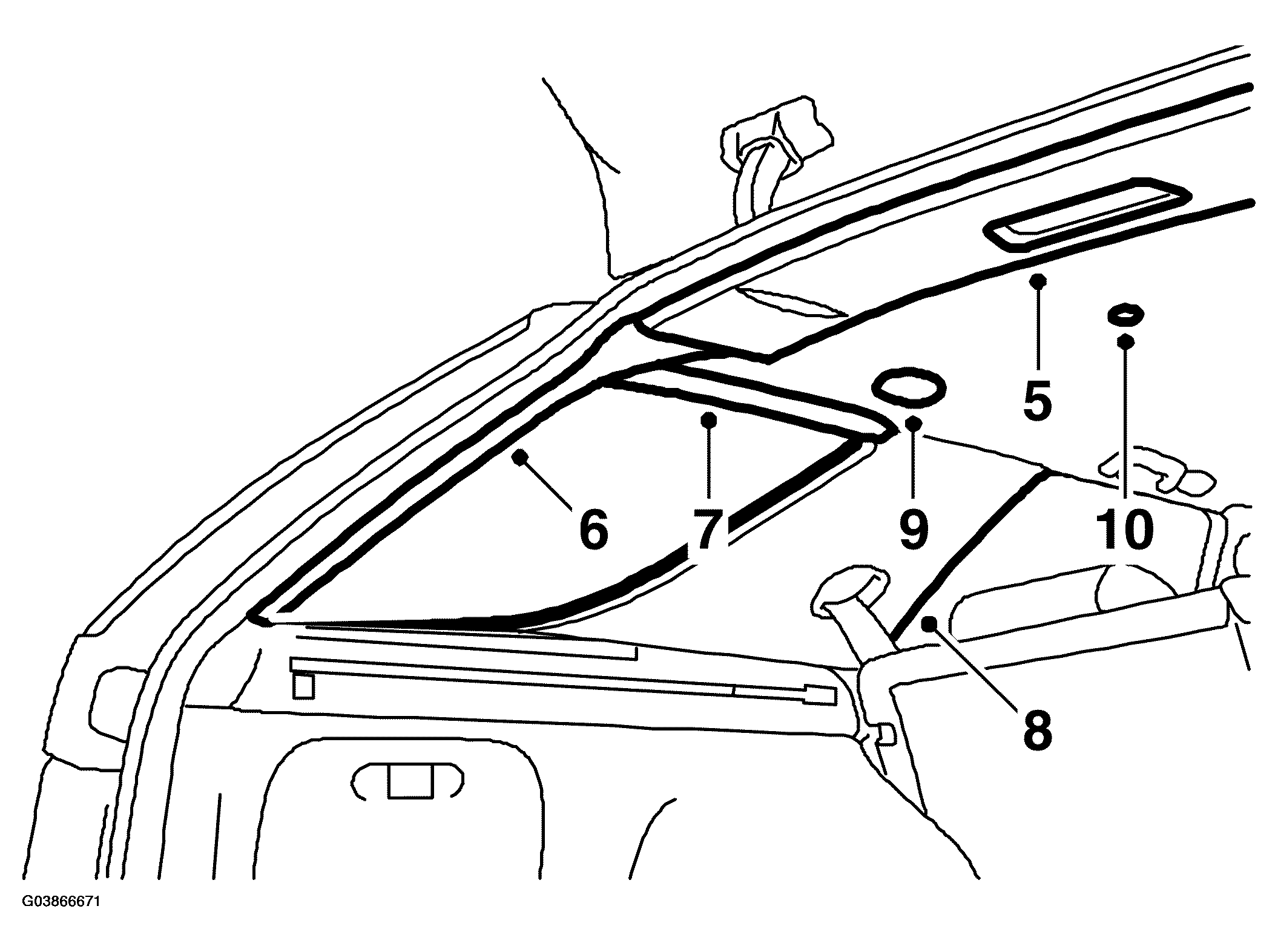

   Fig 3: Illustration For Step 5-10

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Detach the D pillar trim.
7. Remove the cover between the C and D pillars.
8. Detach the C pillar trim at the top.
9. Remove the cargo net lashing eyes.
10. Remove the clip securing the rear edge of the headliner by turning it 90° and pulling it downward.
11. Carefully pull the roof away from the door weather seal mouldings.
12. Bend down the headlining so that the roof bar nuts become accessible.
13. Remove the 4 nuts securing the roof bar.

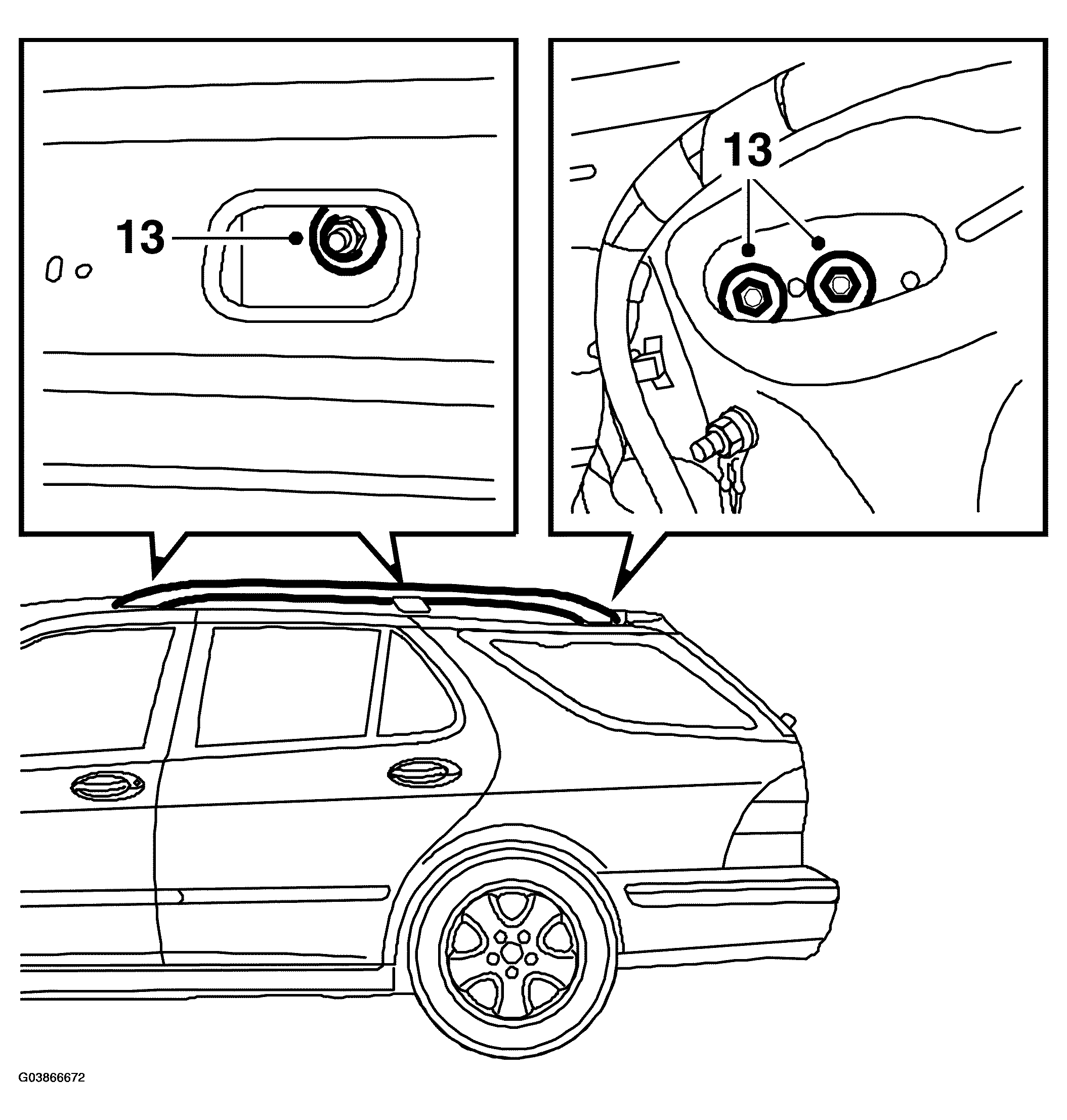

    Fig 4: Illustration For Step 13

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care to prevent the nuts from dropping down into some hole in the body.
14. Carefully lift the roof bar away.
