To fit

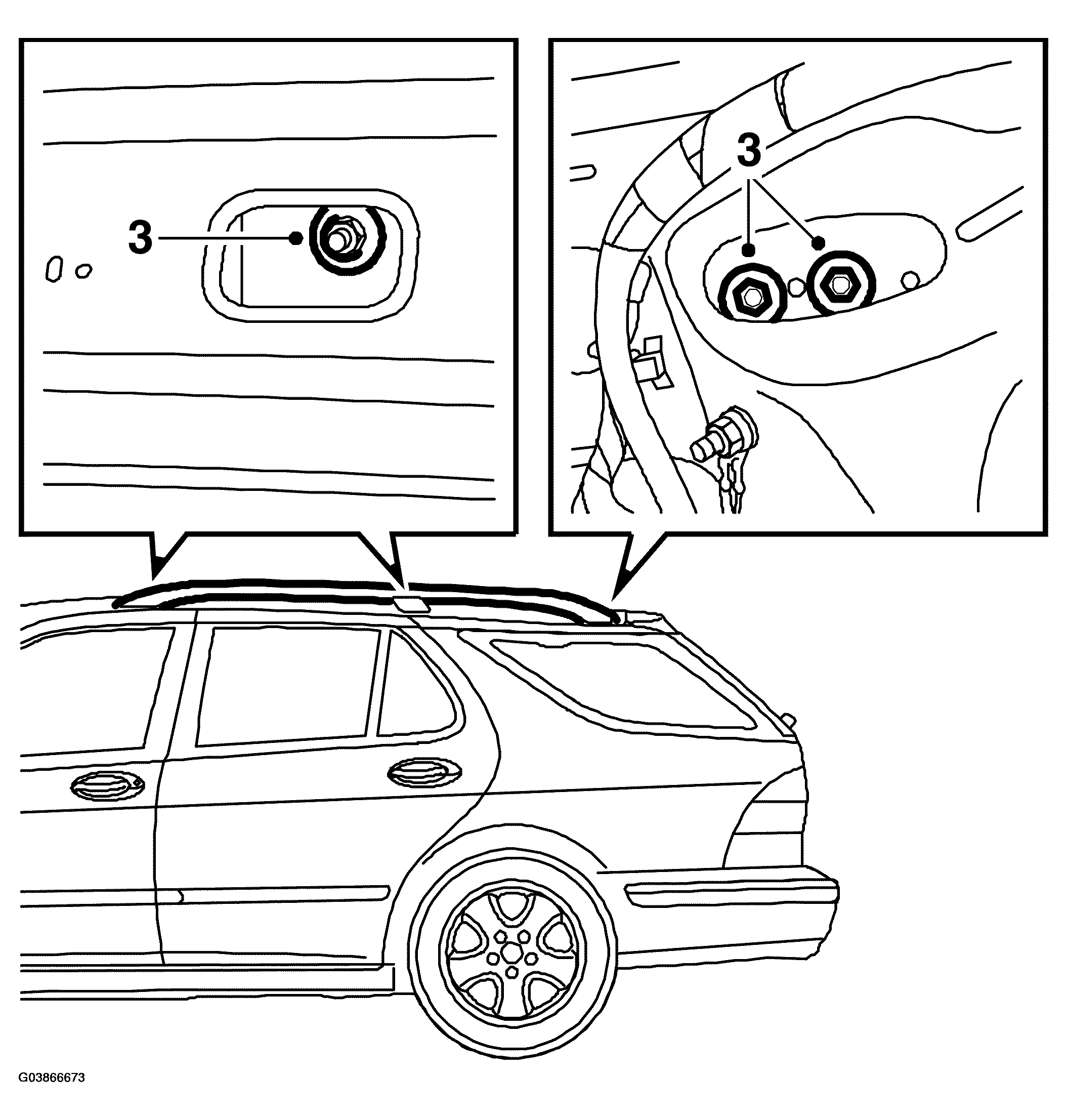

Fig 1: Illustration For Step 3
G03866673Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the metal cover plate to the roof, if it was removed.
  2. Check the seals round the screws and on the roof bar's retaining plates to make sure they are not damaged.
  3. Position the roof bar and screw it in place.

    Tightening torque: 20 Nm (14.7 lbf ft)

  4. Push up the headlining and fit it around the door weather seal mouldings.
  5. Fit the clip securing the rear edge of the roof and the cargo net lashing eyes.

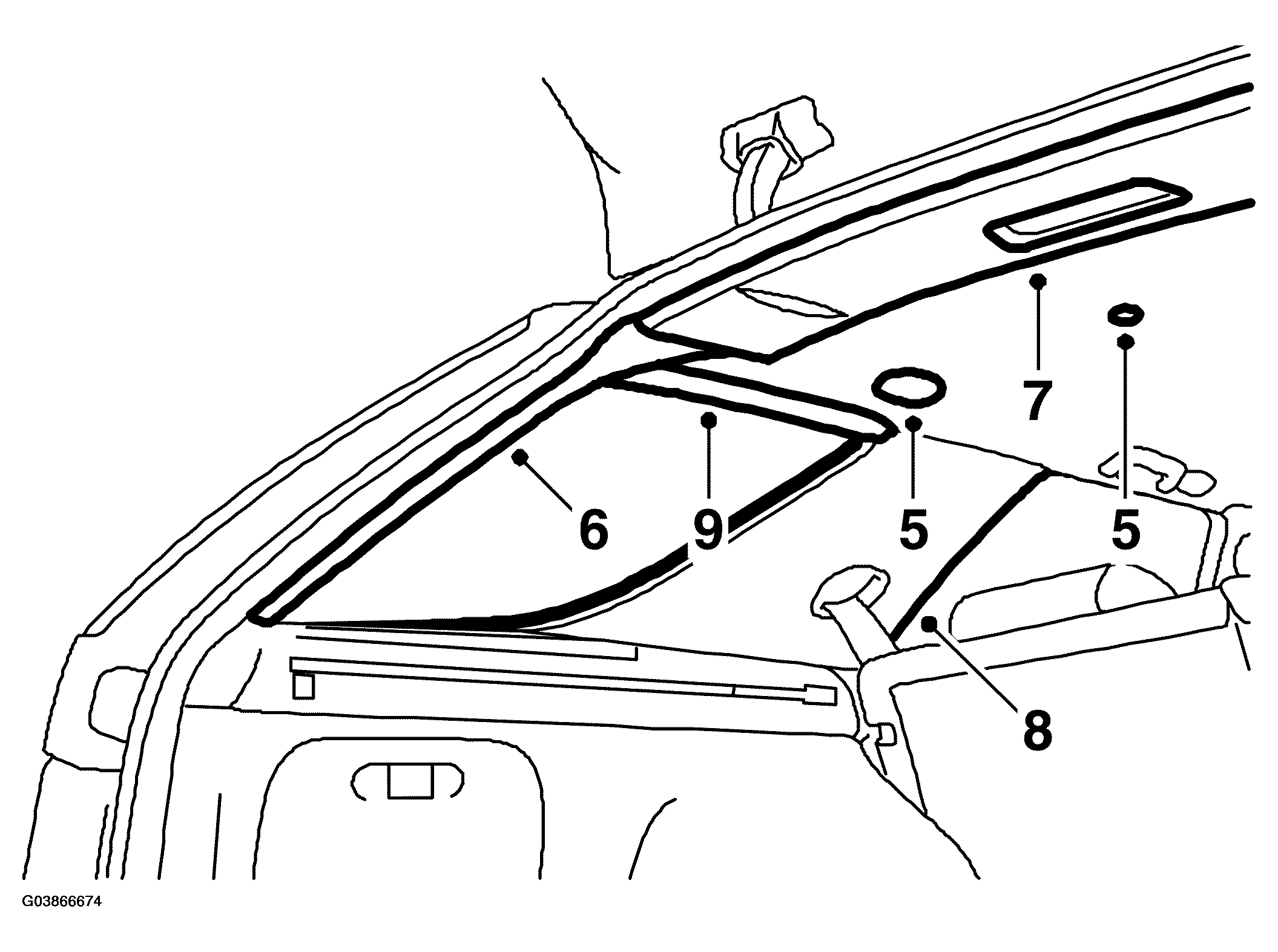

    Fig 2: Illustration For Step 5-9
    G03866674Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the D pillar trim.
  7. Press the rear roof covering in place.
  8. Press the C pillar trim into place.
  9. Fit the roof covering in place between the C and D pillars.
  10. Fit the b pillar trim.

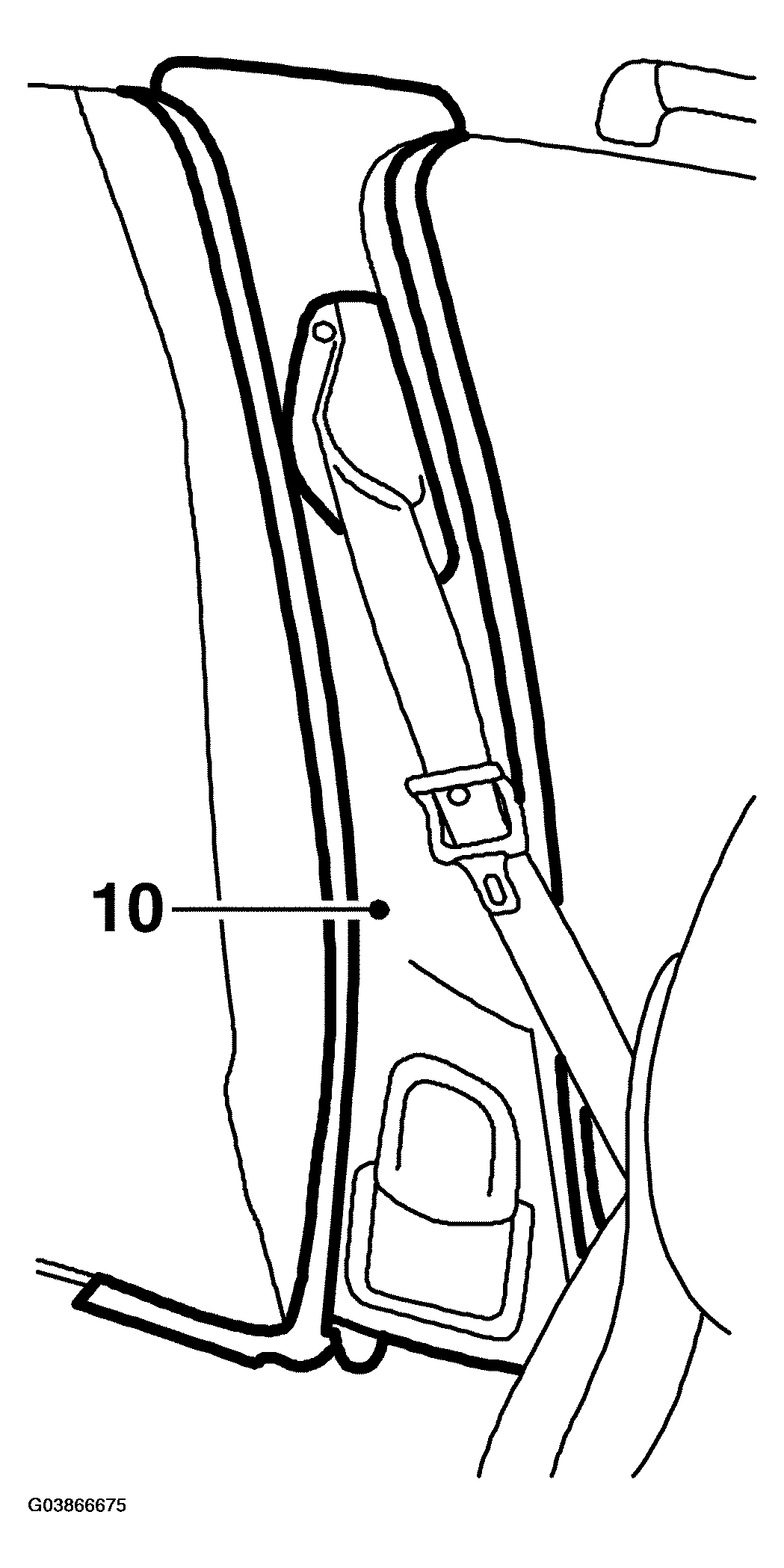

    Fig 3: Illustration For Step 10
    G03866675Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Fit the courtesy handles and roof console.

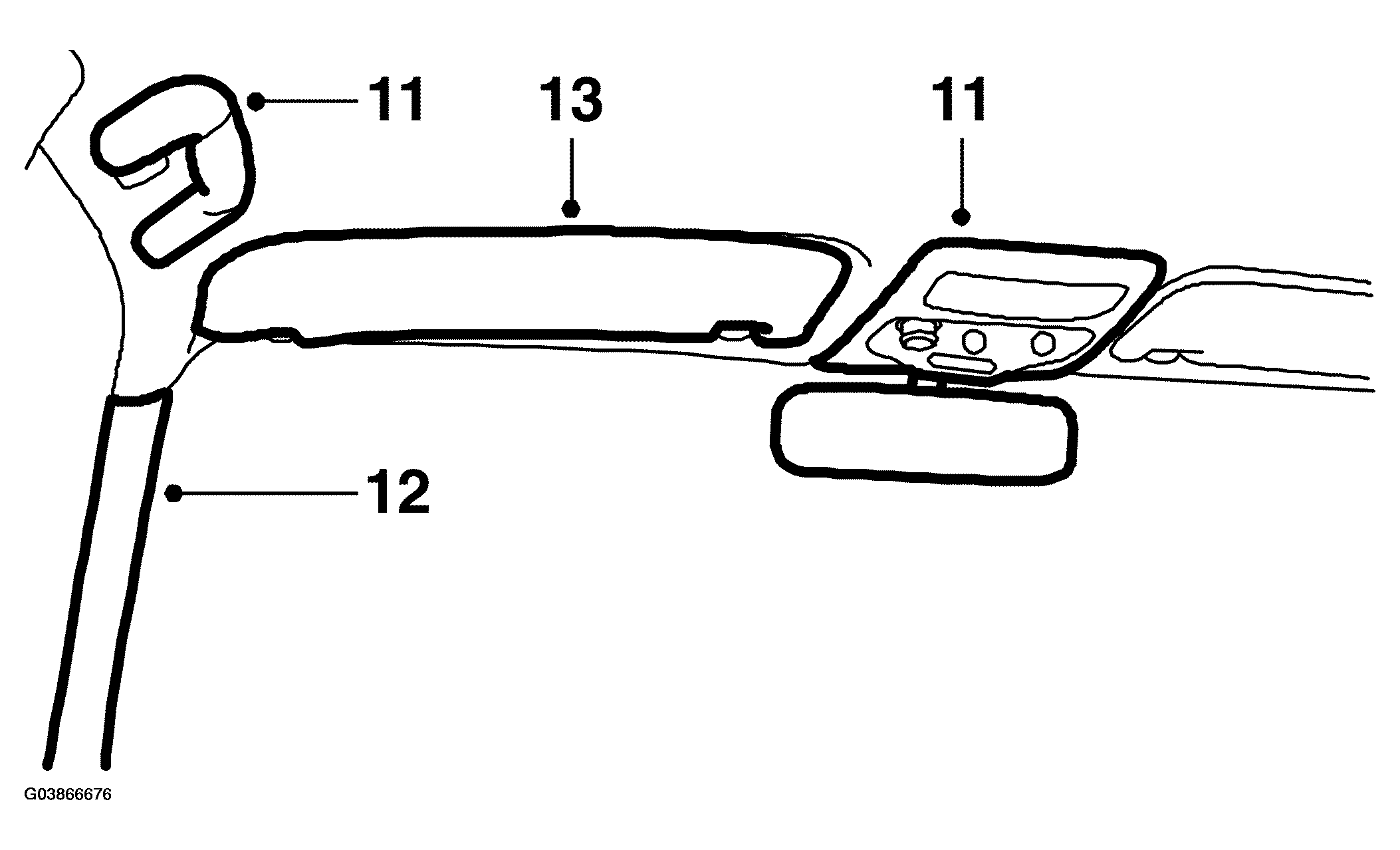

    Fig 4: Illustration For Step 11-13
    G03866676Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Fit the A pillar trim.
  13. Fit the sun visor.
