To remove

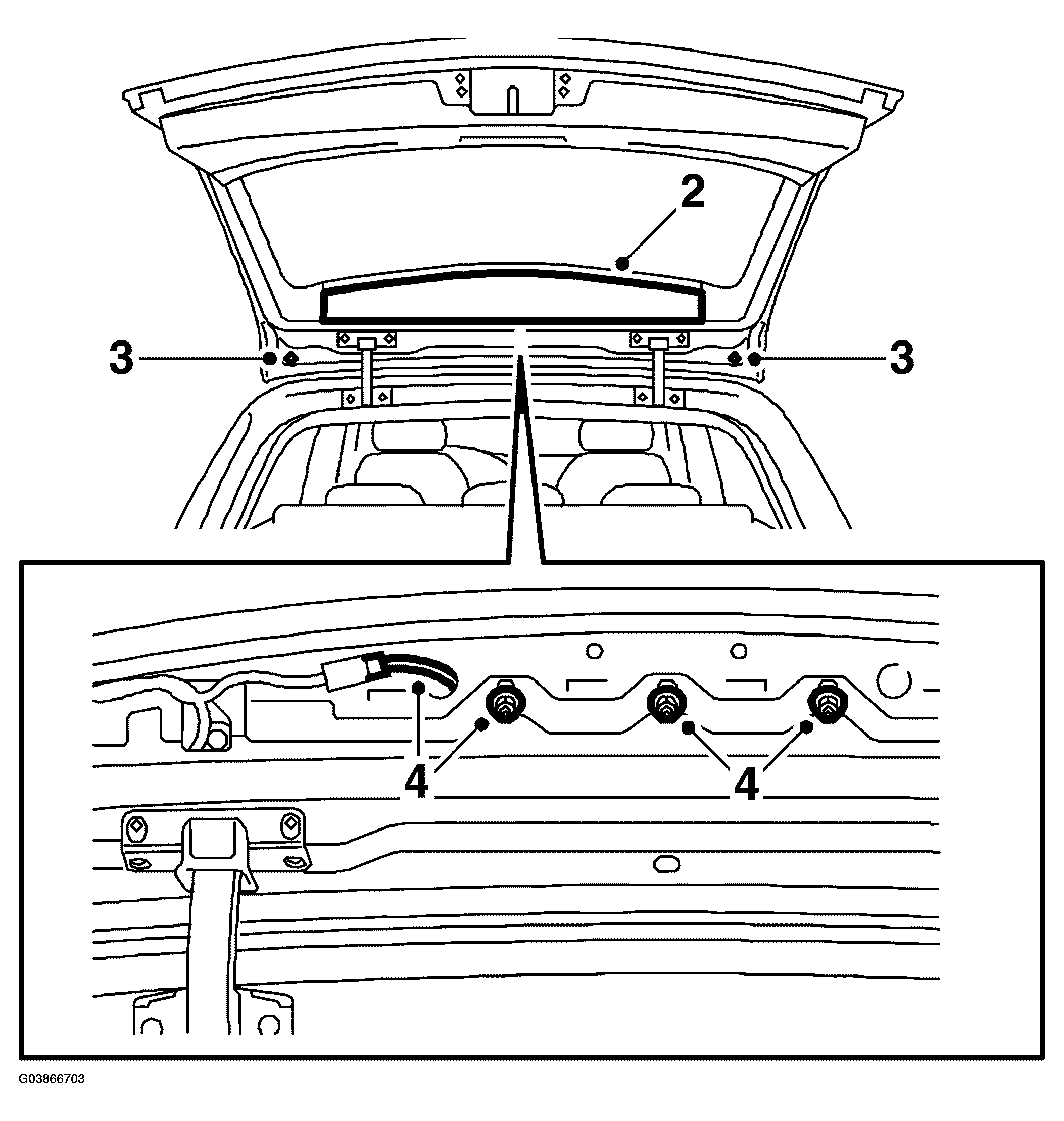

Fig 1: Illustration For Step 2-4
G03866703Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the tailgate
  2. Remove the top cover on the inside of the tailgate.
  3. Remove the 2 rubber plugs.
  4. Remove the center brake light.
  5. Remove the screws securing the spoiler.

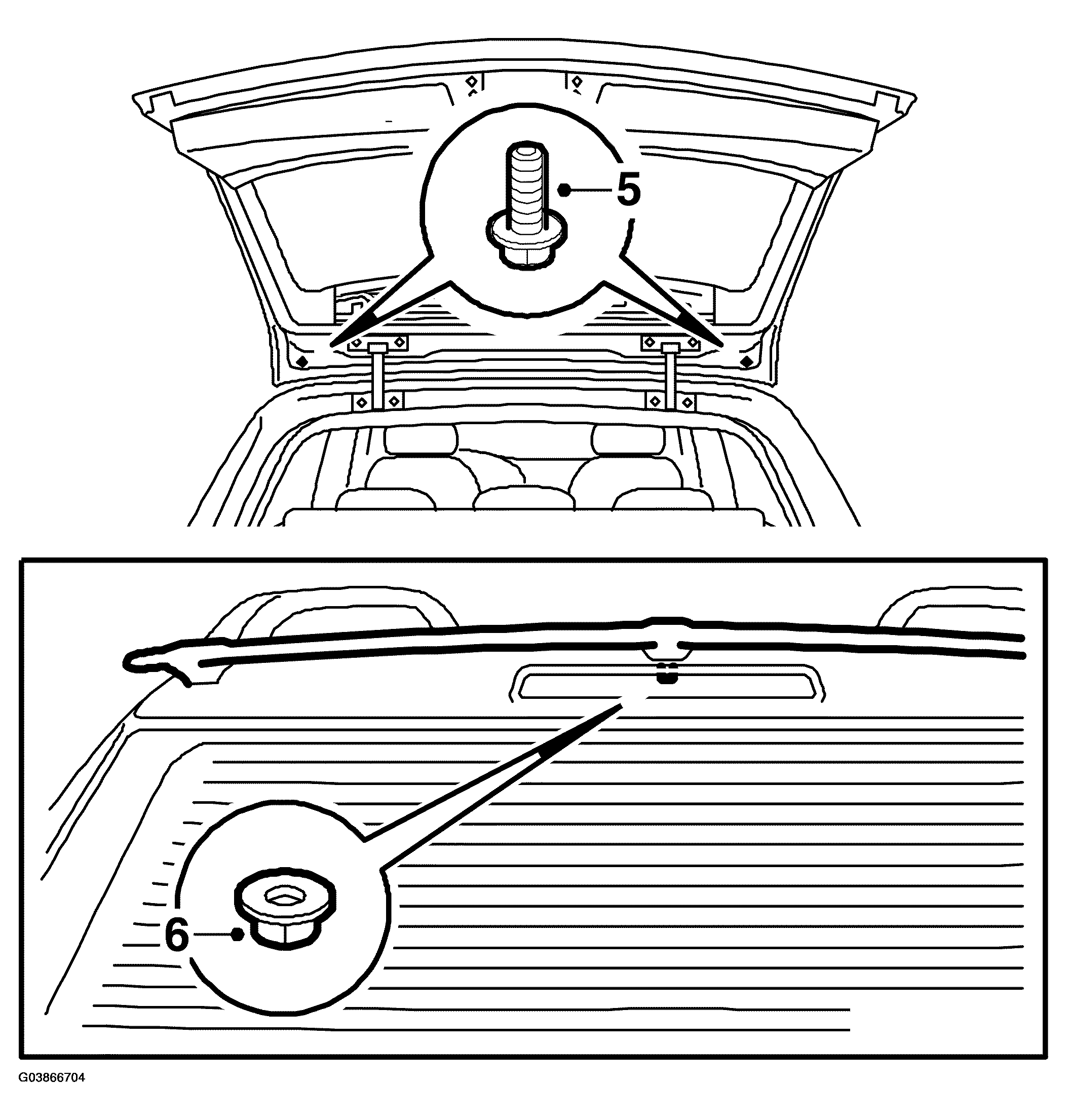

    Fig 2: Illustration For Step 5-6
    G03866704Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Close the tailgate.

    Remove the center nut. The nut can be reached through the space left by the brake light.

  7. Carefully lift off the spoiler.
