Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior - 9-5 >> Adjustment / Replacement >> Rear spoiler, 4D >> To fit

To fit

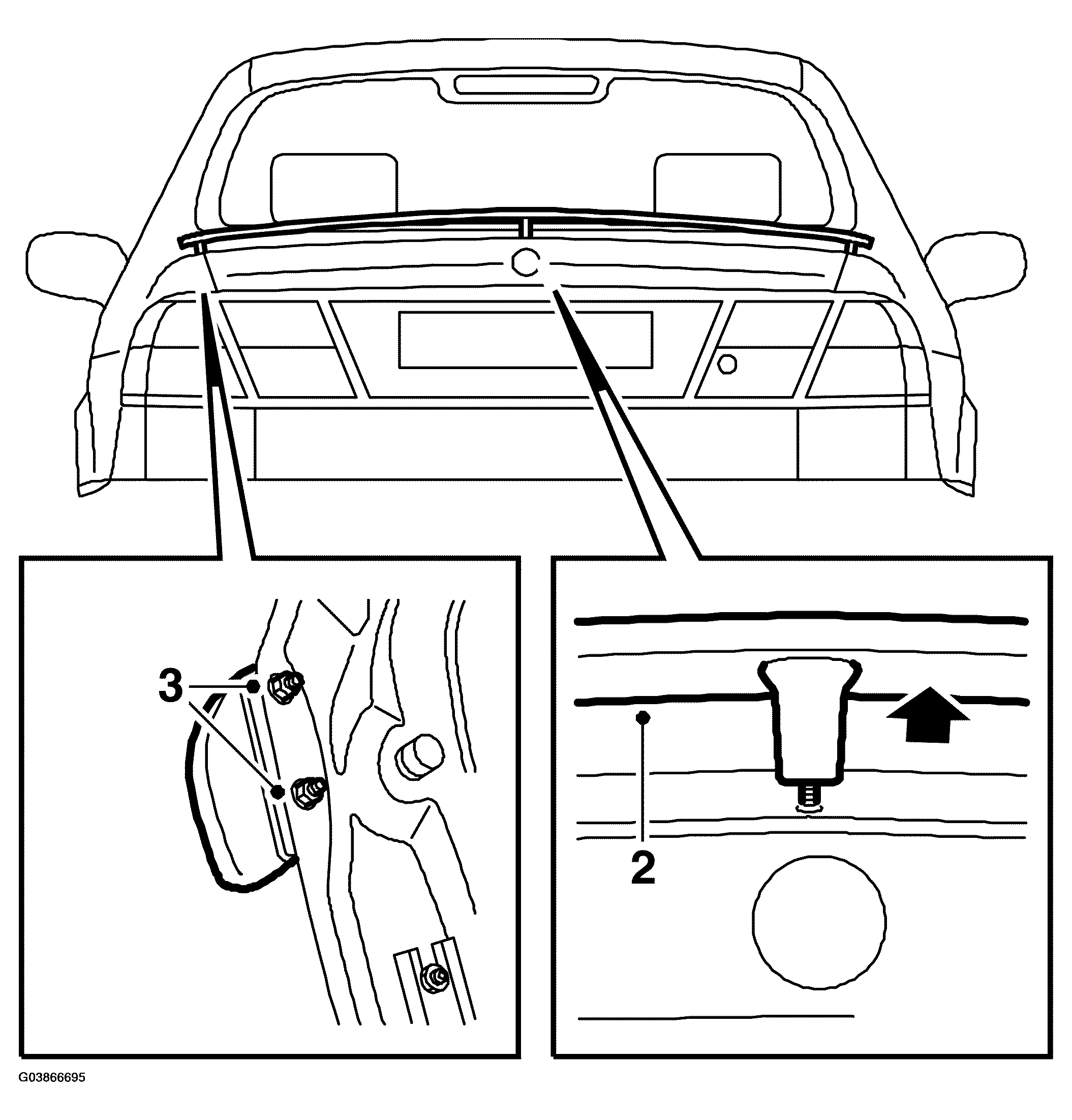

Fig 1: Illustration For Step 2-3
G03866695Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit new double-sided adhesive seals on the spoiler if necessary.
  2. Carefully position the spoiler so that the screws fit in the holes.
  3. Open the boot lid and tighten the 5 nuts on the spoiler.
  4. Fit the boot lid trim and close the boot.
