To remove

  1. Use 82 93 474 Removal tool.
  2. First remove the corner decor mouldings by carefully inserting the tool under the corner of the moulding. Then pull the clips from the bumper shell.

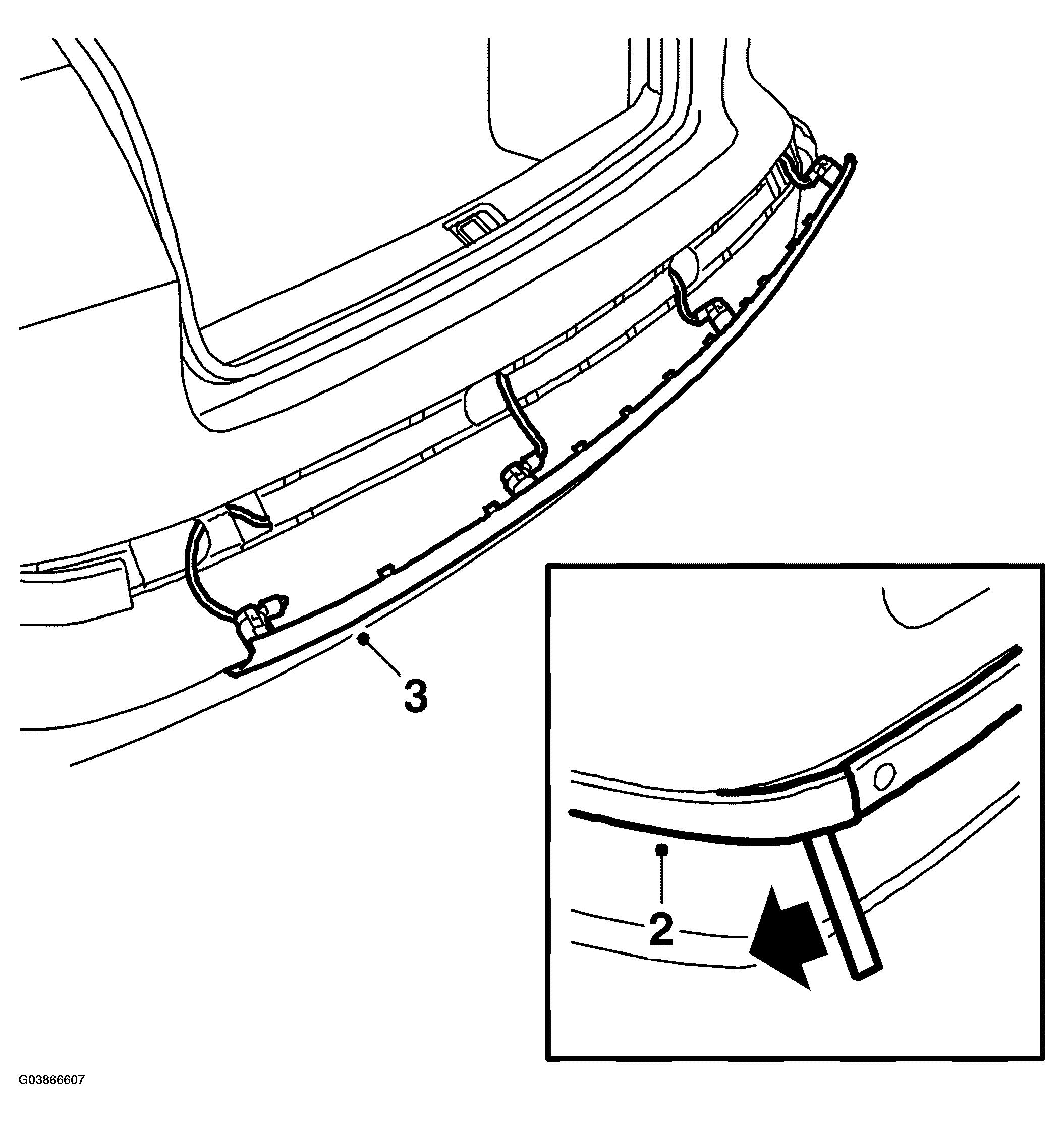

    Fig 1: Illustration For Step 2-3
    G03866607Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Carefully insert the tool under the corner of the moulding.

    Carefully pull the clips from the bumper shell.

    NOTE: For cars equipped with Saab Parking Assistance (SPA):
    • Pull out the clips a little at a time to the unplug the connectors.
