To fit

NOTE: For cars equipped with Saab Parking Assistance (SPA):
  • Attach the connectors.
  1. Fit the protective moulding by using the guide lug to position it correctly.

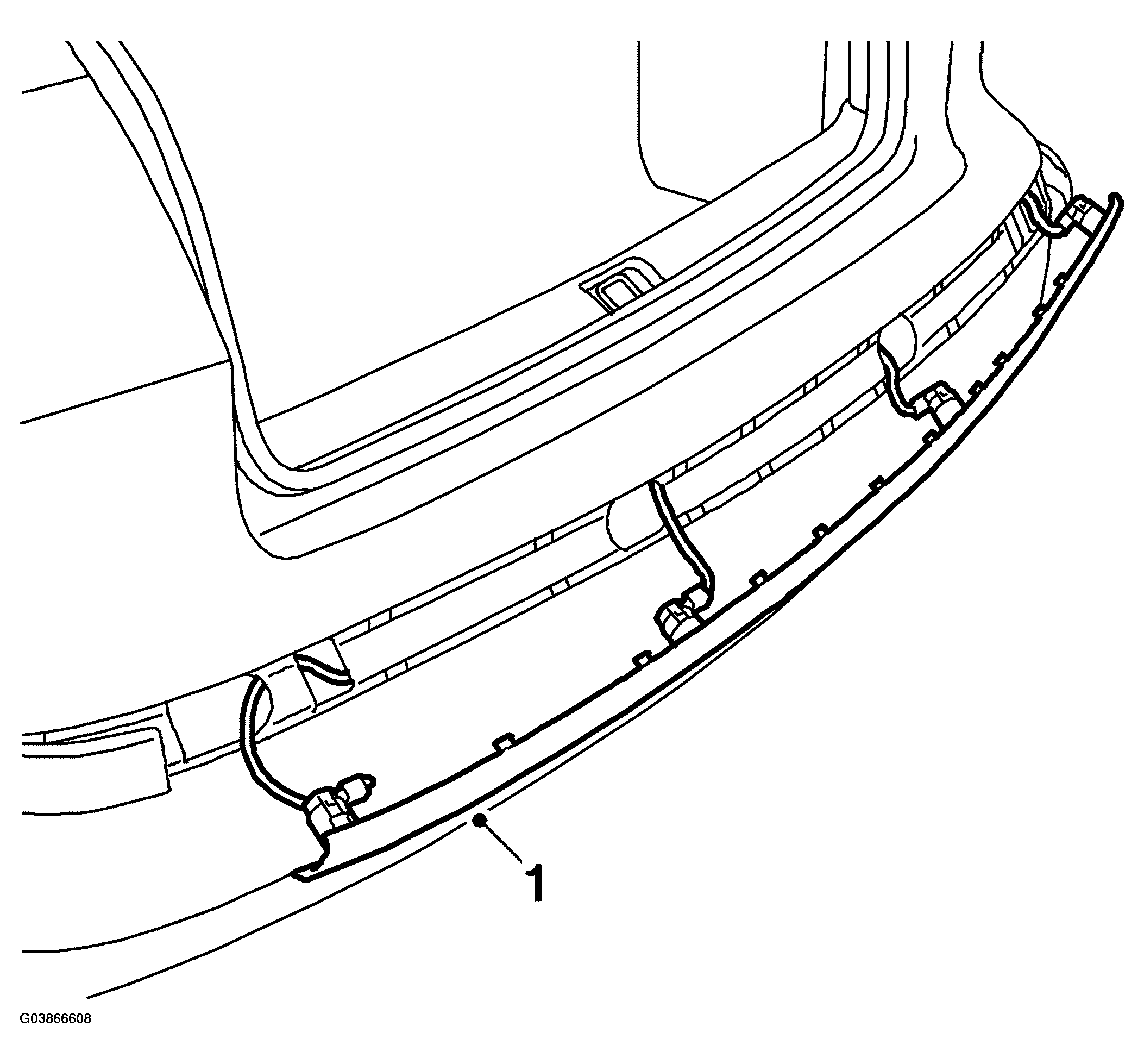

    Fig 1: Illustration For Step 1
    G03866608Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press in the moulding.
  3. Fit the corner mouldings by using the guide lug to position them correctly. Press in the mouldings.

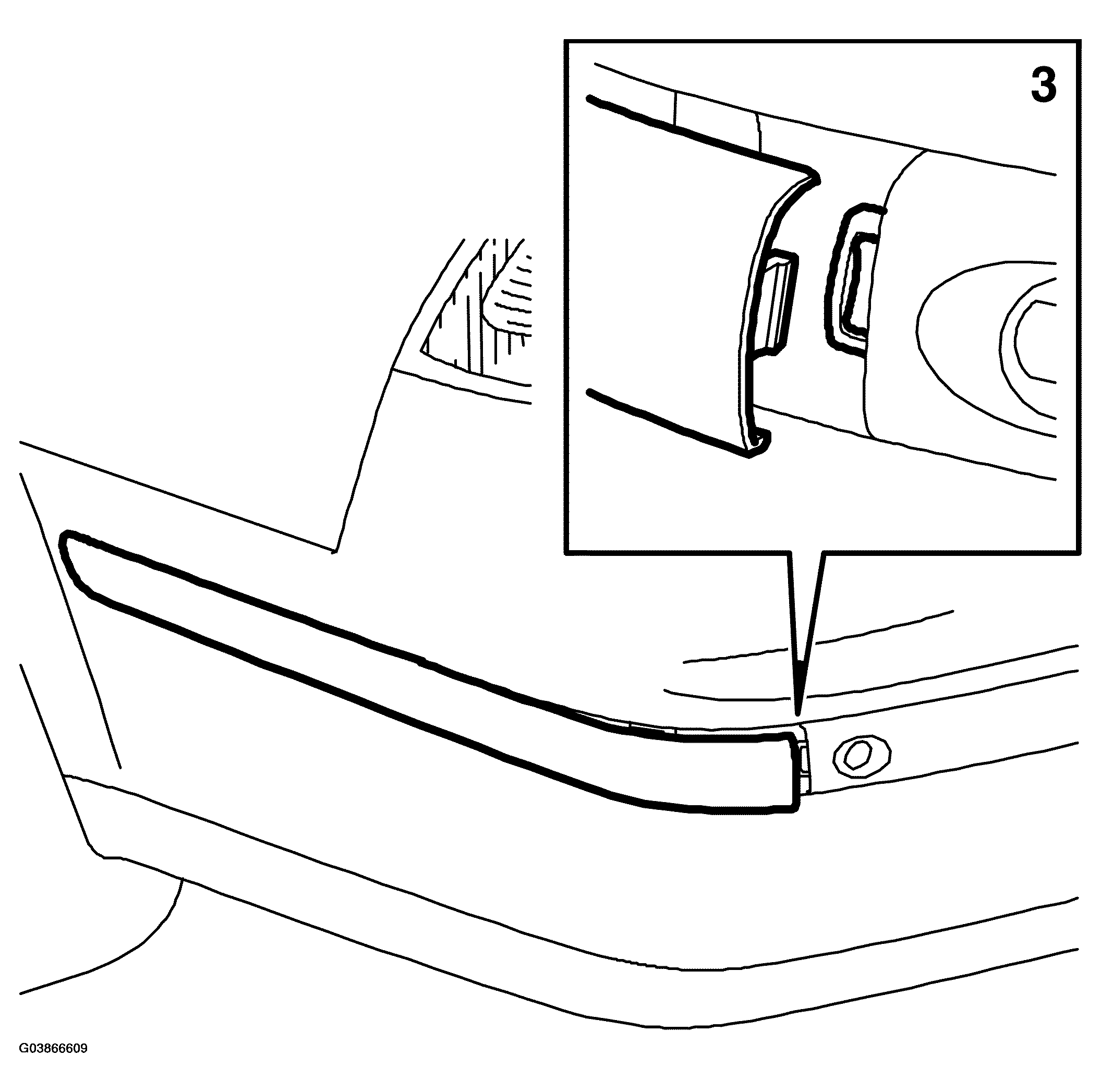

    Fig 2: Illustration For Step 3
    G03866609Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Make sure that the clips are secure in the bumper shell.
