To fit

NOTE: For cars equipped with Saab Parking Assistance (SPA):

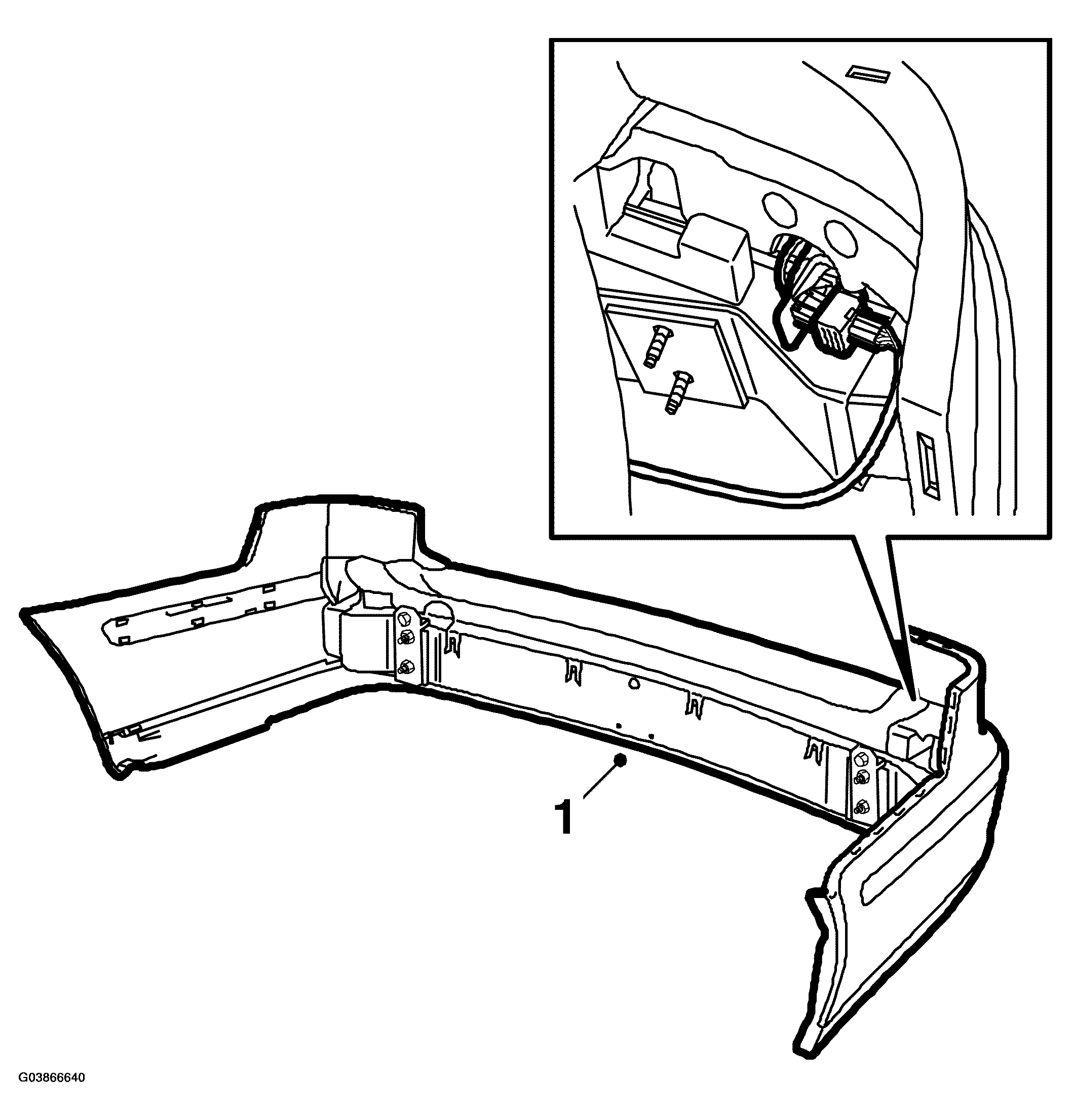

Place the bumper in position and press it over the edge of the wheel housing and the rear wing. Make sure that the clips sit correctly.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

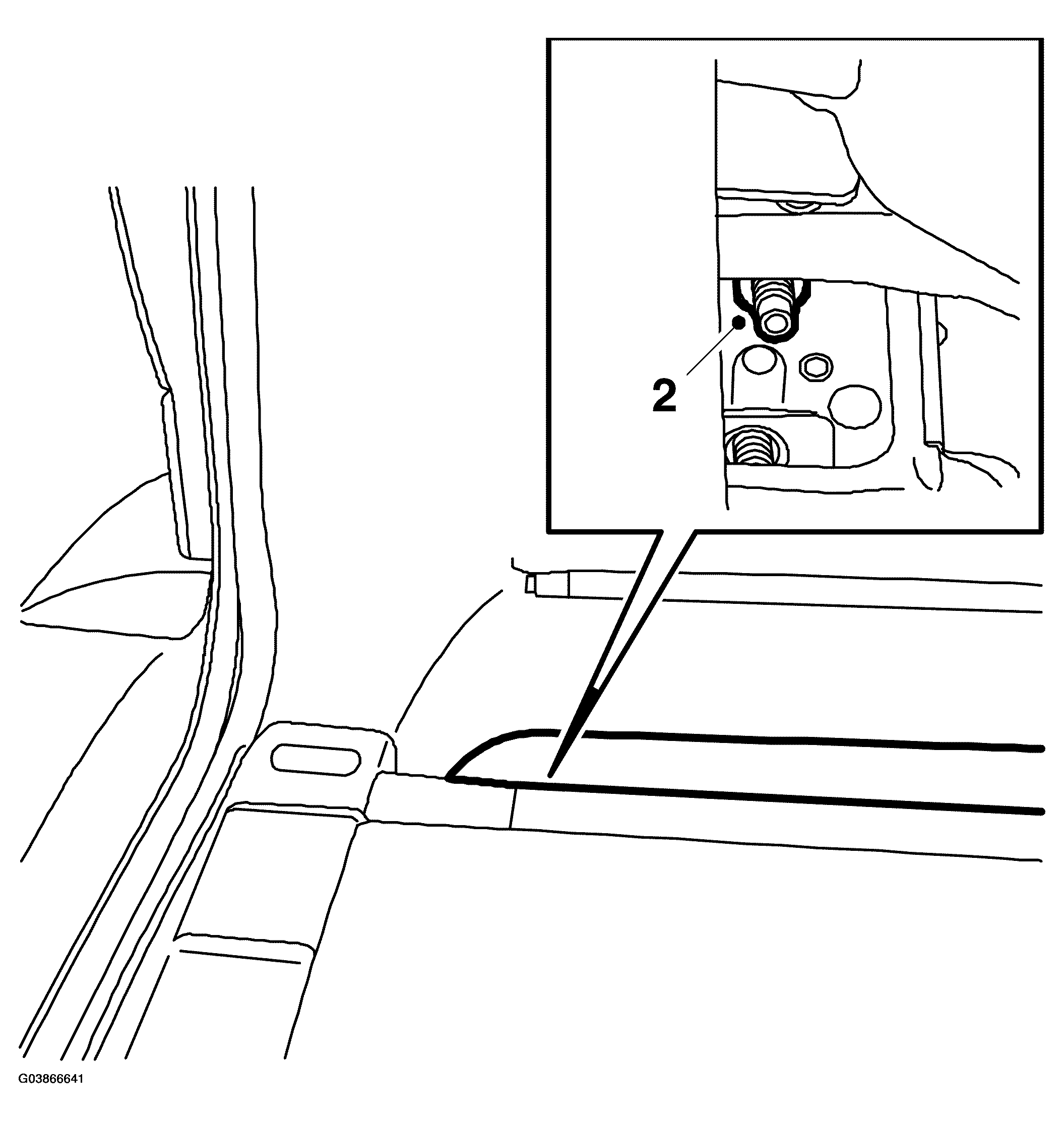

Put the nuts in place that hold the bumper.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

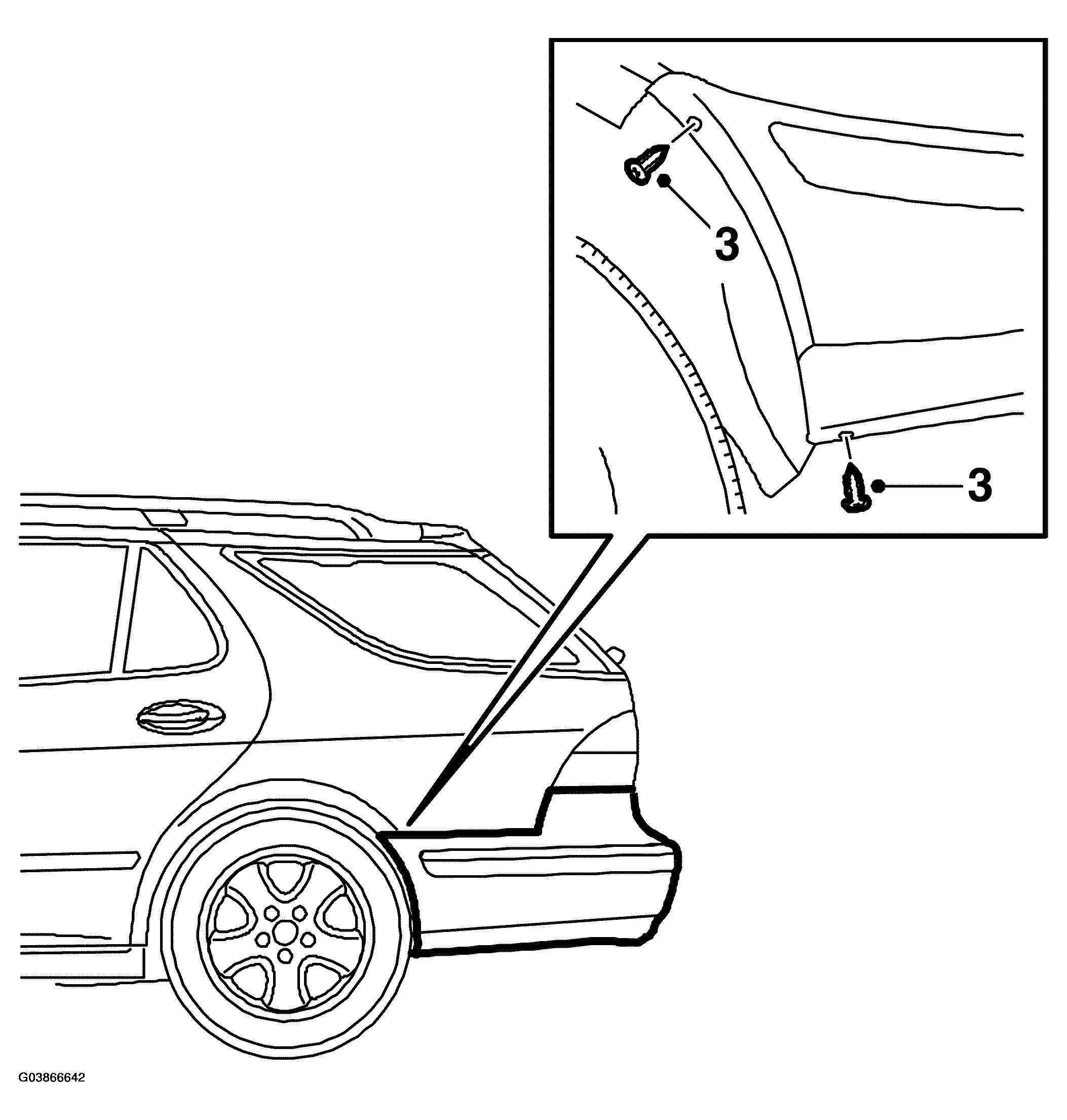

Position the bumper correctly and tighten the screws in the edge of the wheel housing.

Fig 3: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Tighten the nuts holding the bumper.

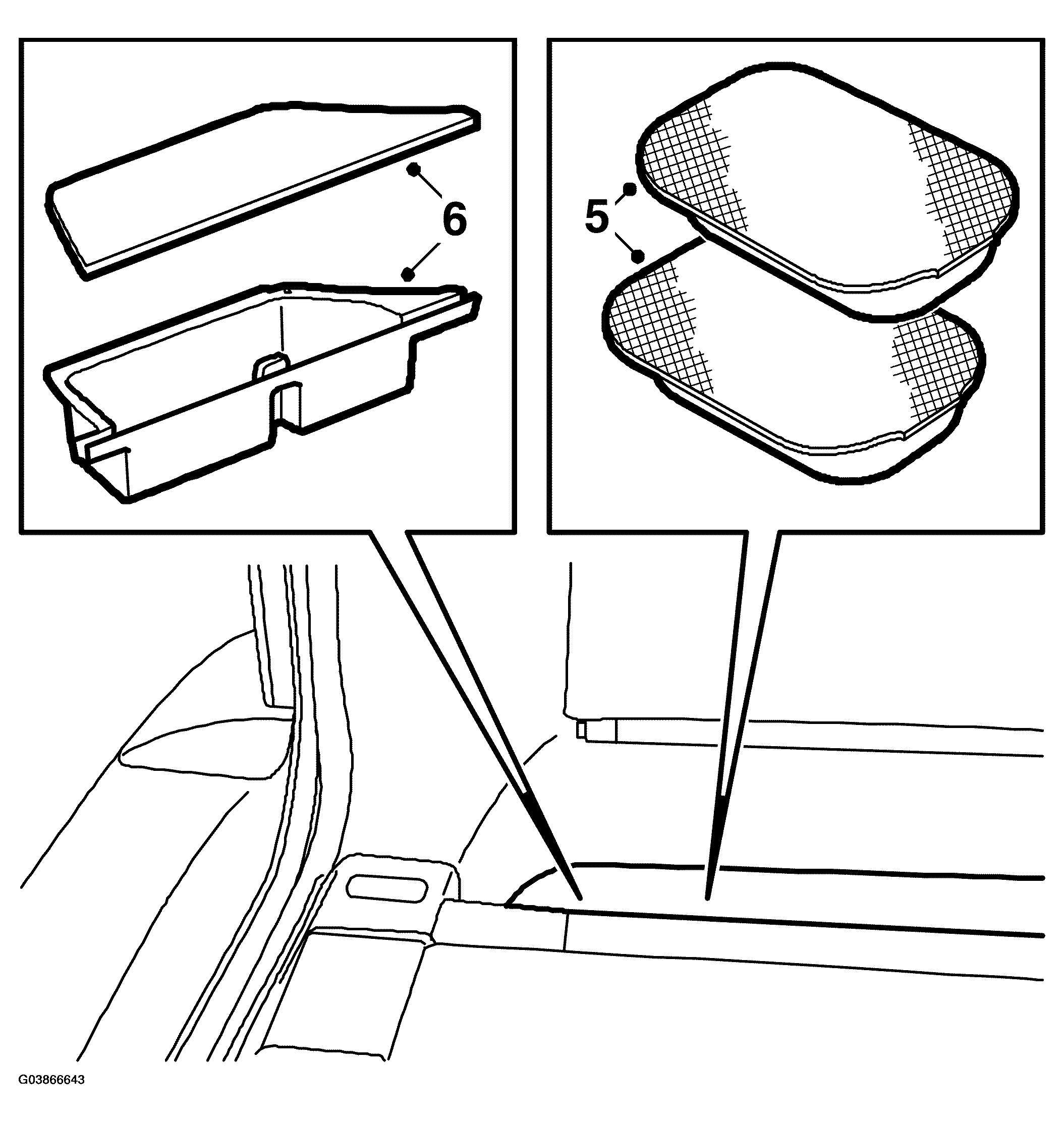

Fit the new insulation pads.

Fig 4: Illustration For Step 5-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the storage compartments and their covers on both sides.
Close the tailgate and check the fit of the bumper against the tailgate.
