To fit

  1. Place the towbar cable connection in the bumper cavity.
  2. Place the bumper in position and press it over the edge of the wheel housing. Make sure that the clips sit correctly.

    For cars equipped with Saab Parking Assistance (SPA):  Attach the connector.

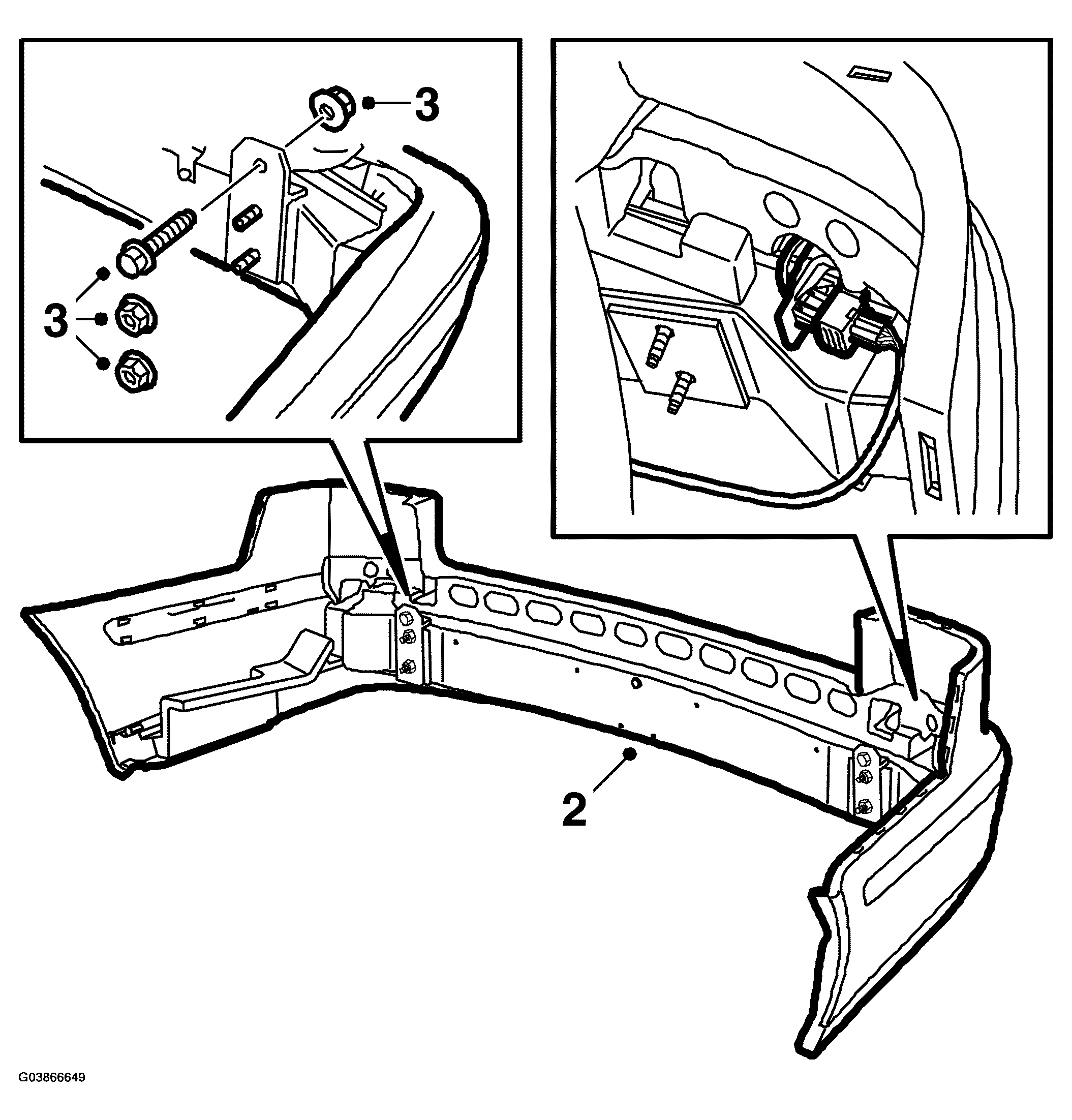

    Fig 1: Illustration For Step 2-3
    G03866649Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the nuts and bolts holding the bumper in place.
  4. Fit the screws in the edge of the wheel housing.

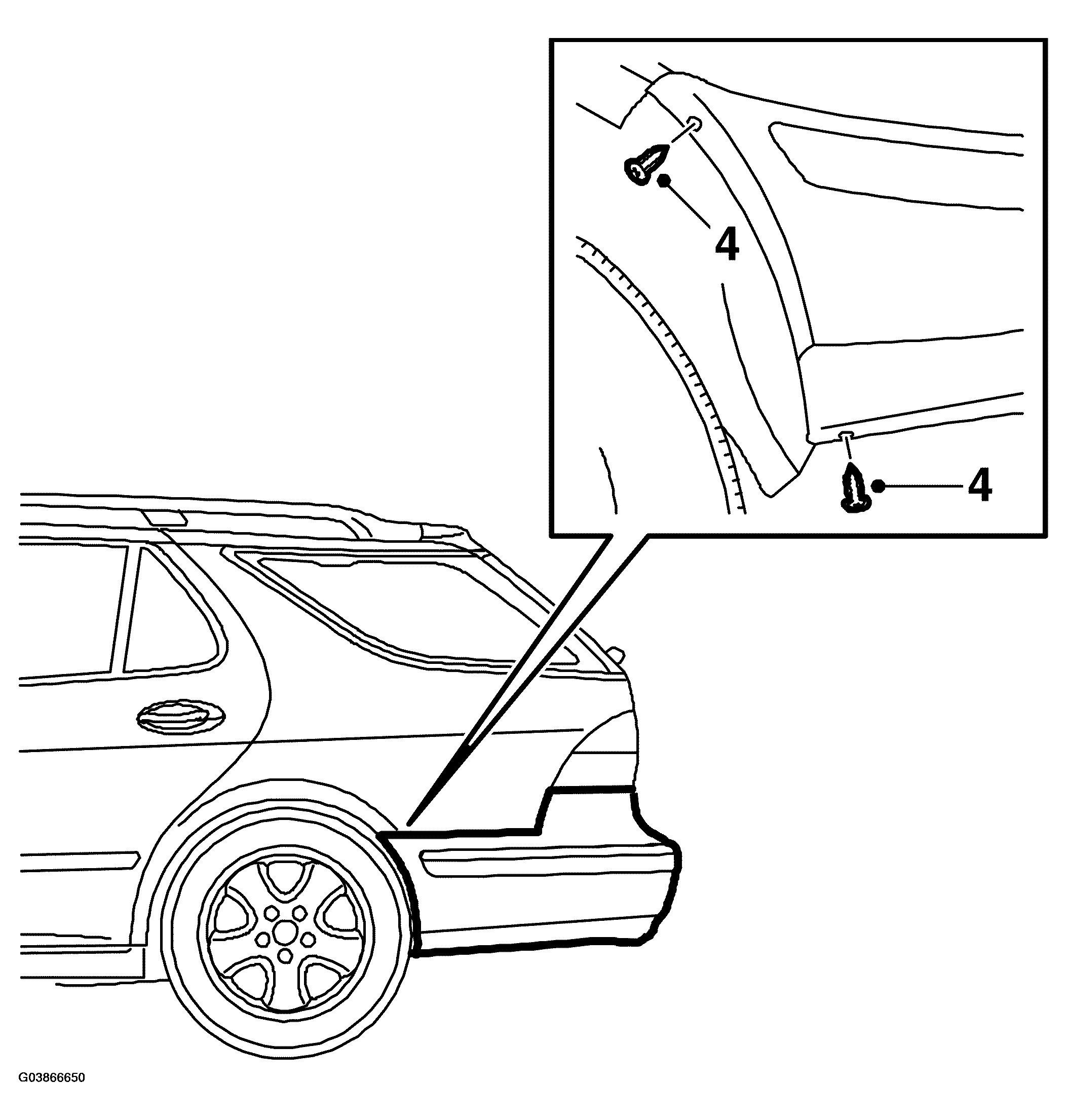

    Fig 2: Illustration For Step 4
    G03866650Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Attach the towbar connector. Fit the bolts and cable tie holding the towbar on the body.

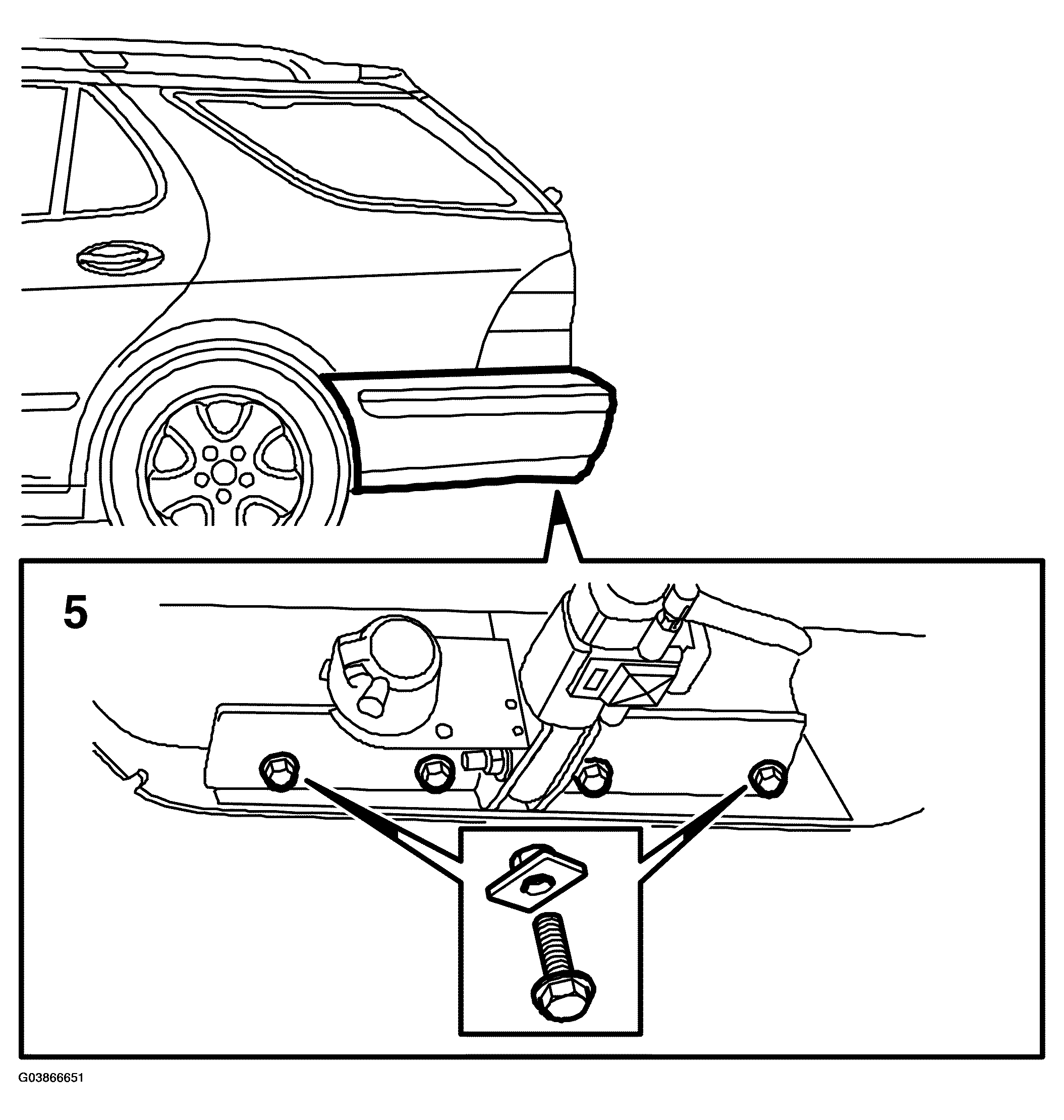

    Fig 3: Installing Towbar Bolts
    G03866651Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the new insulation pads.

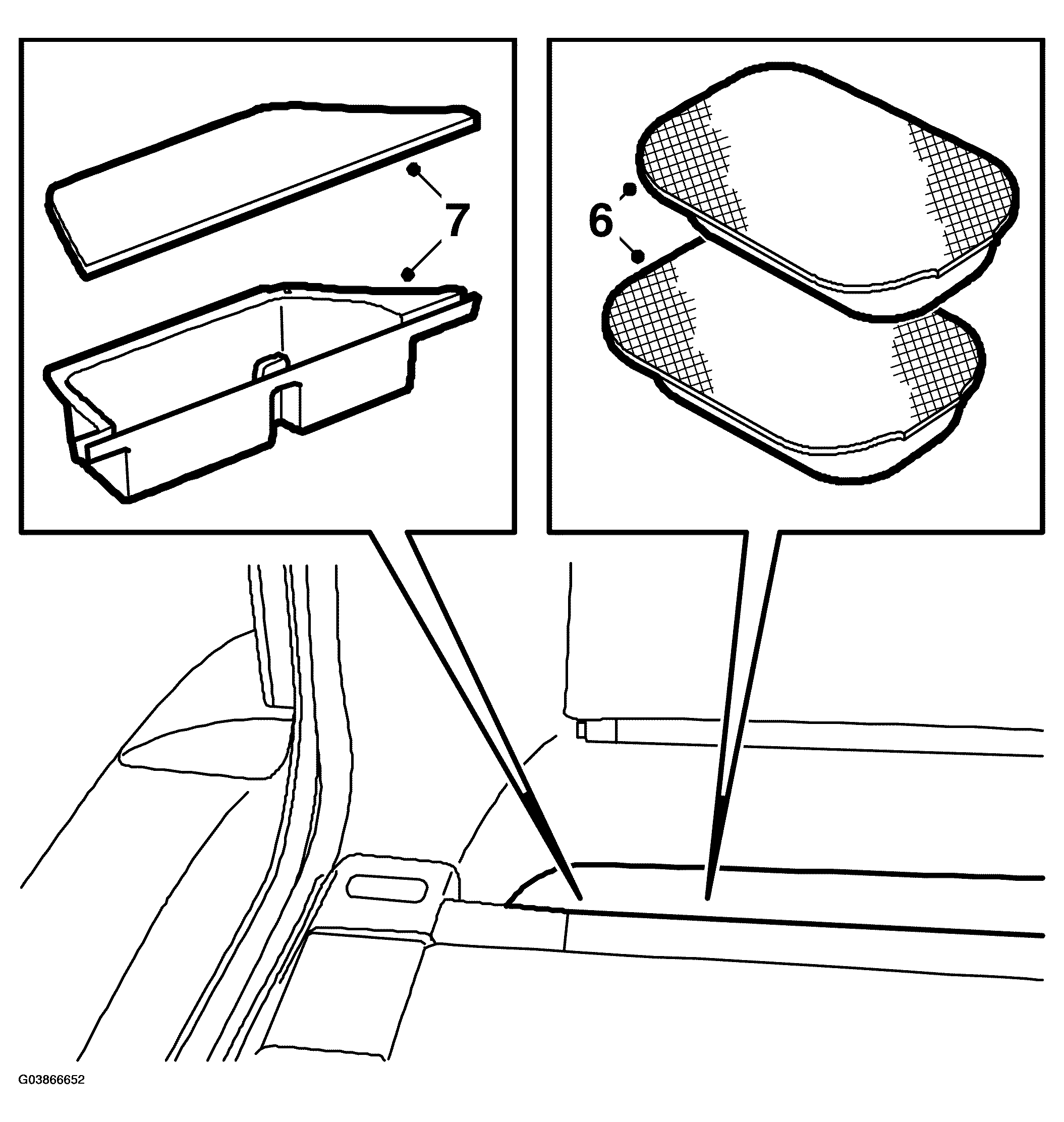

    Fig 4: Illustration For Step 6-7
    G03866652Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit the storage compartments and their covers.
  8. Fit the upper protective shell. See REPLACEMENT OF REAR UPPER PROTECTIVE SHELL 5D
  9. Close the tailgate and check the fit of the bumper against the tailgate.
