To fit

  1. For cars equipped with Saab Parking Assistance (SPA):  Attach the connector.

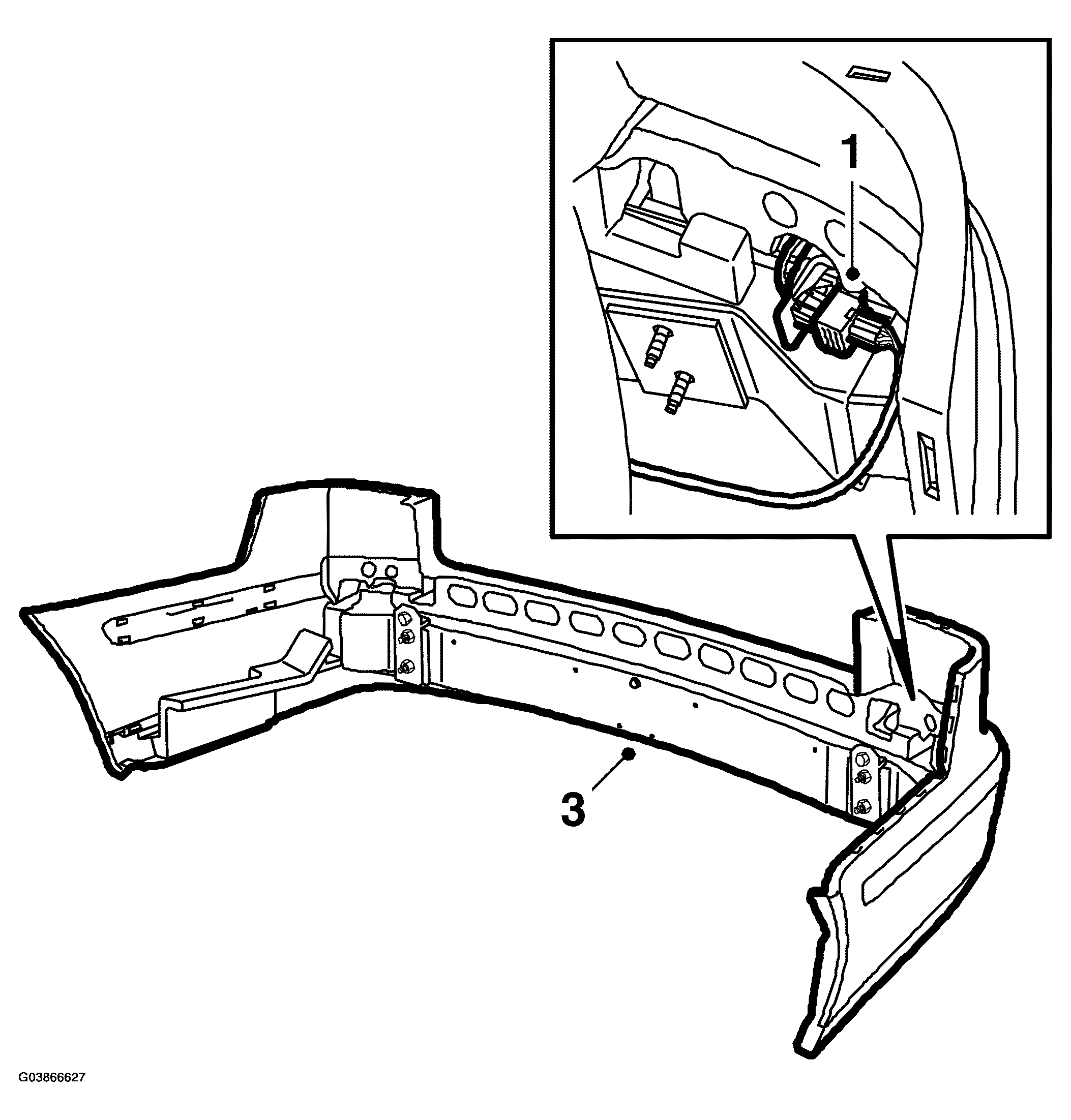

    Fig 1: Illustration For Step 1-3
    G03866627Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Place the towbar connector in the bumper cavity.
  3. Place the bumper in position and press it over the edge of the wheel housing. Make sure that the clips sit correctly.
  4. Fit the bumper's nuts and bolts.
  5. Fit the screws in the edge of the wheel housing.

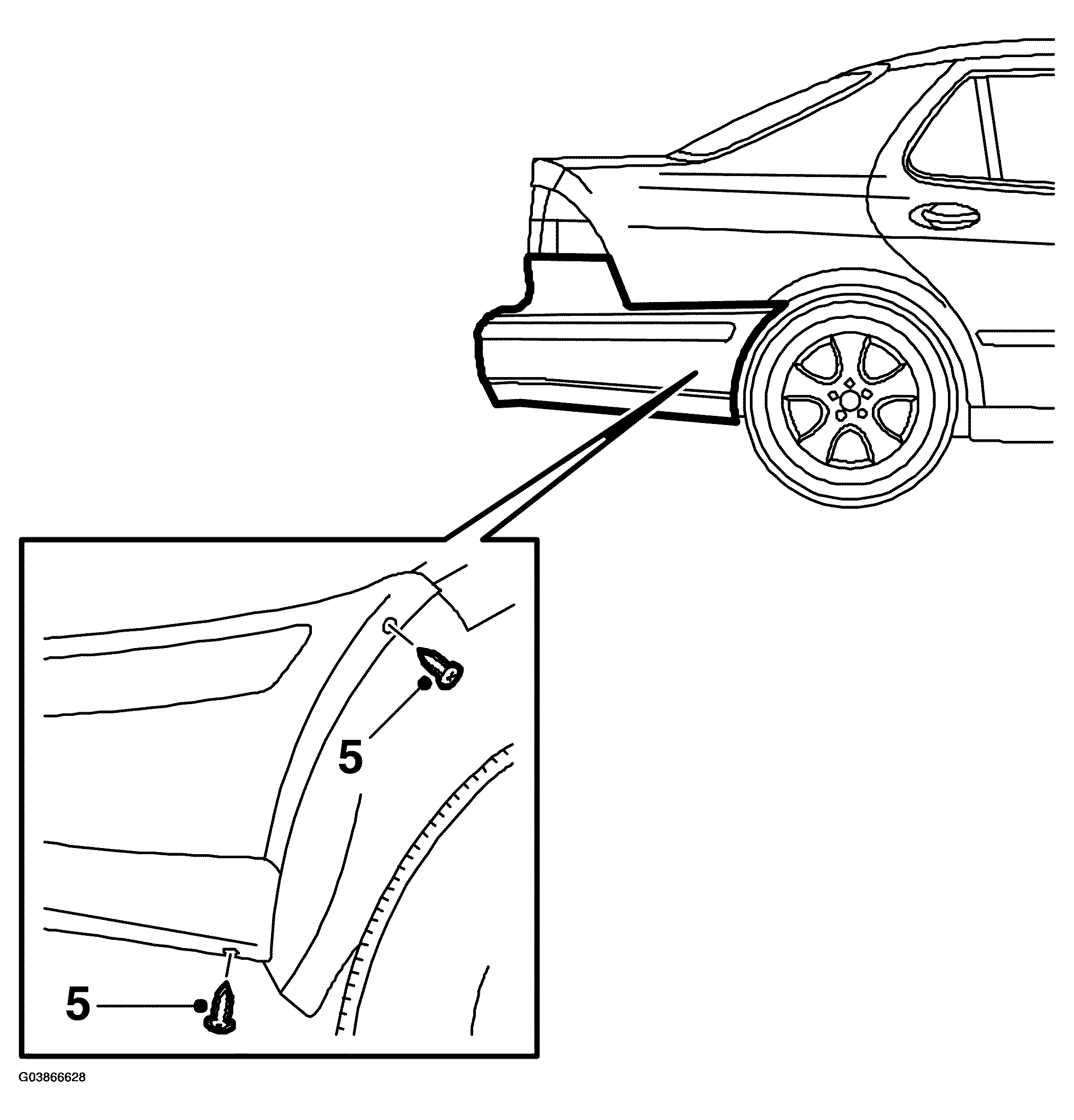

    Fig 2: Illustration For Step 5
    G03866628Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the bolts and nut plates that secure the towbar to the body.

    Attach the towbar connector.

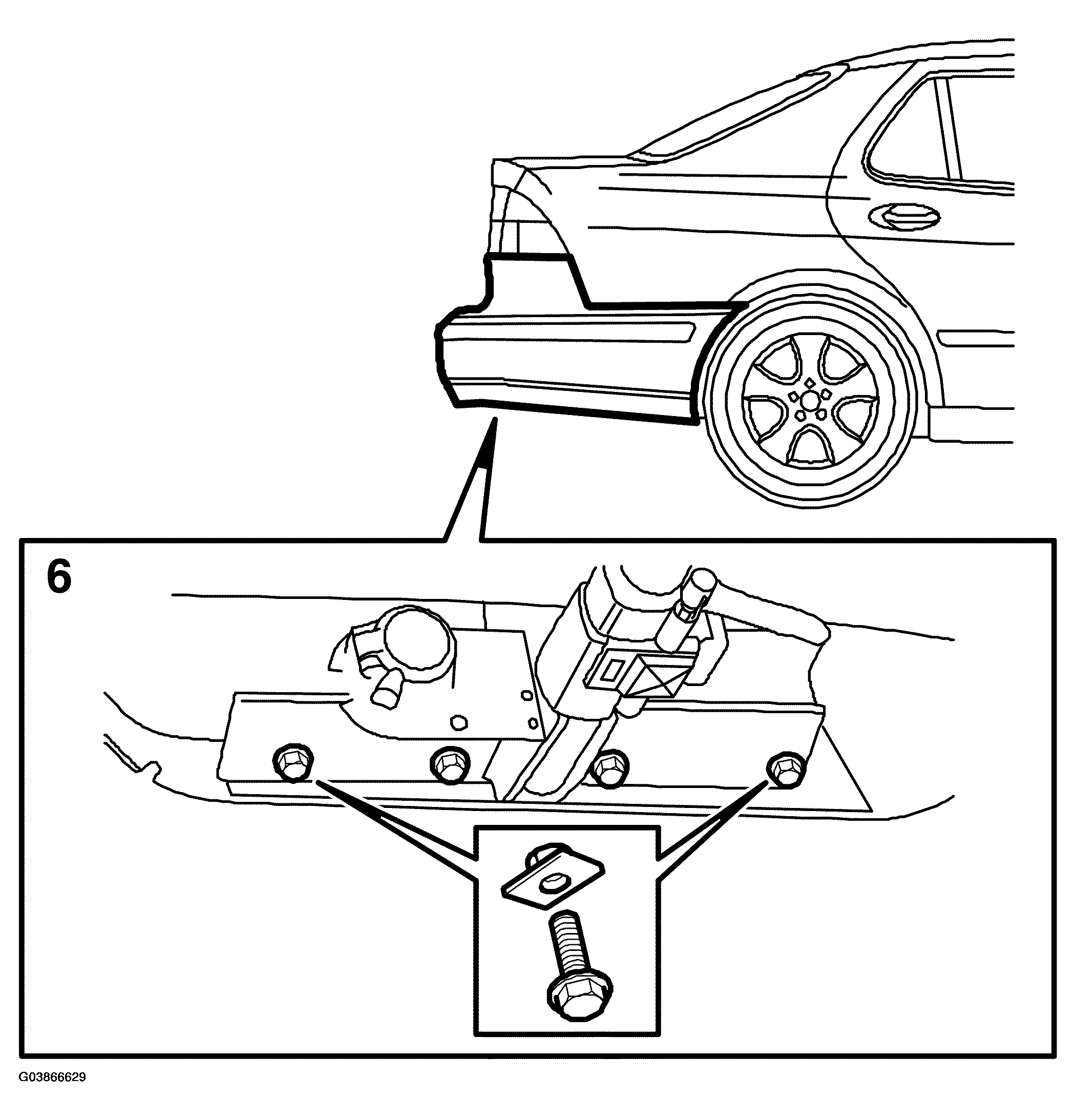

    Fig 3: Installing Towbar Bolts
    G03866629Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit new seals and fold down the luggage compartment carpet.
  8. Fit the scuff plate.

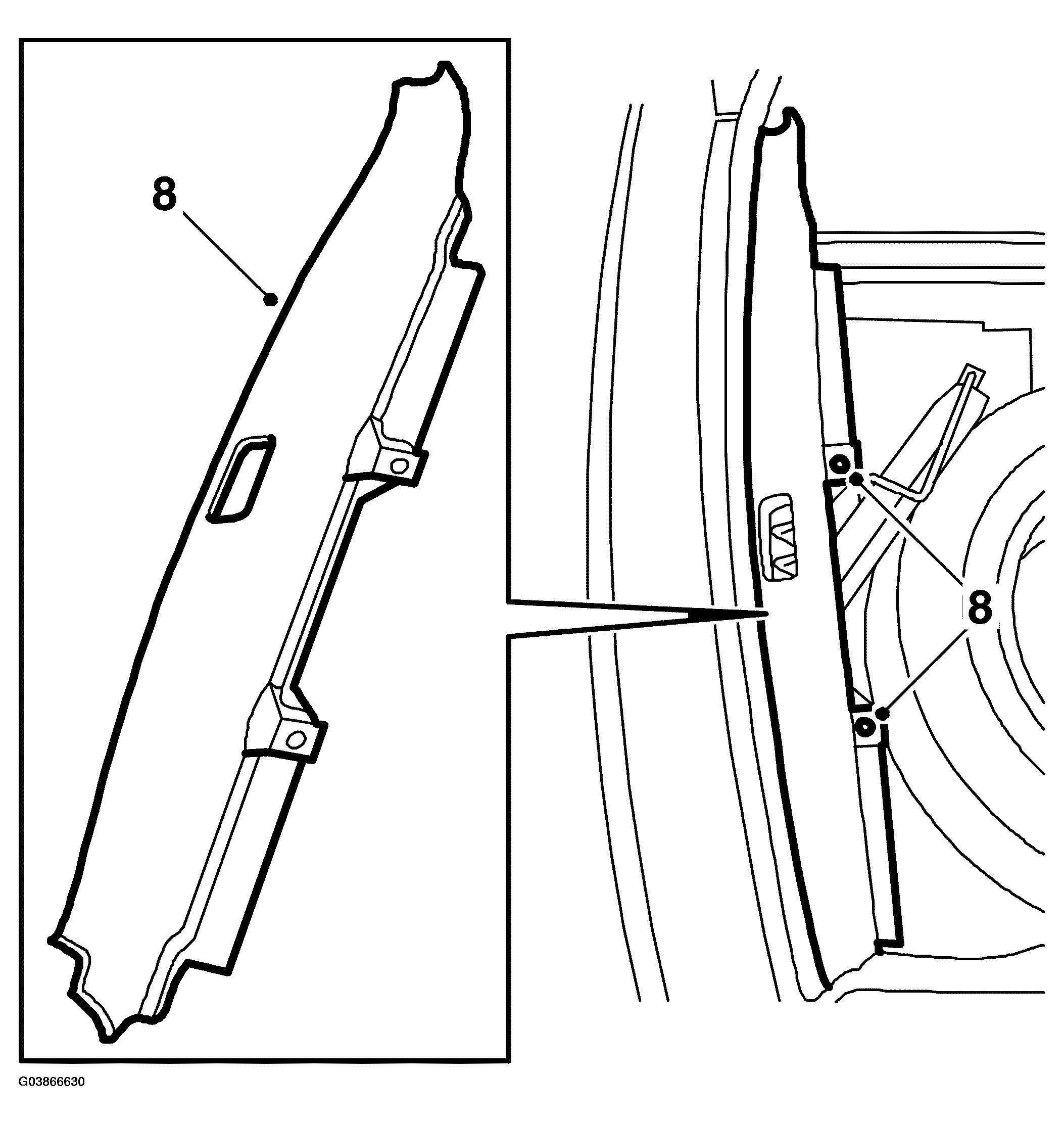

    Fig 4: Illustration For Step 8
    G03866630Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Fit the luggage compartment carpet.
  10. Fit the protective mouldings.

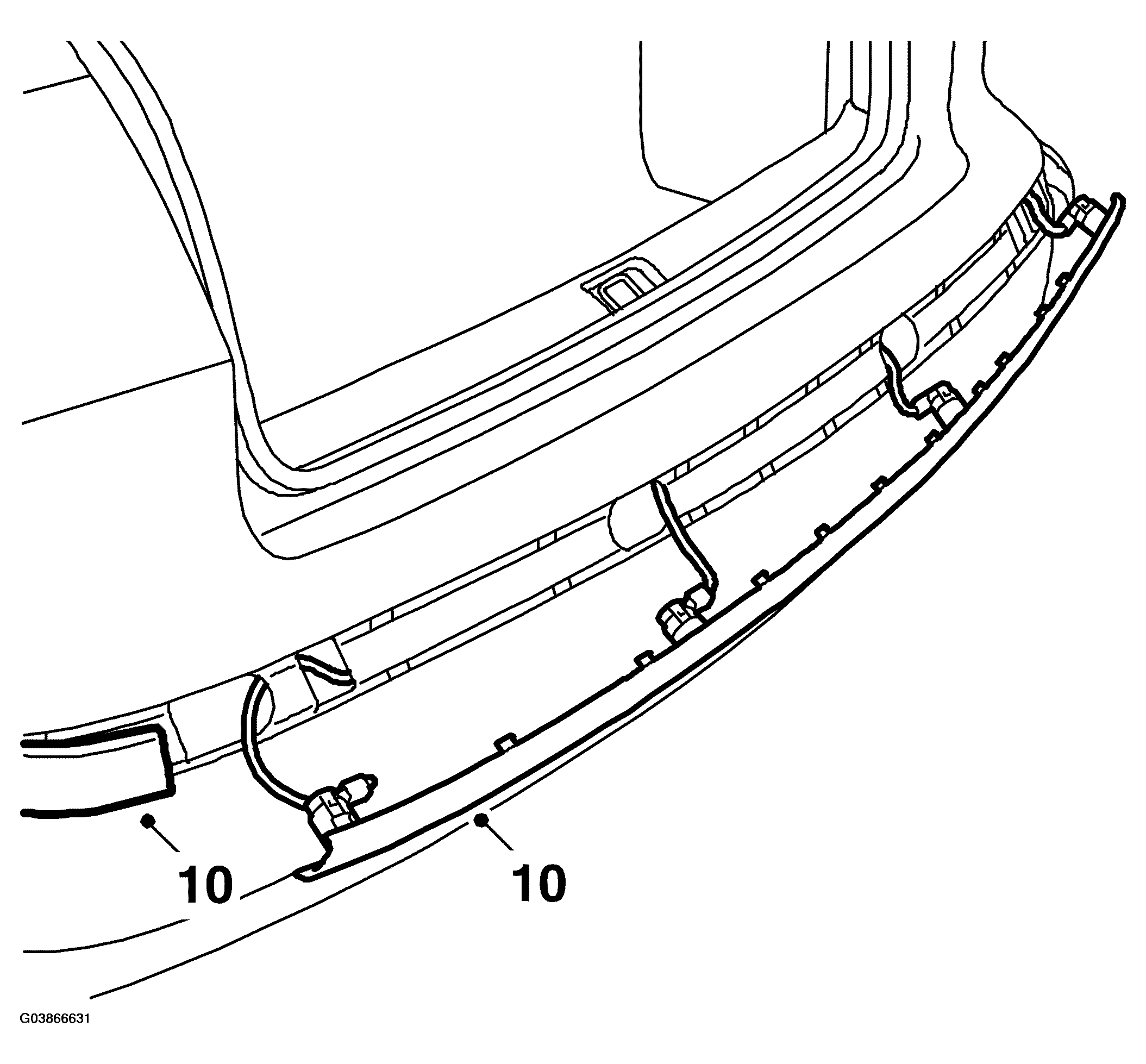

    Fig 5: Illustration For Step 10
    G03866631Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Close the boot lid and check the bumper fit.
