To remove

  1. Remove the bumper. See REAR BUMPER 4D
  2. Loosen the nuts from inside the luggage compartment.

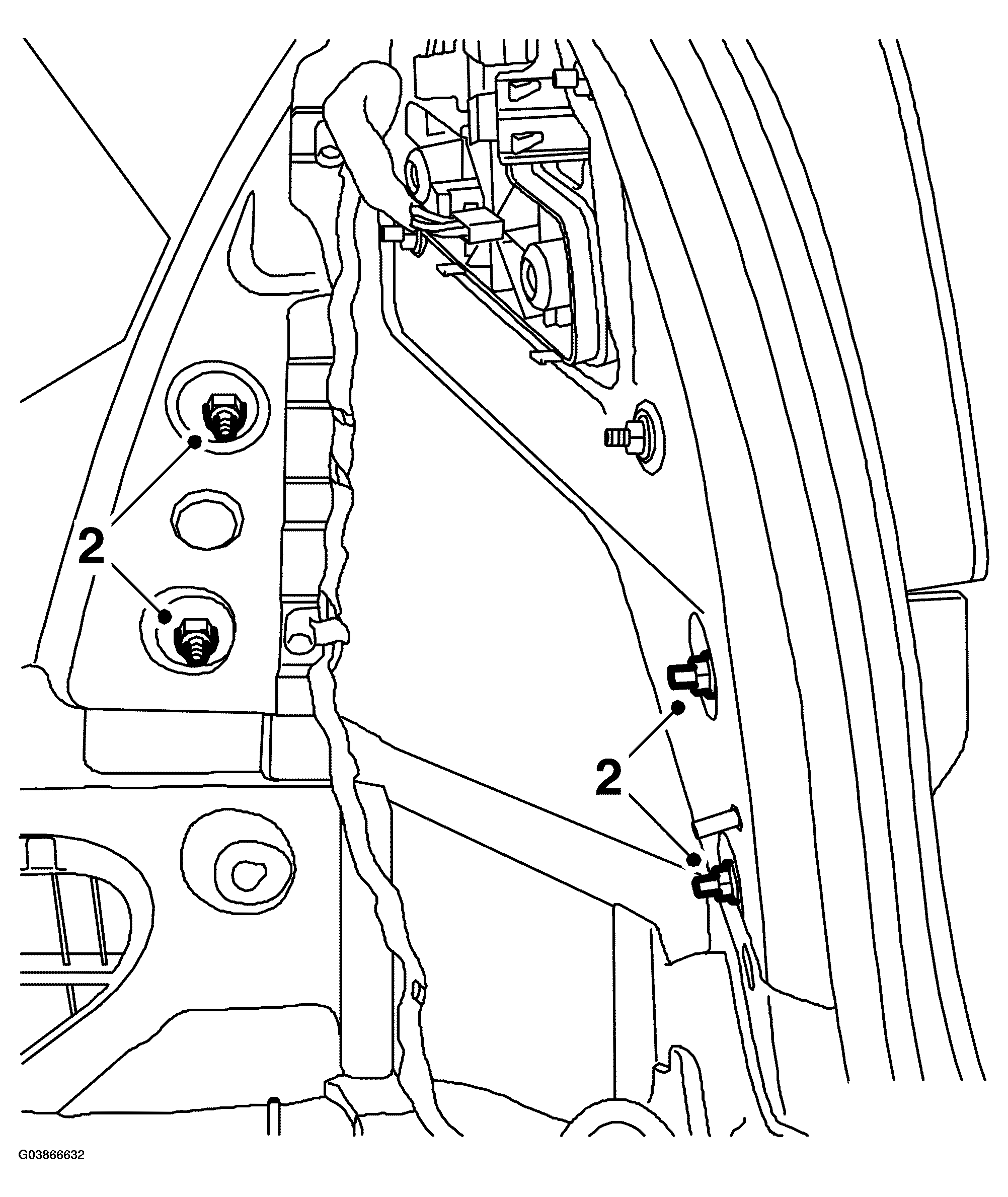

    Fig 1: Illustration For Step 2
    G03866632Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the bracket.
    Fig 2: Illustration For Step 3
    G03866633Courtesy of SAAB-SCANIA OF AMERICA, INC.
