To fit

  1. Wedge the bracket in behind the rear light cluster.

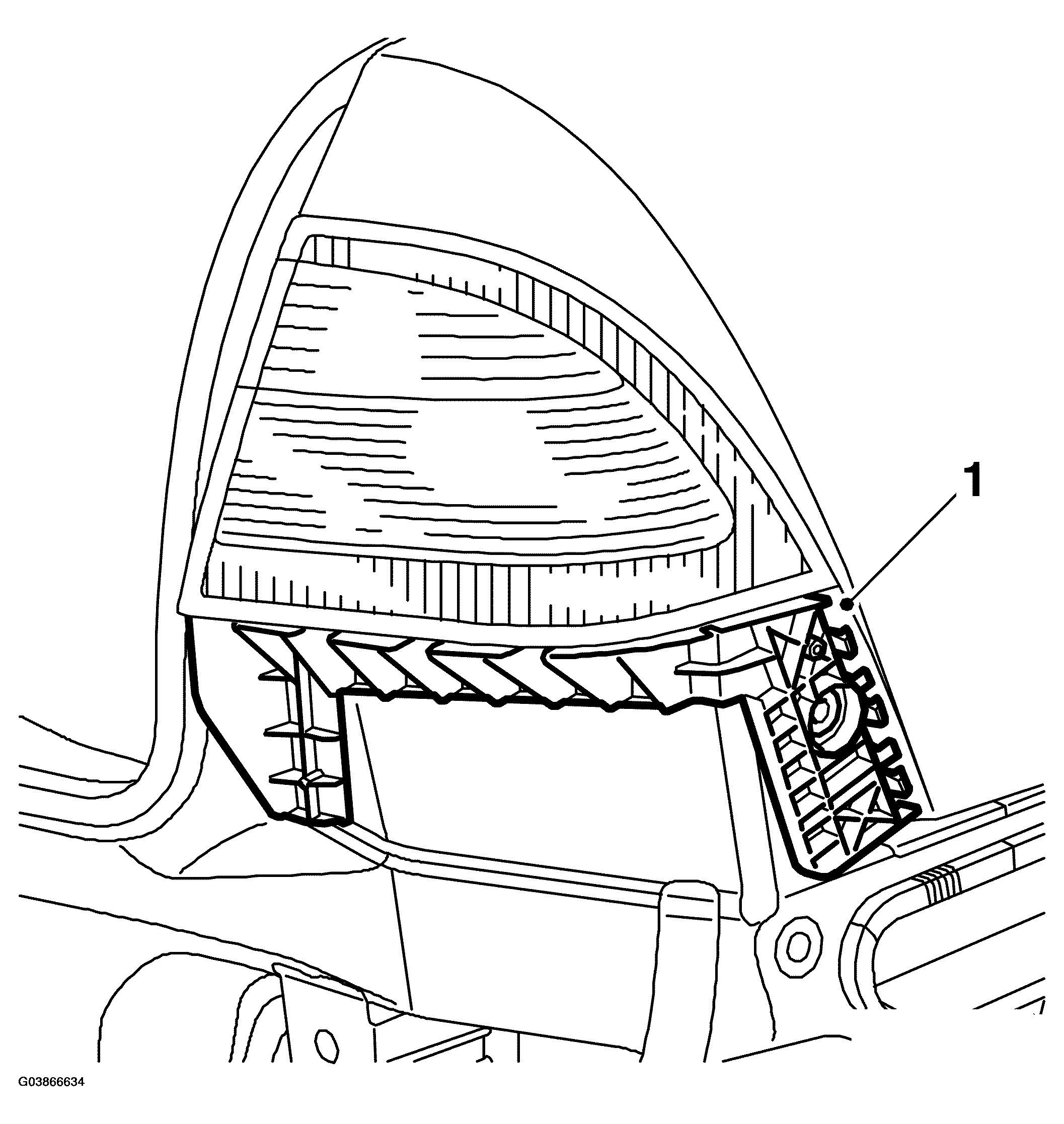

    Fig 1: Illustration For Step 1
    G03866634Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bolts from inside the luggage compartment.

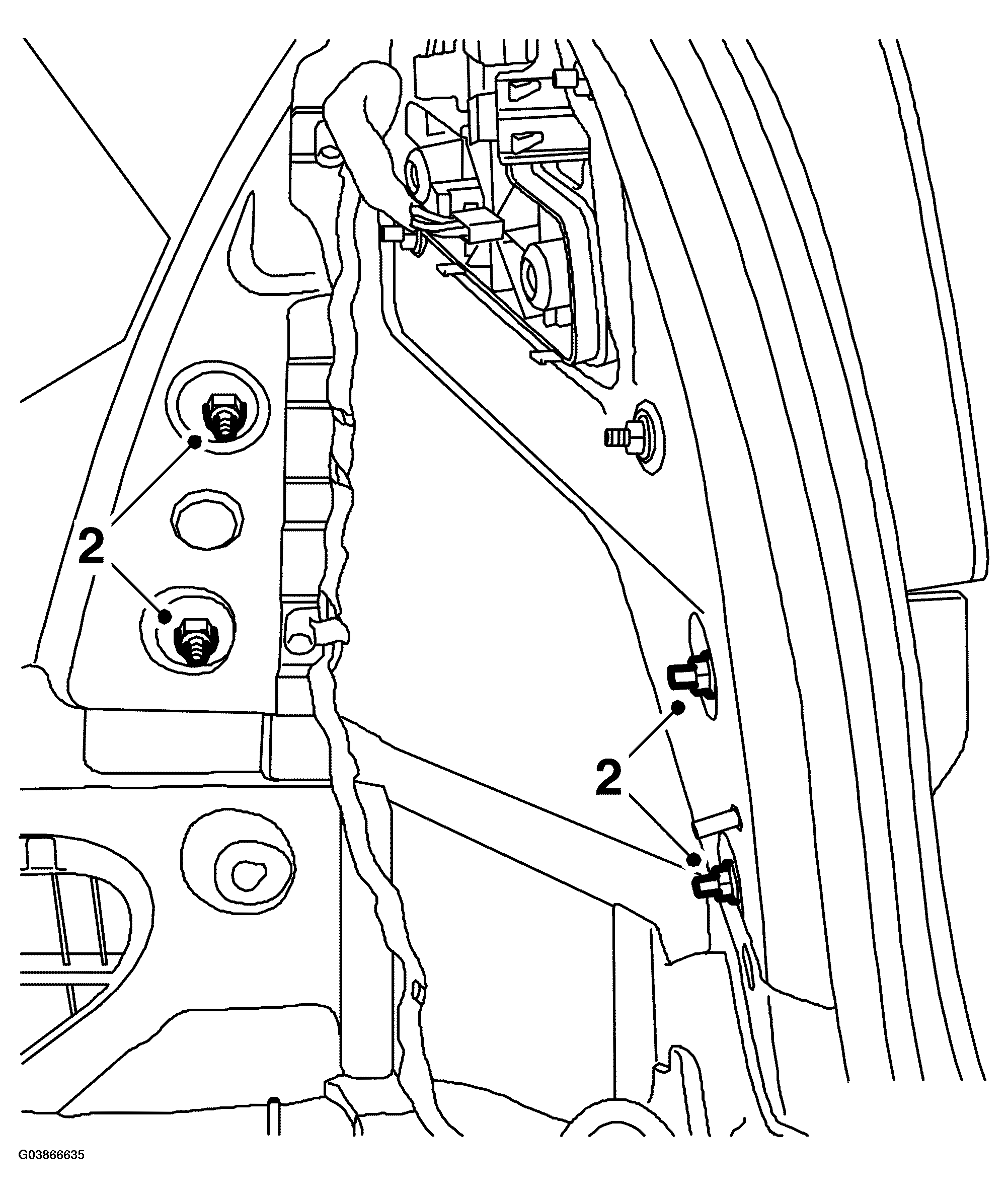

    Fig 2: Illustration For Step 2
    G03866635Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the bumper. See REAR BUMPER 4D
