To remove

  1. Raise the car.
  2. Remove the side cellular block.

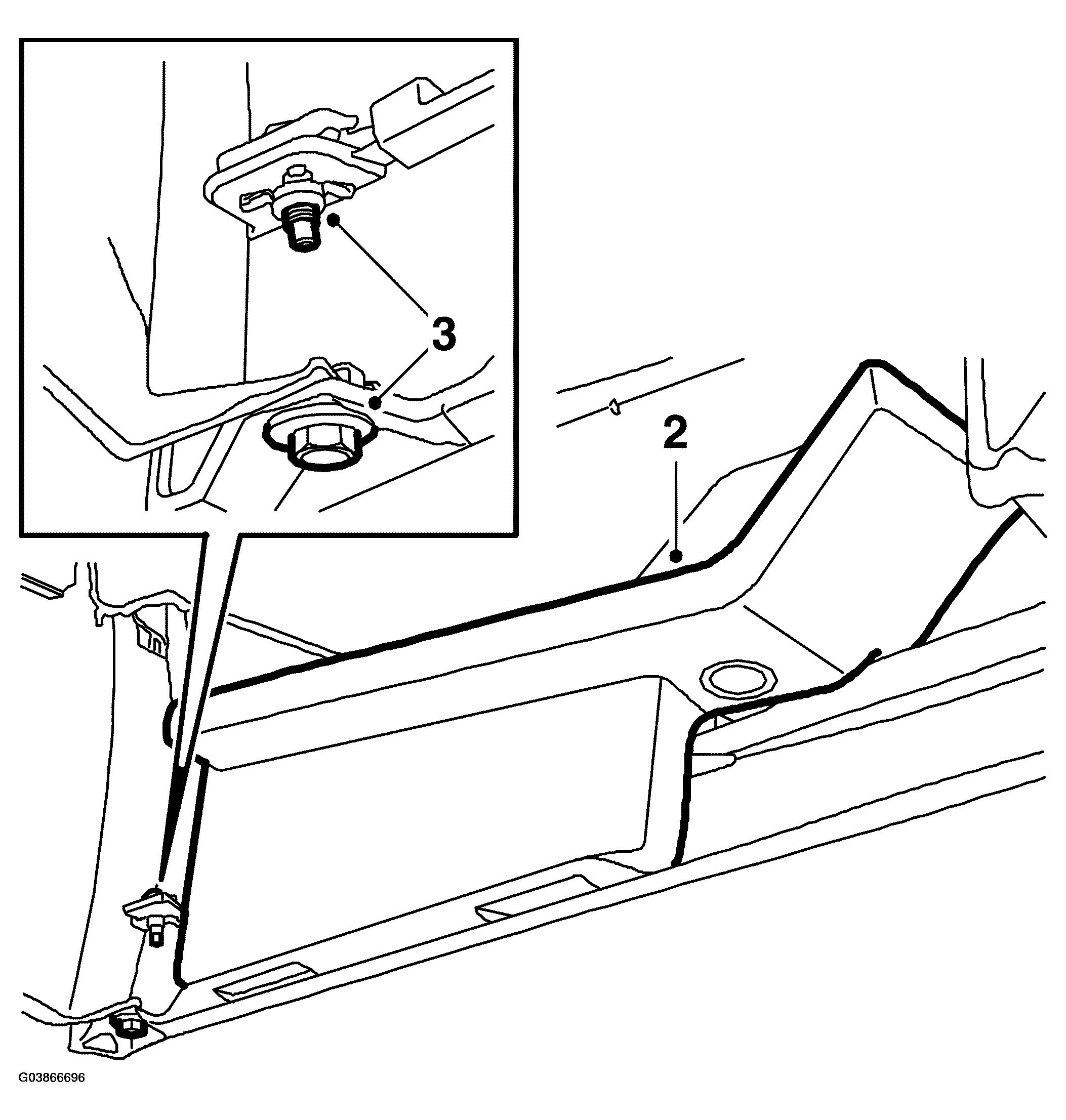

    Fig 1: Illustration For Step 2-3
    G03866696Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Loosen the 2 retaining nuts on each side.
  4. Carefully pull loose the spoiler mountings from the bumper shell.

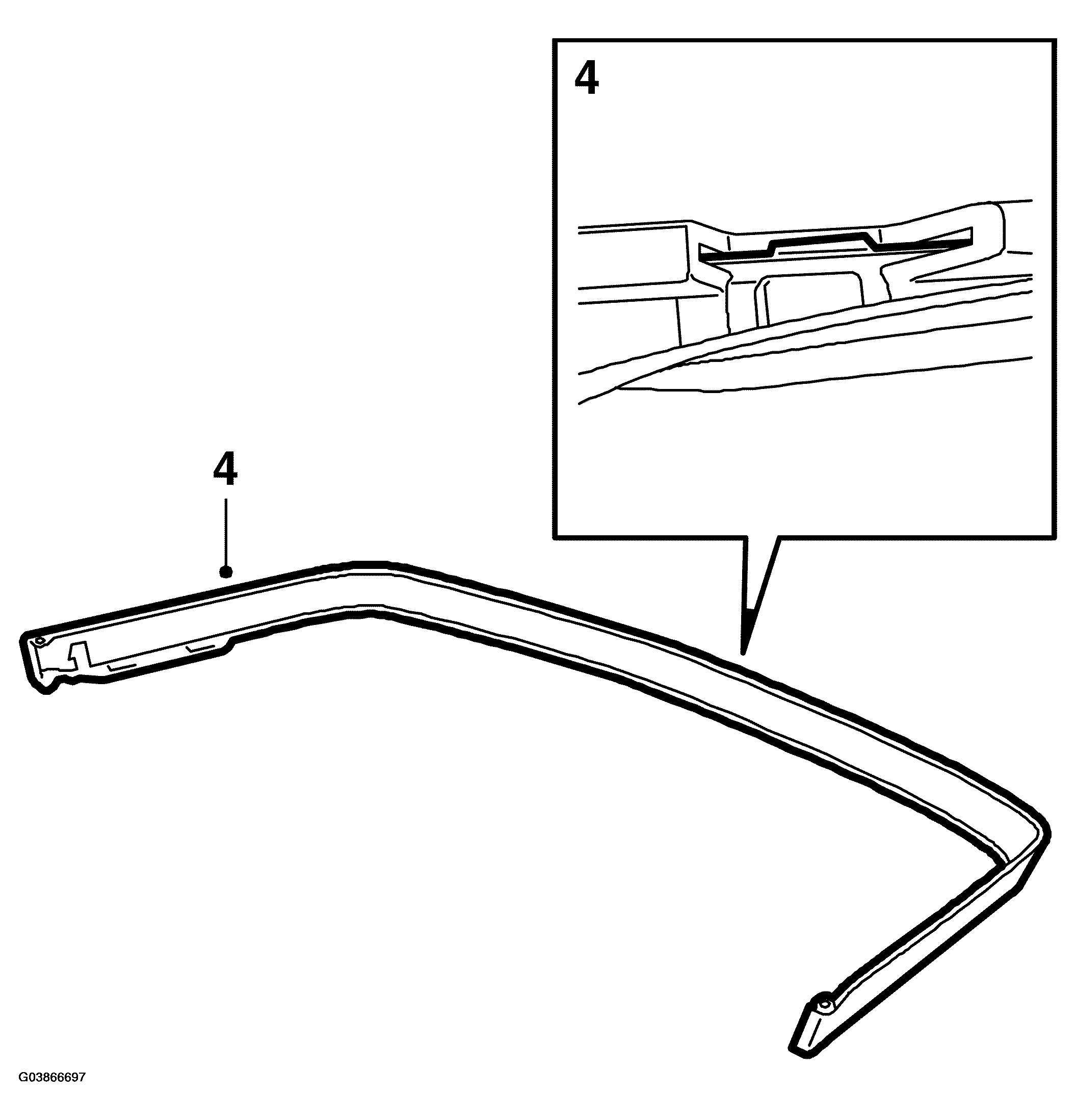

    Fig 2: Illustration For Step 4
    G03866697Courtesy of SAAB-SCANIA OF AMERICA, INC.
