Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior - 9-5 >> Adjustment / Replacement >> Lower rear spoiler >> To fit

To fit

  1. Snap back the spoiler mountings in the bumper shell.

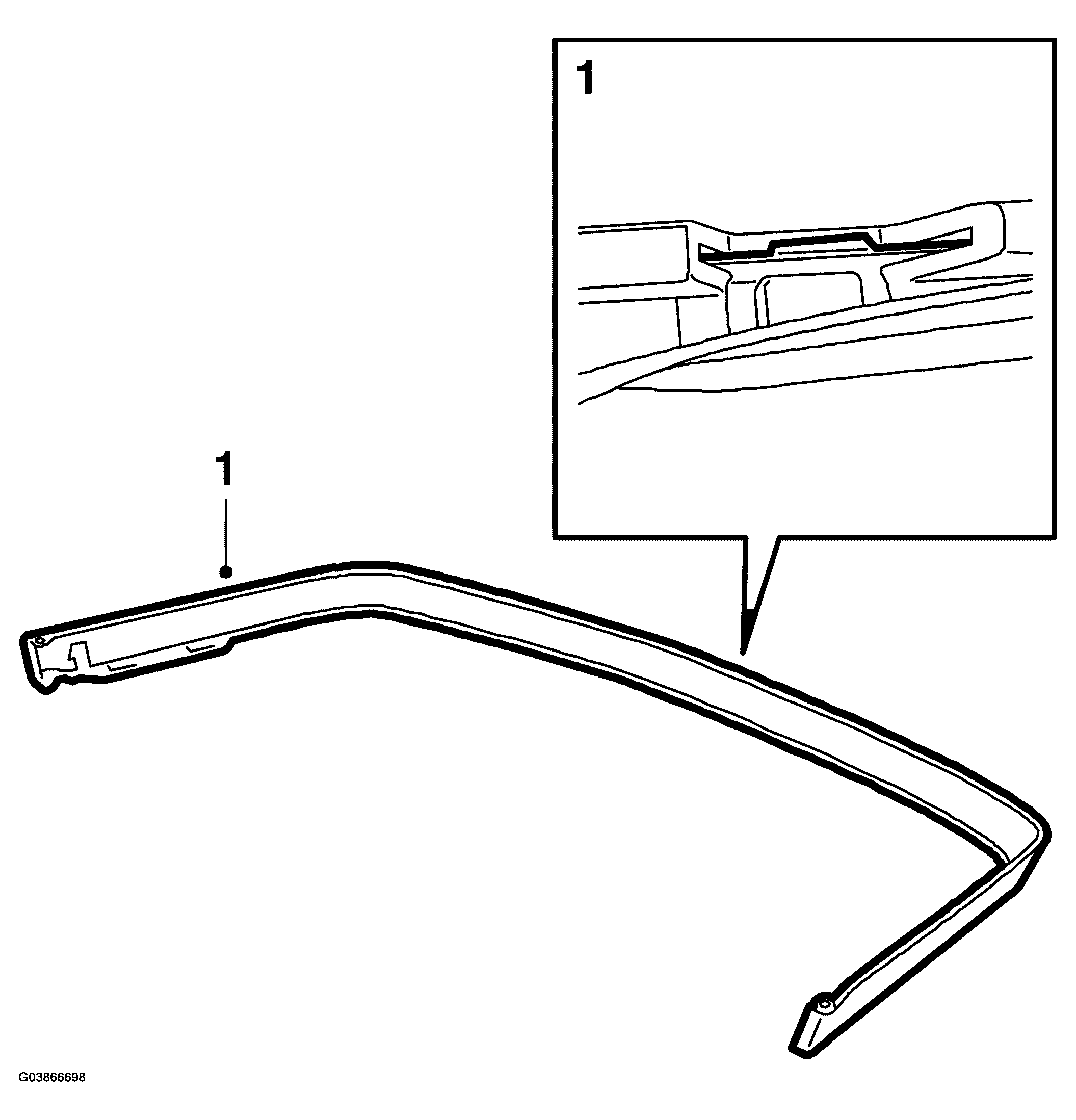

    Fig 1: Illustration For Step 1
    G03866698Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the retaining nuts on both sides.

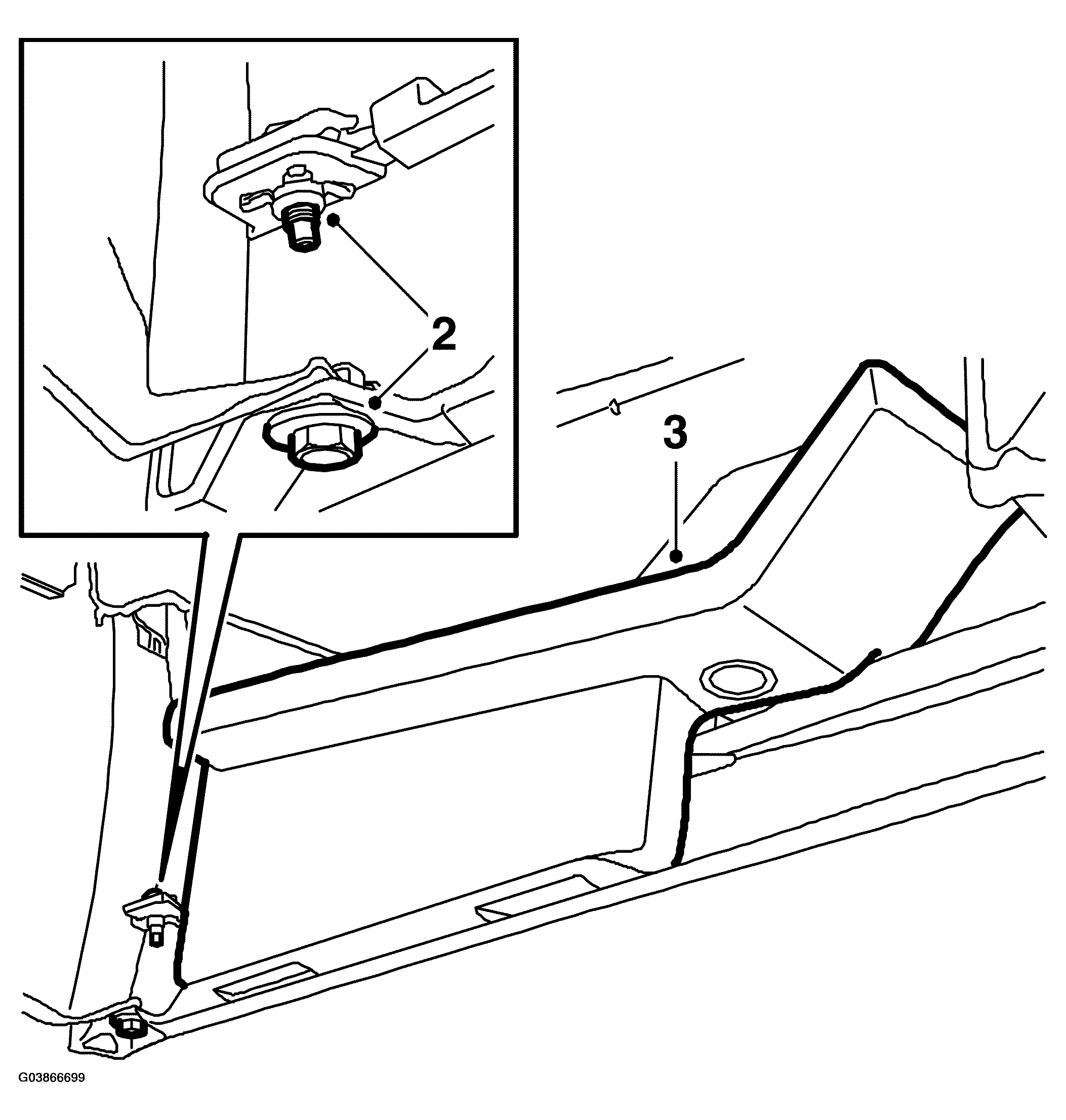

    Fig 2: Illustration For Step 2-3
    G03866699Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the side cellular block.
  4. Lower the car to the floor.
