To remove

If you need to remove the lower rear spoiler without damaging the spoiler, you must remove the bumper shell. Otherwise, proceed as follows:

  1. Raise the car.
  2. Remove the lower spoiler by undoing the upper fasteners with 82 93 474 Removal tool.

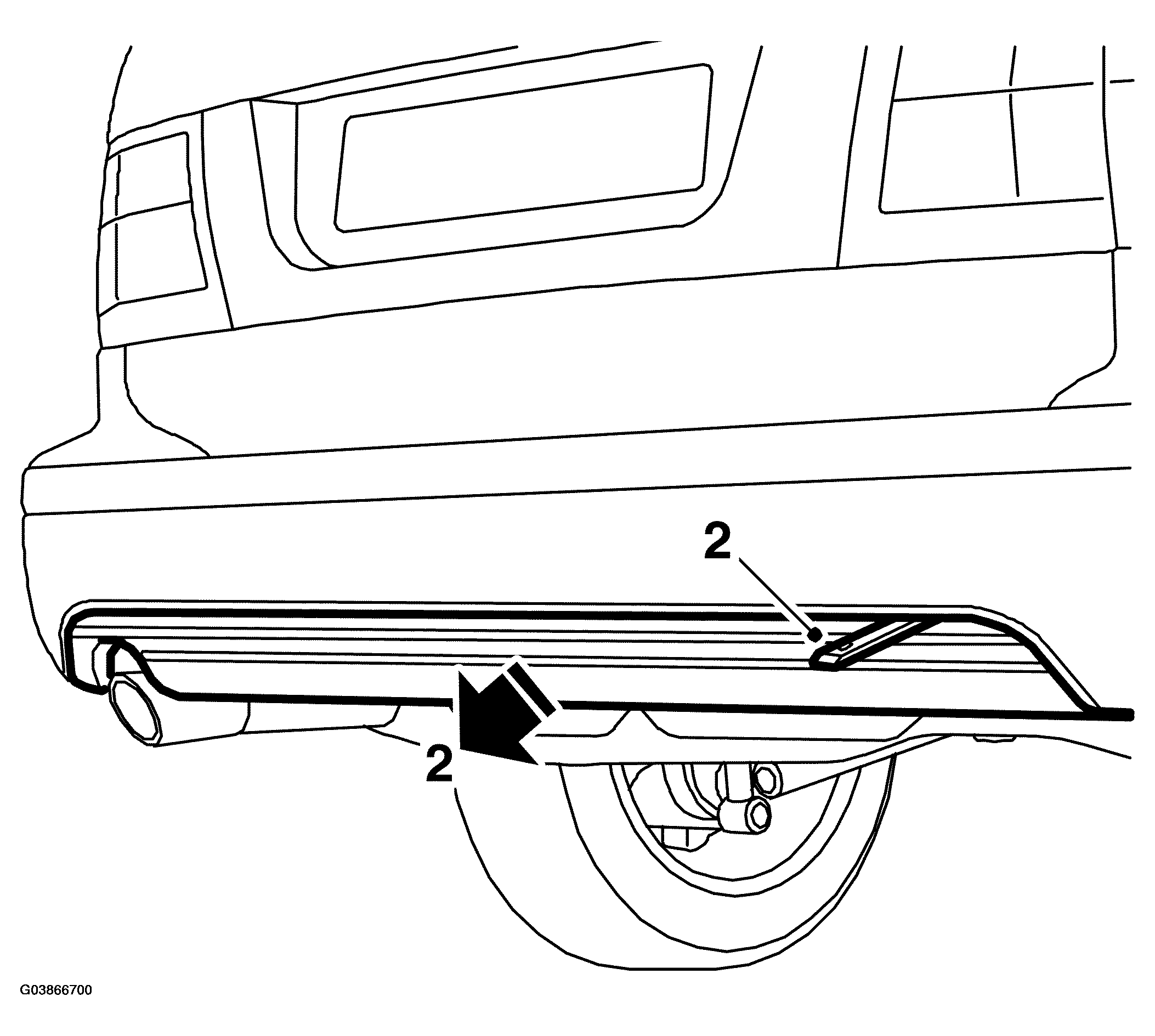

    Fig 1: Illustration For Step 2
    G03866700Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Bend out the top edge of the spoiler and cut the lower attachments with snips.

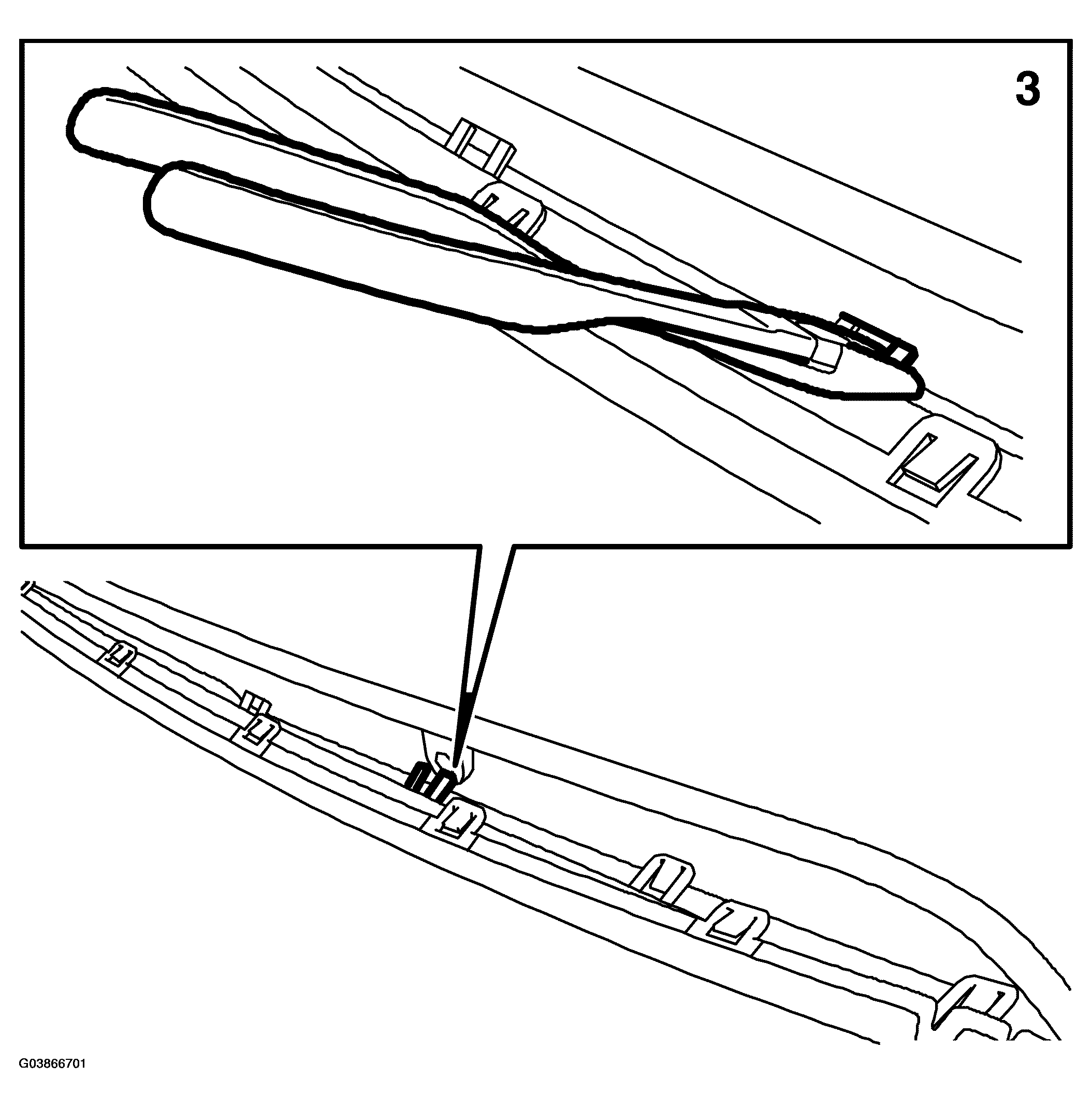

    Fig 2: Illustration For Step 3
    G03866701Courtesy of SAAB-SCANIA OF AMERICA, INC.
