To fit

  1. Press the grille back in place. Check that the clips sit correctly.

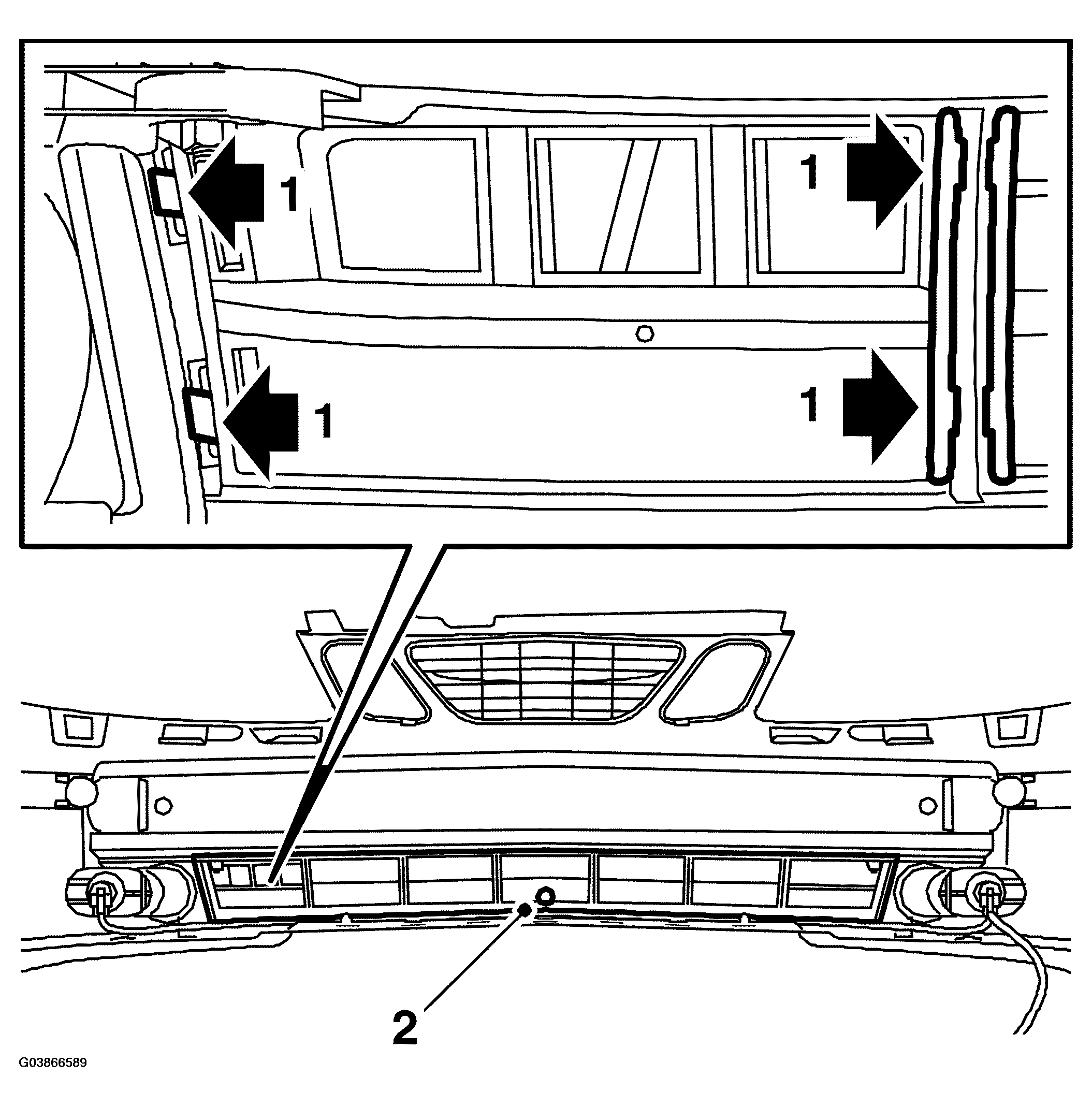

    Fig 1: Illustration For Step 1-2
    G03866589Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the temperature sensor.
  3. Fit the spoiler shield.

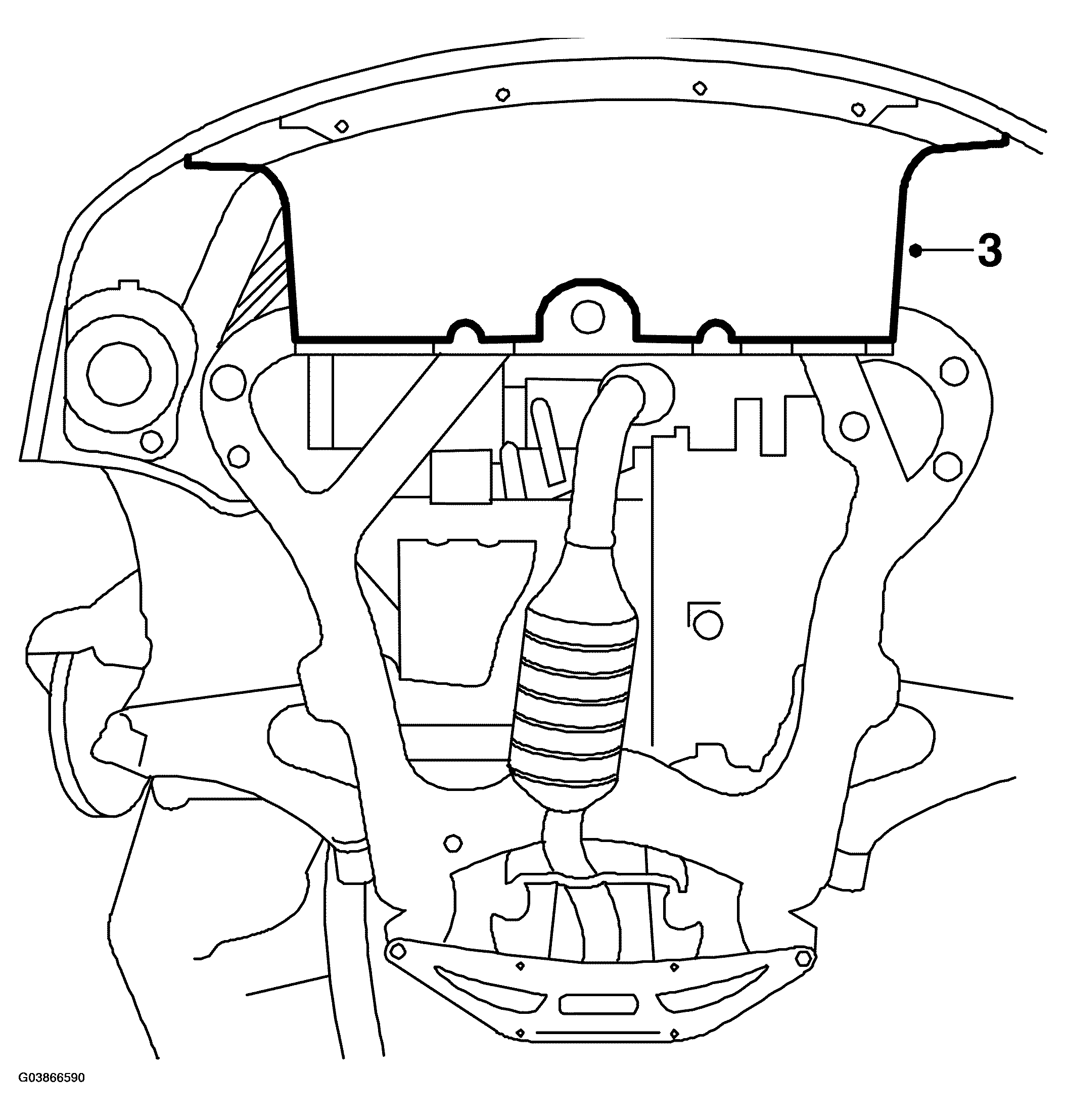

    Fig 2: Illustration For Step 3
    G03866590Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lower the car to the floor.
