To remove

  1. Raise the car.
  2. Remove the spoiler shield.

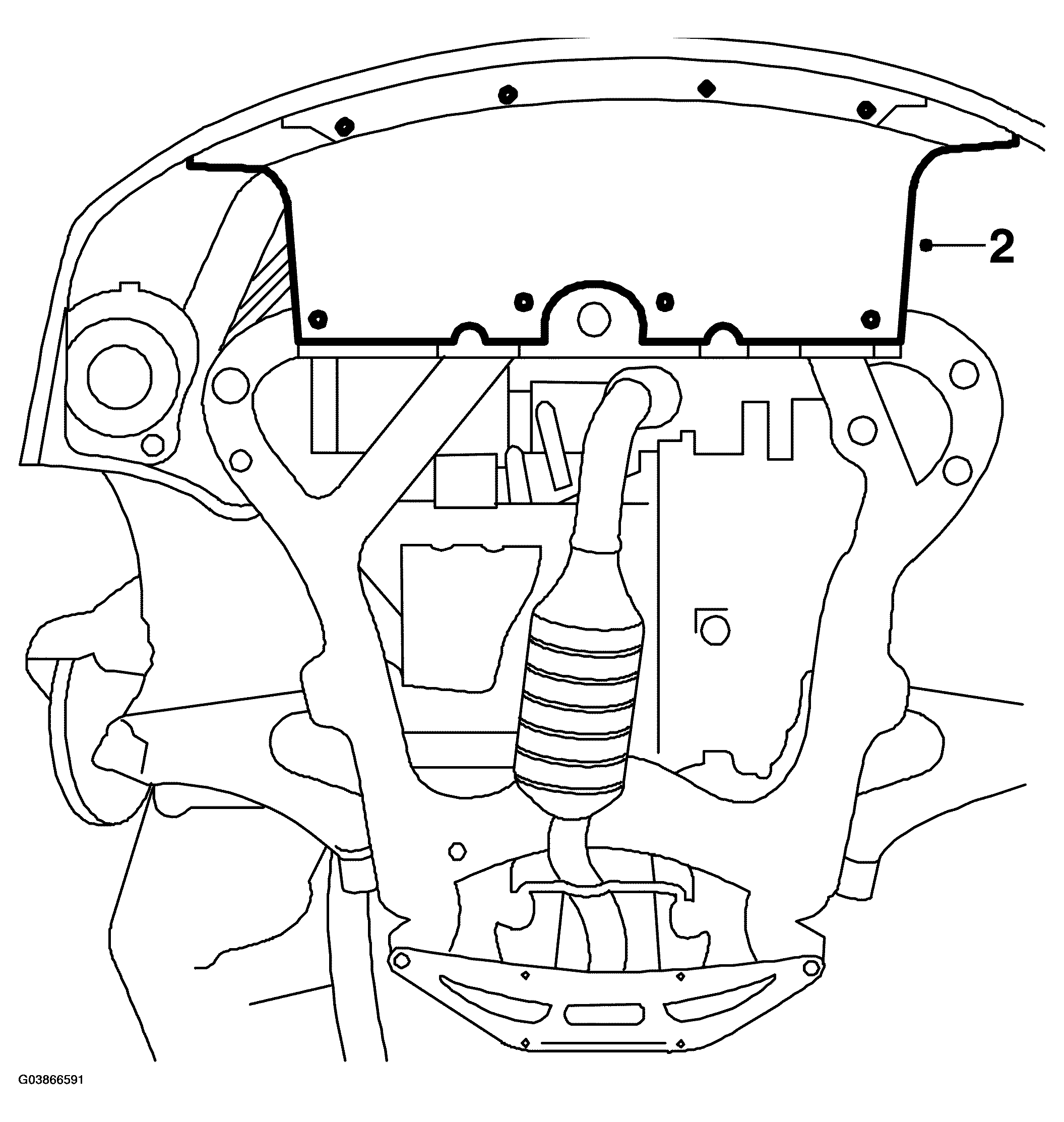

    Fig 1: Illustration For Step 2
    G03866591Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the grille by depressing the clips.

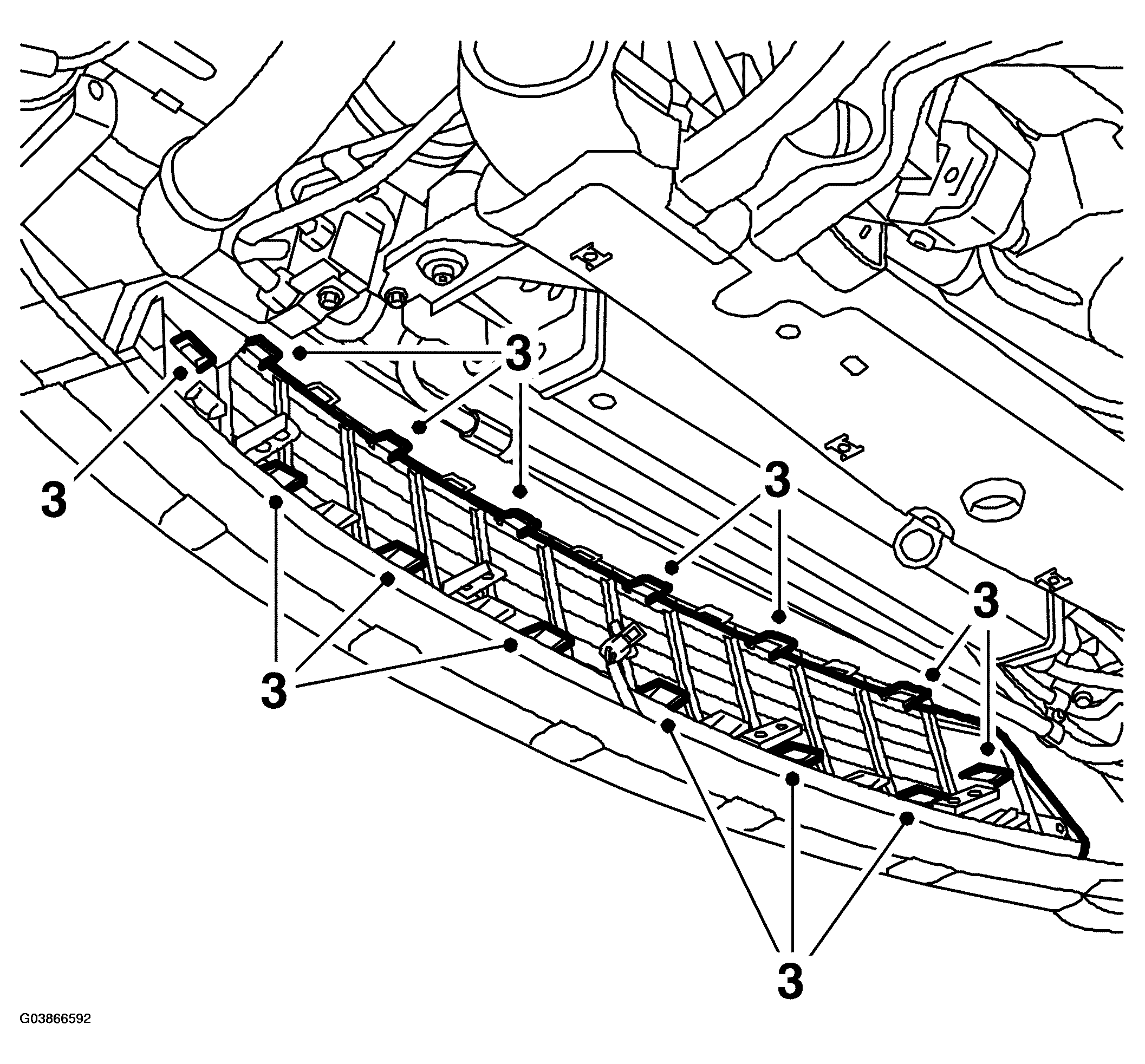

    Fig 2: Illustration For Step 3
    G03866592Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Carefully lift out the grille.
