To fit

First wash the area where the emblem is to be mounted with pure benzine.

NOTE: The emblems and the car body must be at room temperature (approx. 20°C, 68°F) before the emblem can be affixed.

Remove the protective tape backing from the emblem and leave the emblem in the frame.
Fit the frame on the boot lid following the measurements of the illustration and affix the emblem.
Remove the frame.

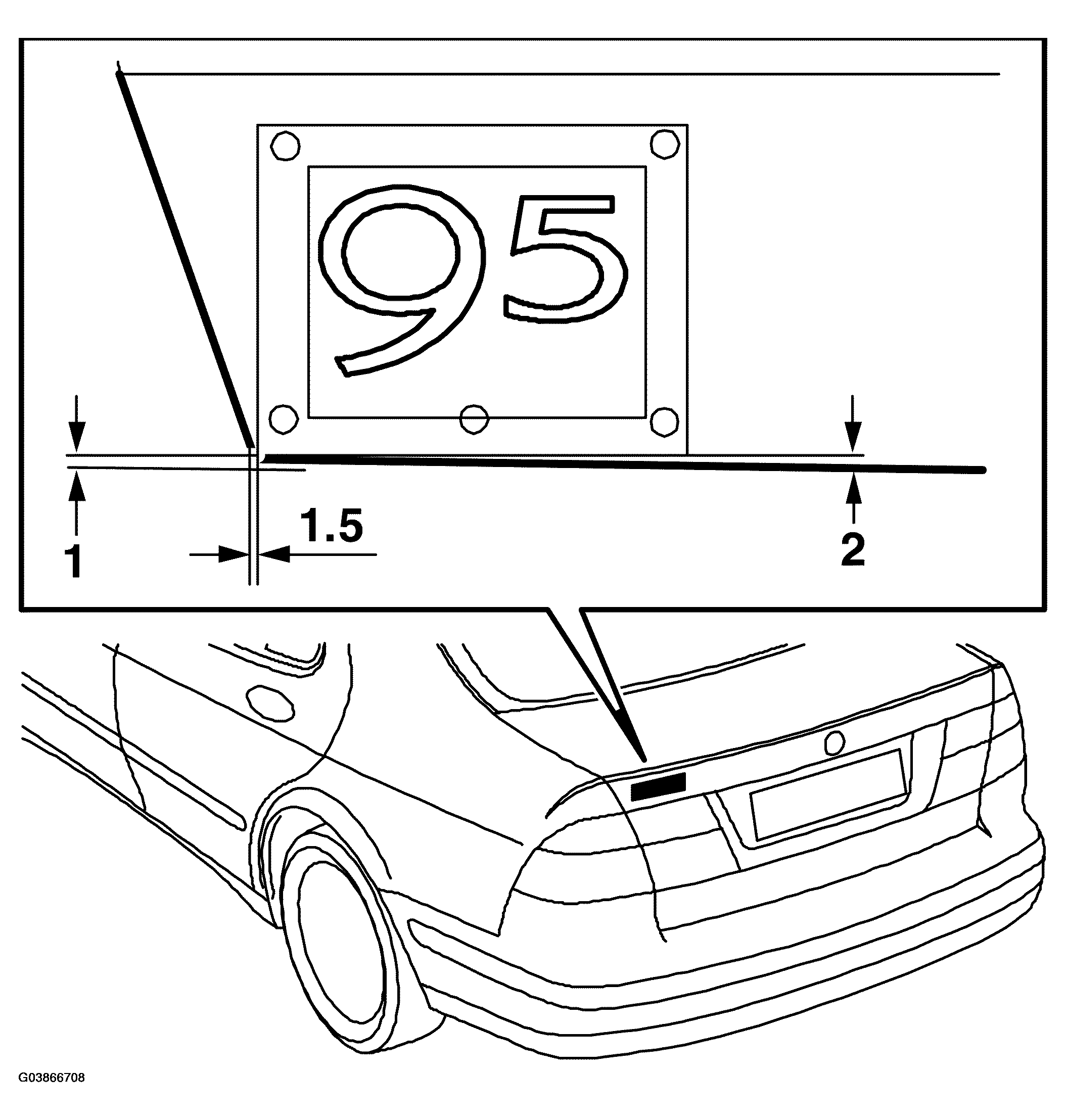

Fig 1: Installing 9-5 Emblem
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Installing 2.0t Emblem
Courtesy of SAAB-SCANIA OF AMERICA, INC.

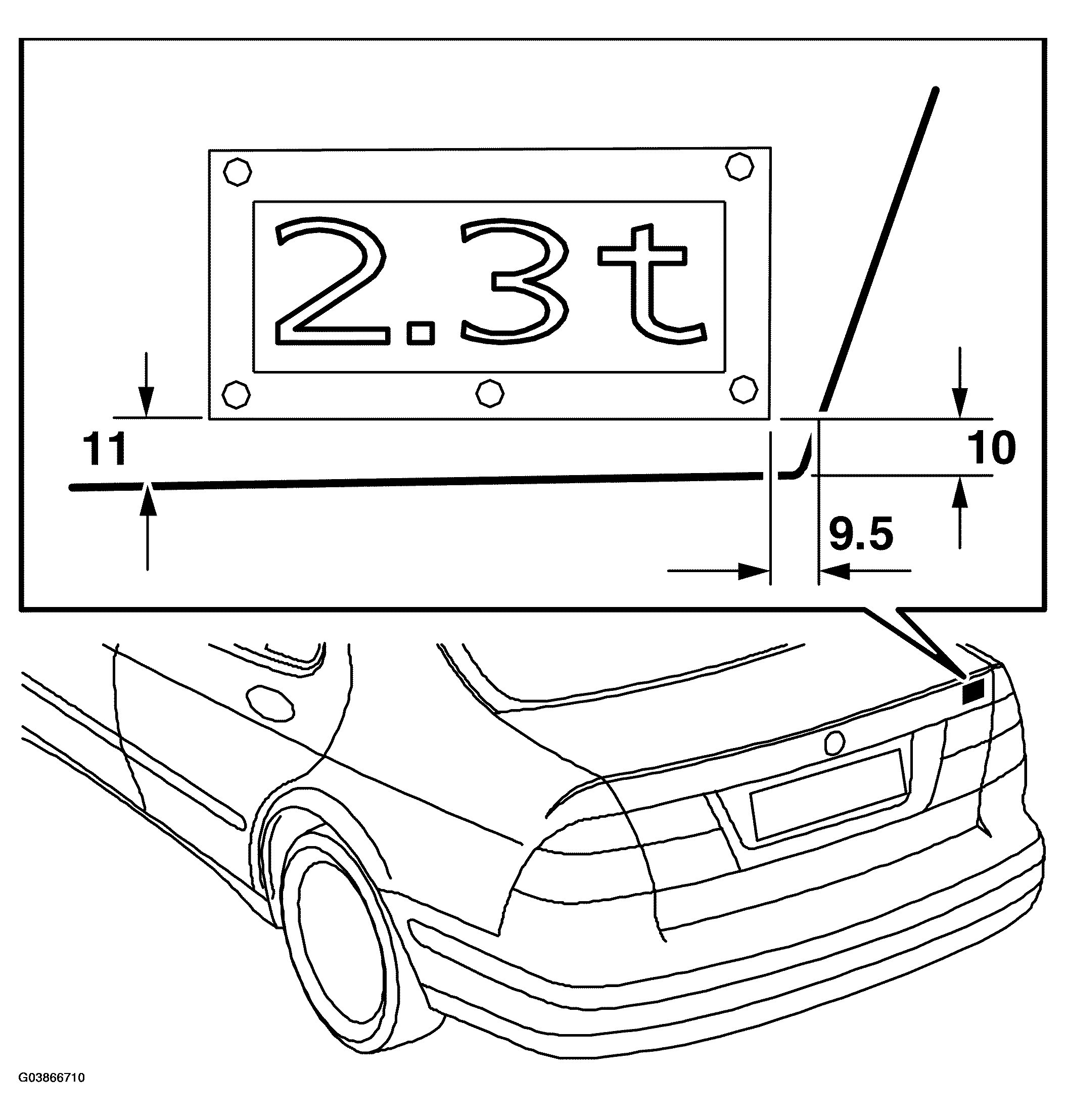

Fig 3: Installing 2.3t Emblem
Courtesy of SAAB-SCANIA OF AMERICA, INC.

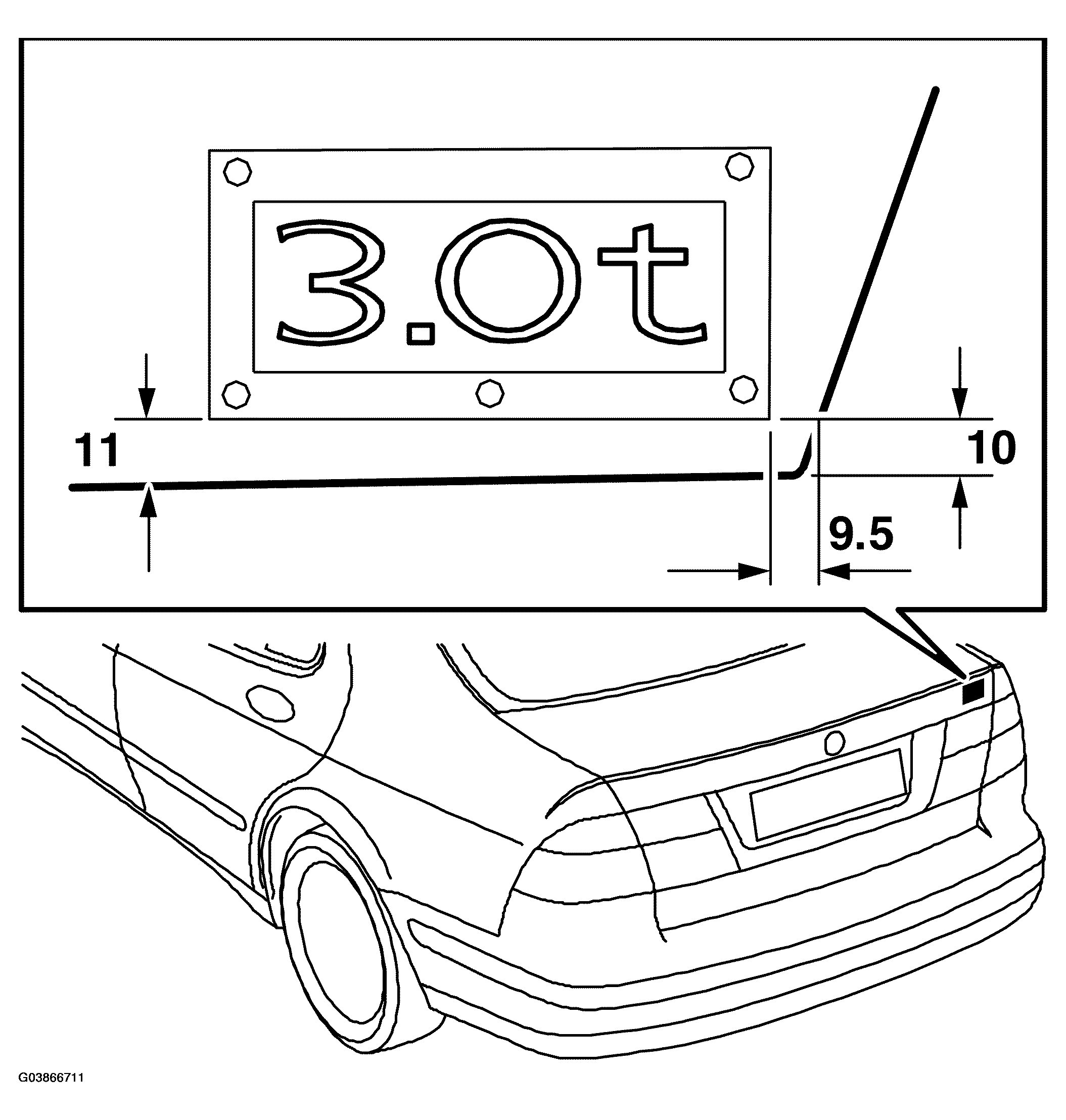

Fig 4: Installing 3.0t Emblem
Courtesy of SAAB-SCANIA OF AMERICA, INC.

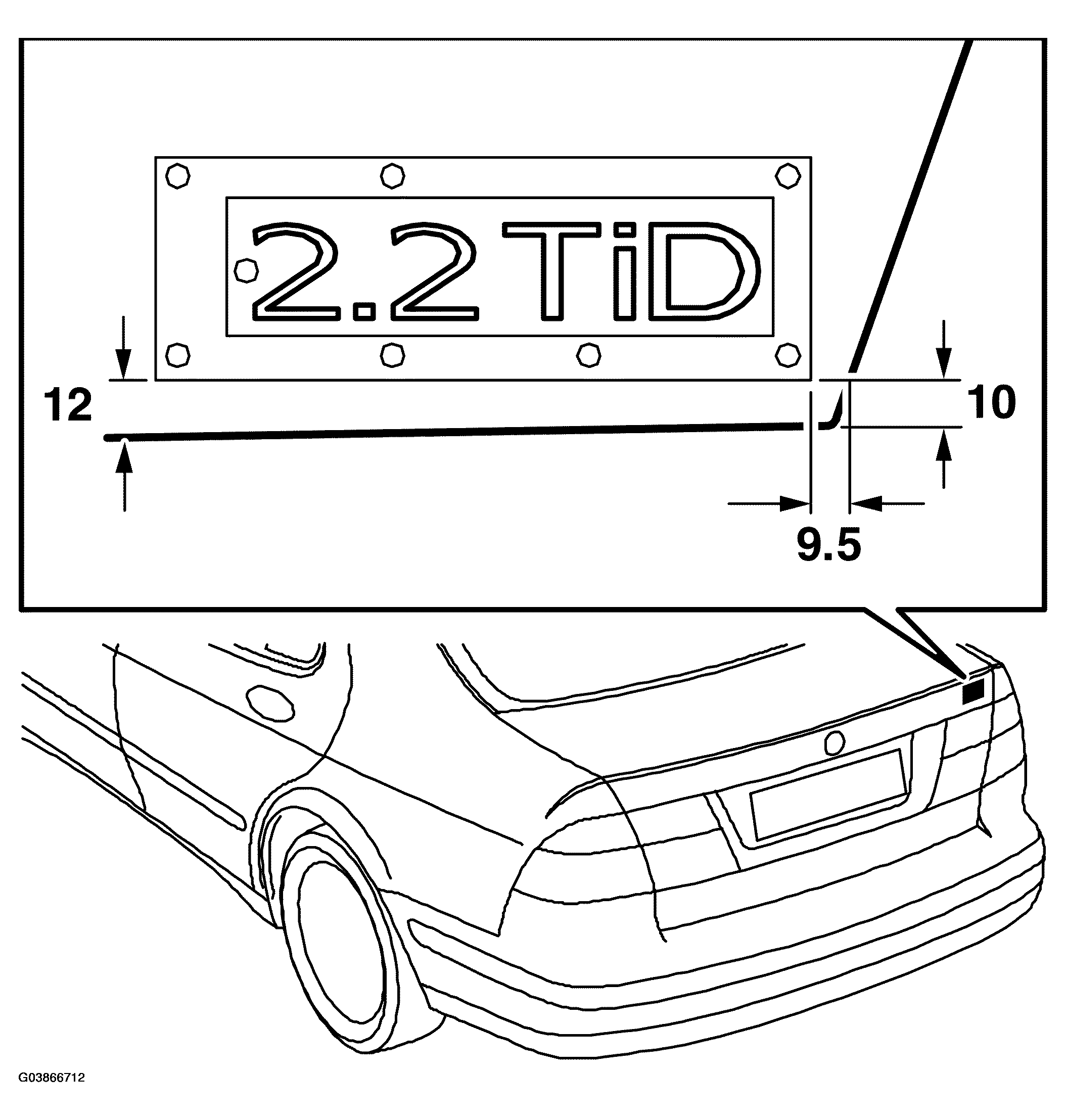

Fig 5: Installing 2.2 TiD Emblem
Courtesy of SAAB-SCANIA OF AMERICA, INC.

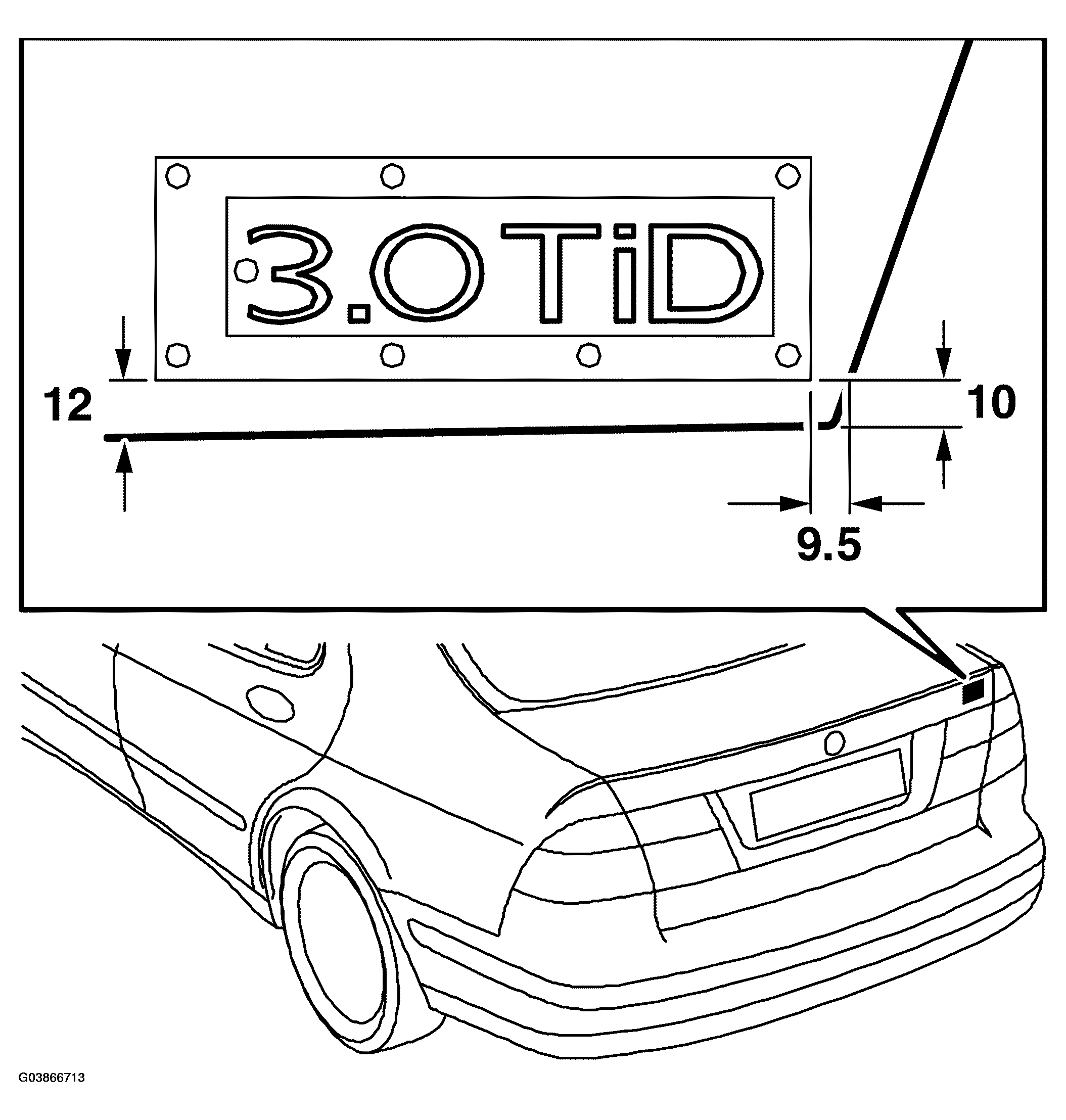

Fig 6: Installing 3.0 TiD Emblem
Courtesy of SAAB-SCANIA OF AMERICA, INC.

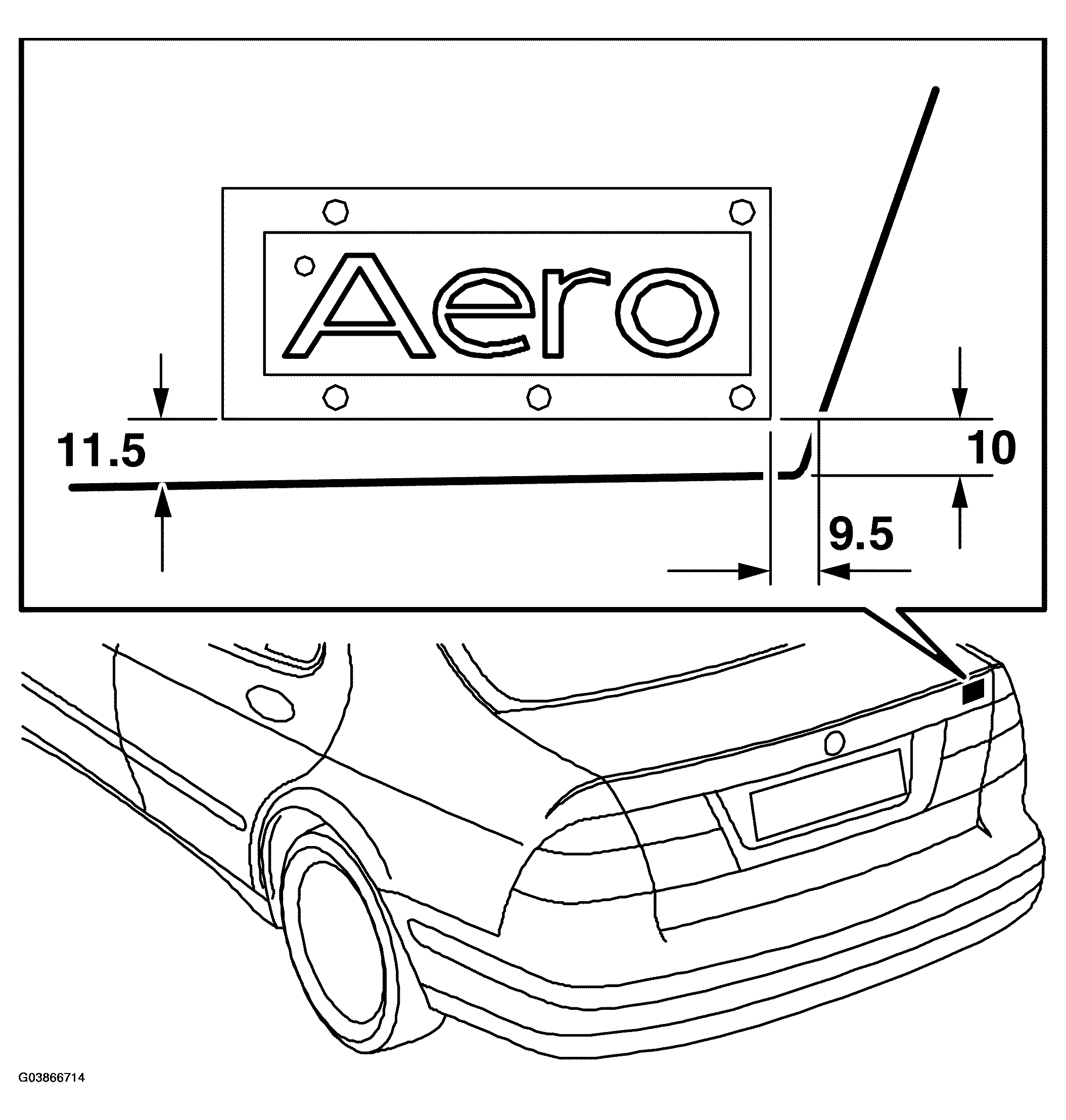

Fig 7: Installing Aero Emblem
Courtesy of SAAB-SCANIA OF AMERICA, INC.
