To remove

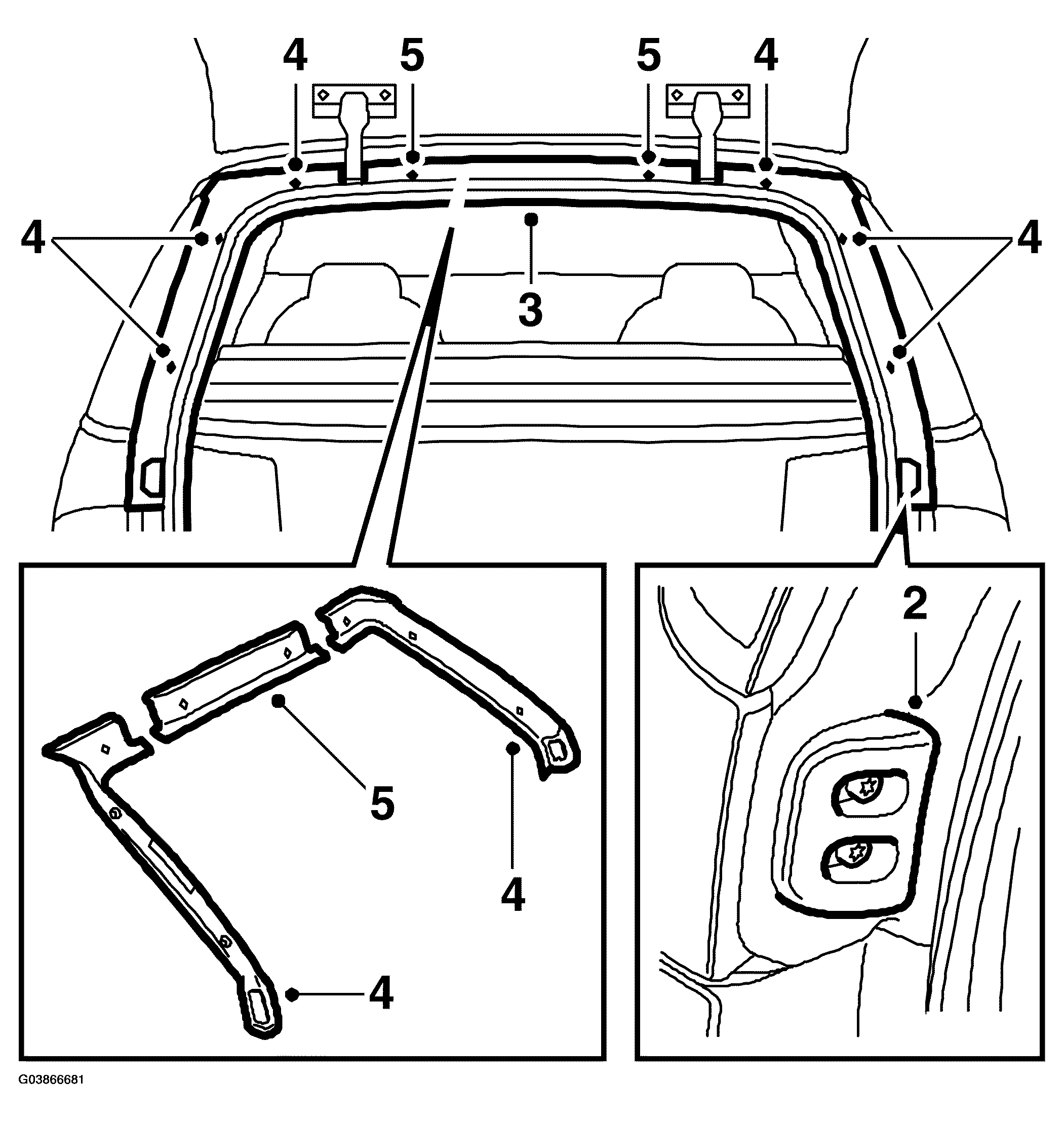

Fig 1: Illustration For Step 2-5
G03866681Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the tailgate and remove all covers.
  2. Remove the side supports.
  3. Pull off so much of the weatherstrip to expose the covers.
  4. Remove the side covers, 2 bolts and 1 nut.
  5. Remove the upper cover, secured by 2 nuts.
