To fit

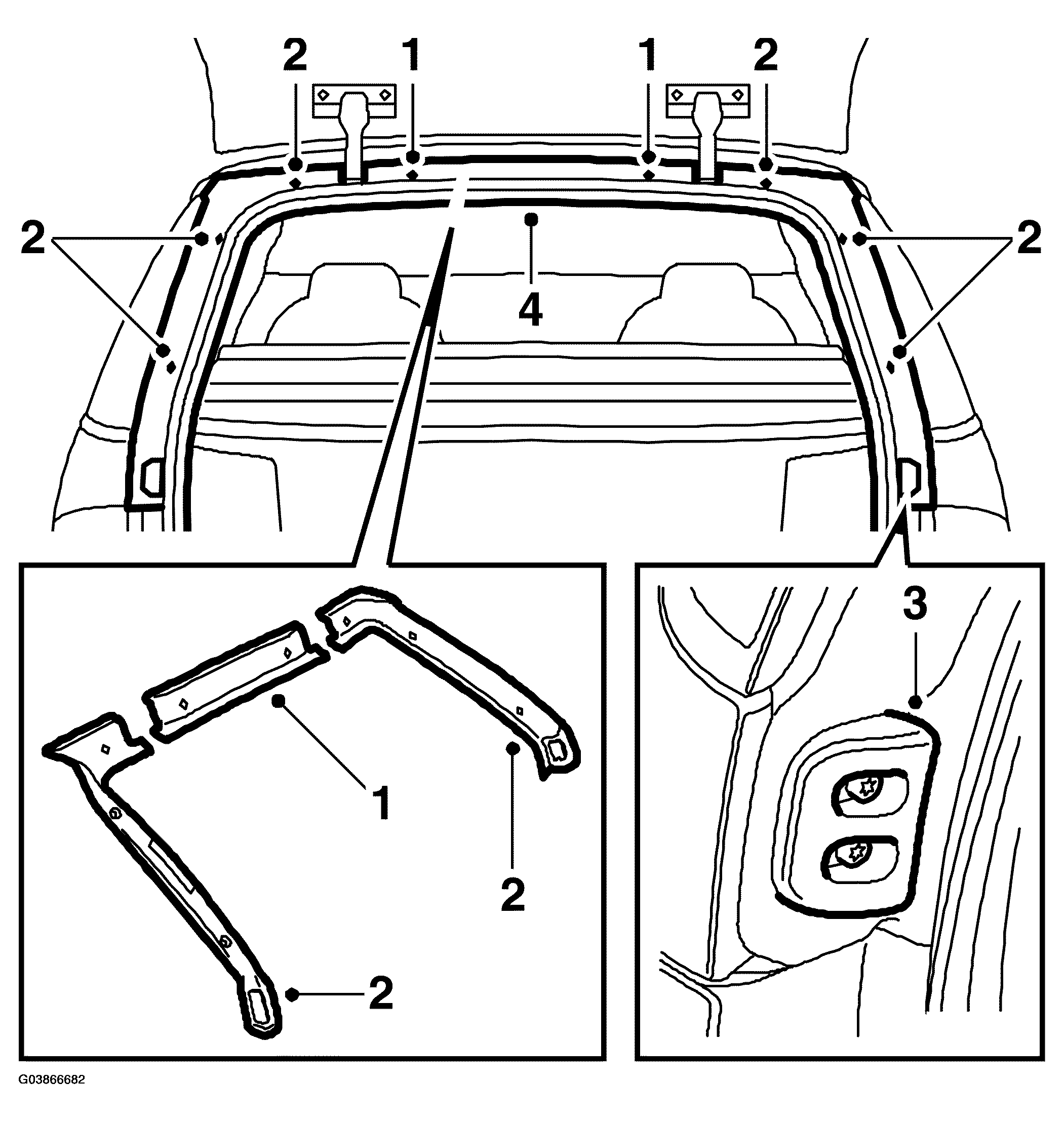

Fig 1: Illustration For Step 1-4
G03866682Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the upper cover. Make sure that the upper weatherstrip is correctly positioned over the edge of the cover.
  2. Fit the side covers. Make sure that the upper weatherstrip is correctly positioned over the upper part of the side covers.
  3. Fit the side supports.
  4. Press home the weather strip. Make sure the strip is positioned correctly over the edges of the covers. Fit all covers.
  5. Close the tailgate and check the adjustment of the side supports.
