To fit

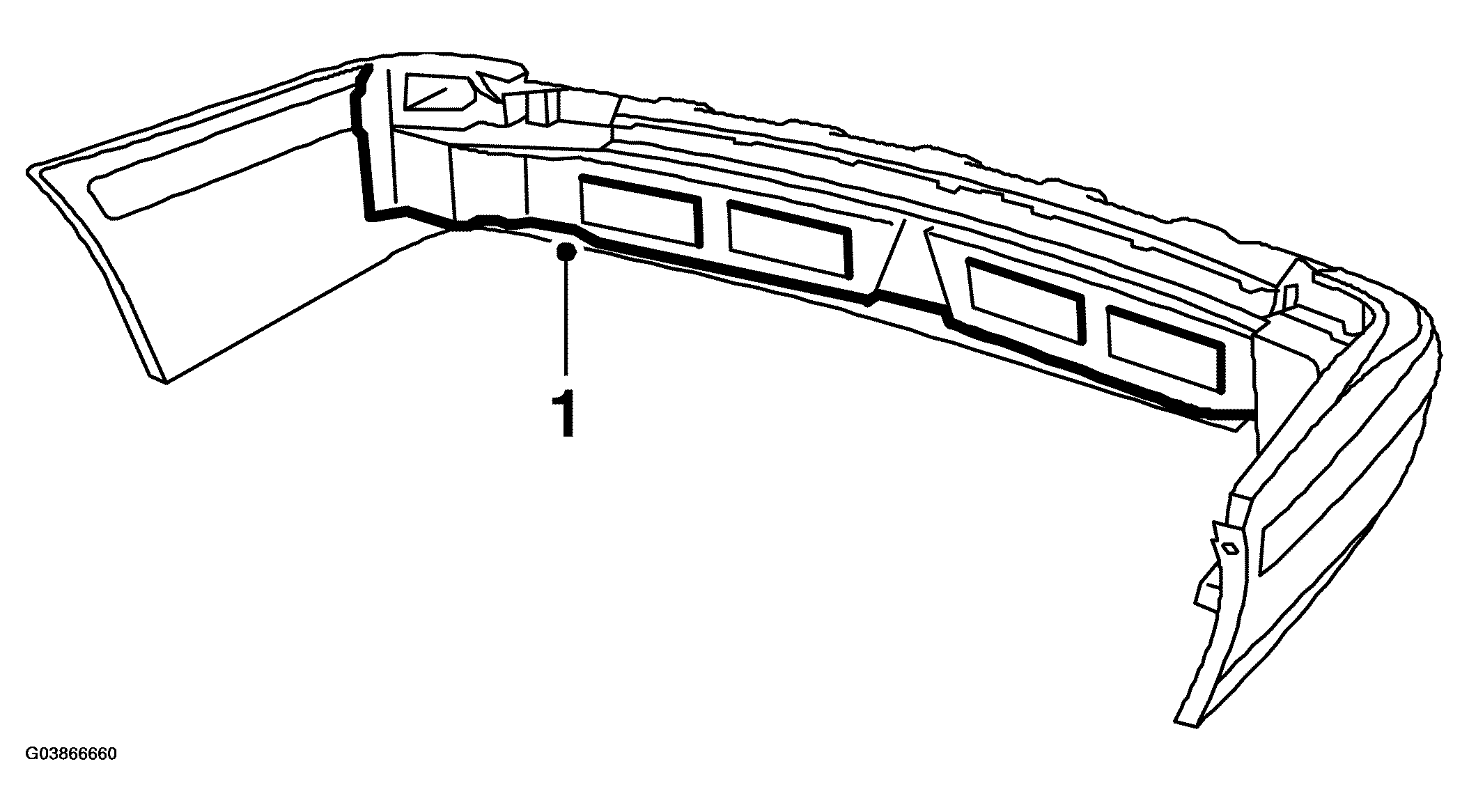

Fig 1: Illustration For Step 1
G03866660Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the cellular block into the protective shell's retaining wedges.
  2. Fit the bumper rail together with the small cellular blocks.

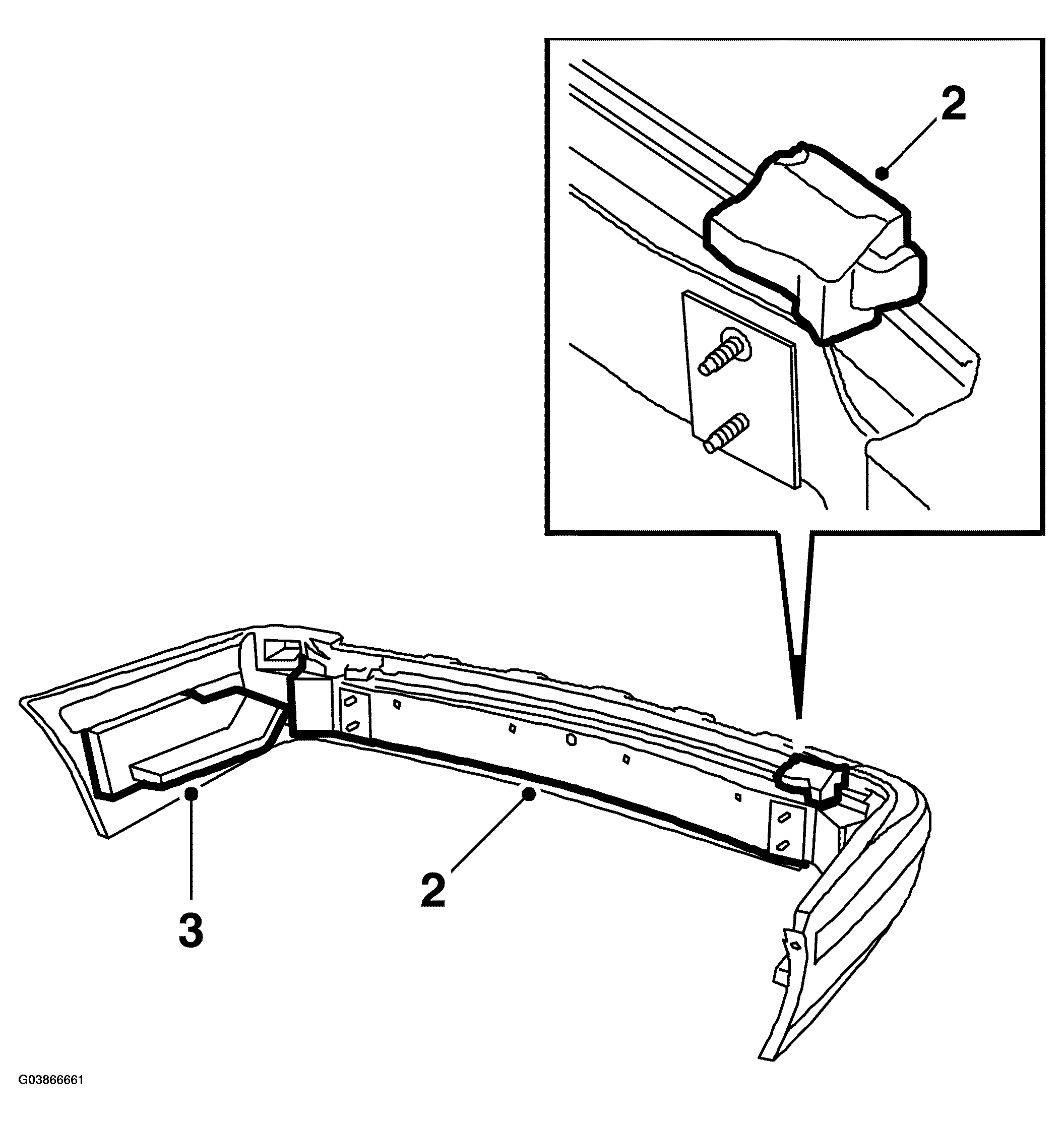

    Fig 2: Illustration For Step 2-3
    G03866661Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: The rail should be guided in place with a locating stud in the protective shell.
  3. Fit the two large cellular blocks on the sides of the protective shell.
  4. Fit the upper portion of the protective shell by guiding the flaps in towards the bolts in the front edge. Press in the clips on the lower edge of the protective shell. Press down on the shell while fitting the bolts.
    NOTE: Cars equipped with towbar:
    • Cut out following the marking on the protective shell.

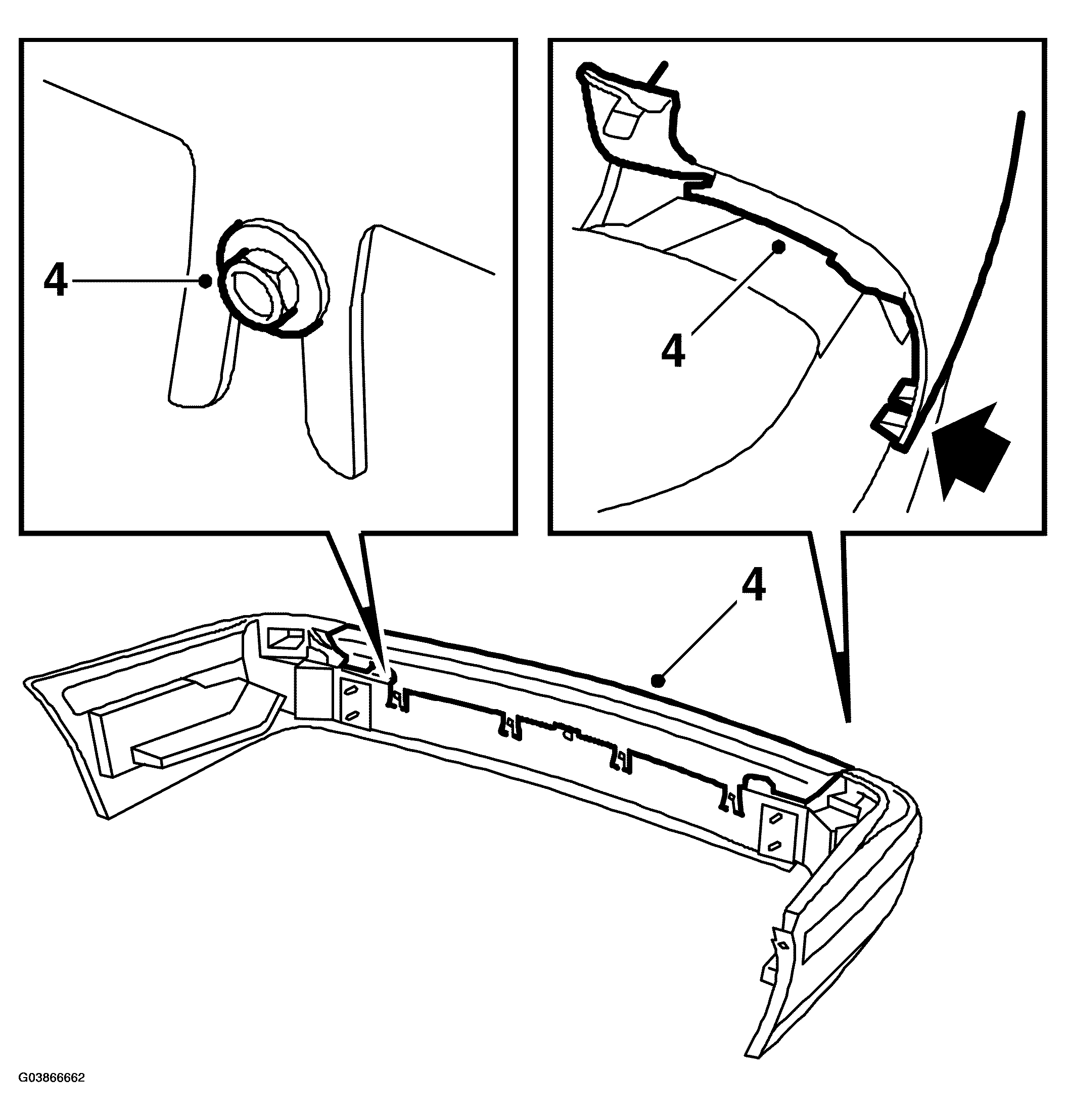

    Fig 3: Illustration For Step 4
    G03866662Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the bumper on the car. See REAR BUMPER, 5D  .
