To remove

  1. Remove the bumper. See REAR BUMPER, 4D  Lay it on a well protected workbench.
  2. Loosen the upper cellular block from the protective shell. Lift it out from the bumper rail (it is wedged into the bumper rail).

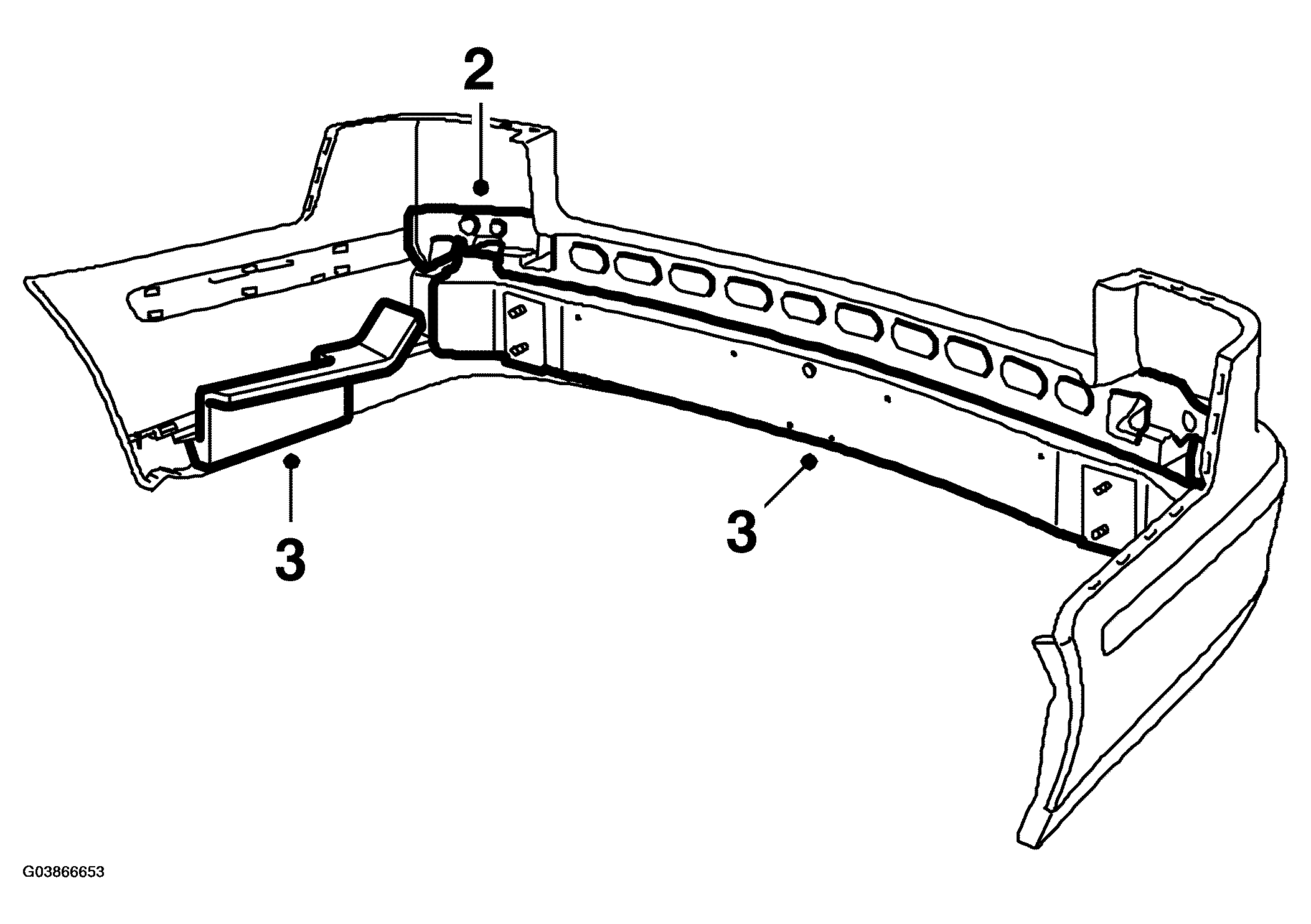

    Fig 1: Illustration For Step 2-3
    G03866653Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the two cellular blocks that sit on each side of the protective shell. Loosen the bumper rail from the clips securing it to the protective shell.
  4. Loosen the cellular block from the protective shell (wedged into the protective shell's retaining wedges).

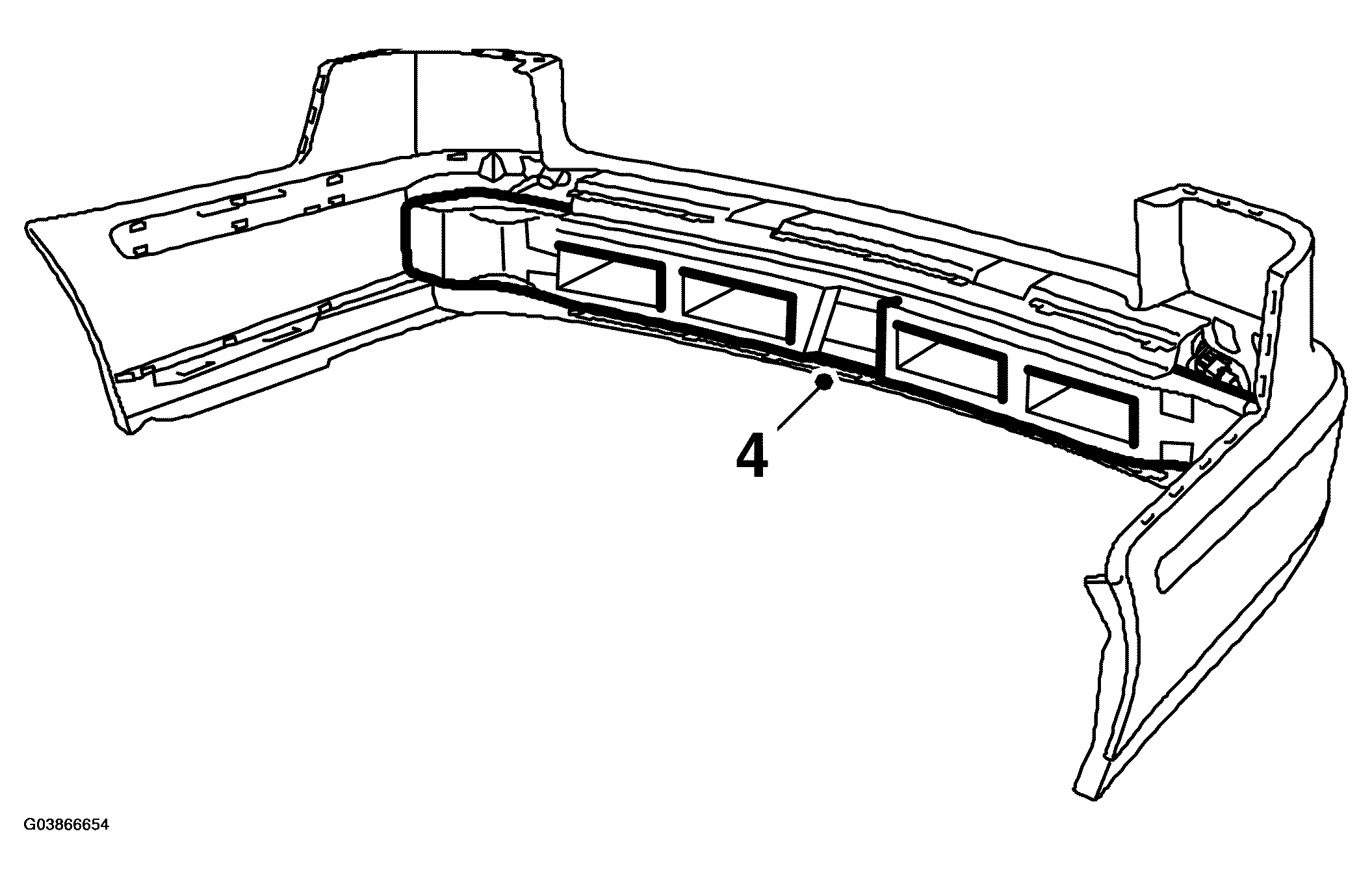

    Fig 2: Illustration For Step 4
    G03866654Courtesy of SAAB-SCANIA OF AMERICA, INC.
