To fit

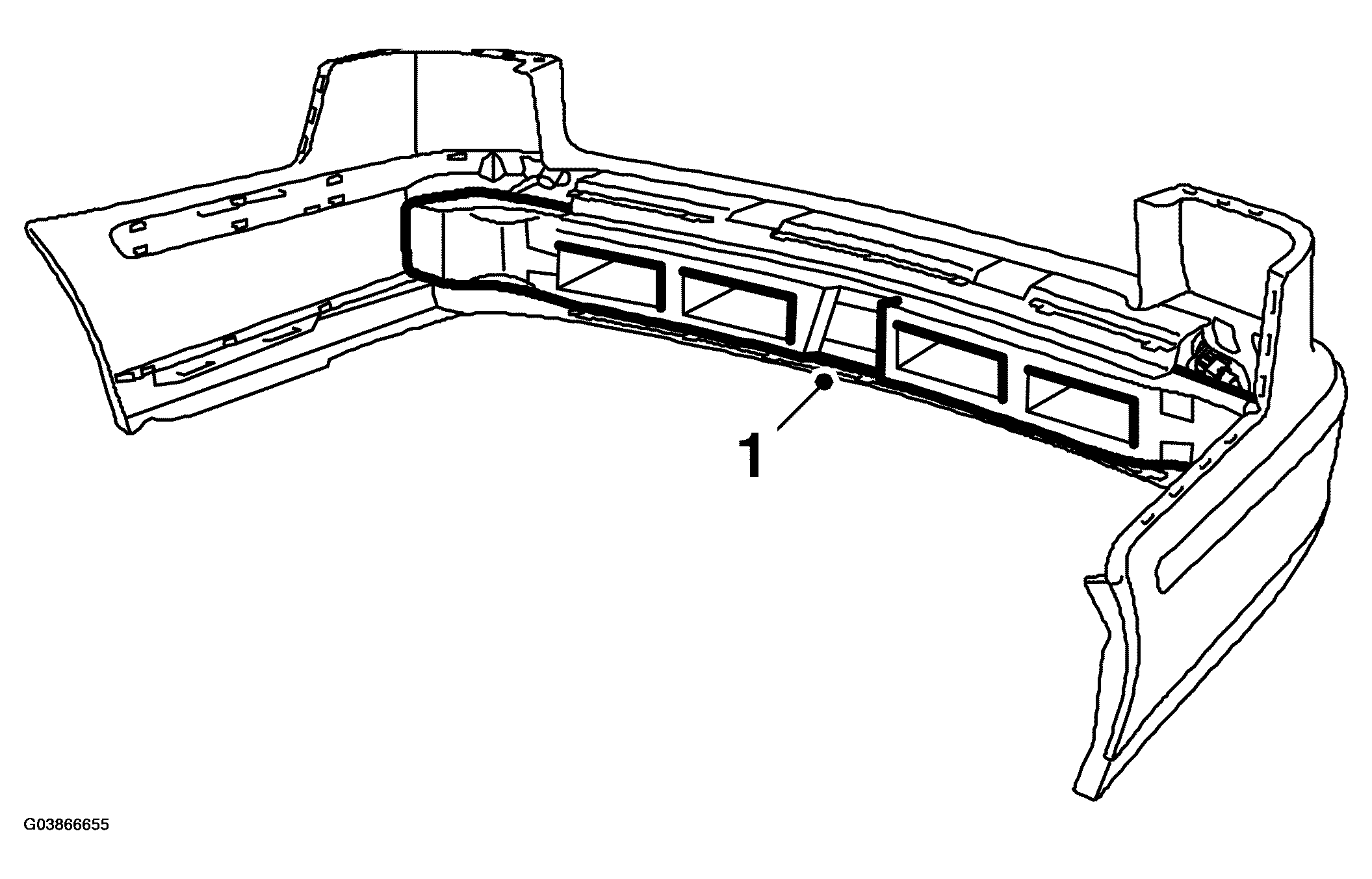

Fig 1: Illustration For Step 1
G03866655Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the cellular block into the protective shell's retaining wedges.
  2. Fit the bumper rail.

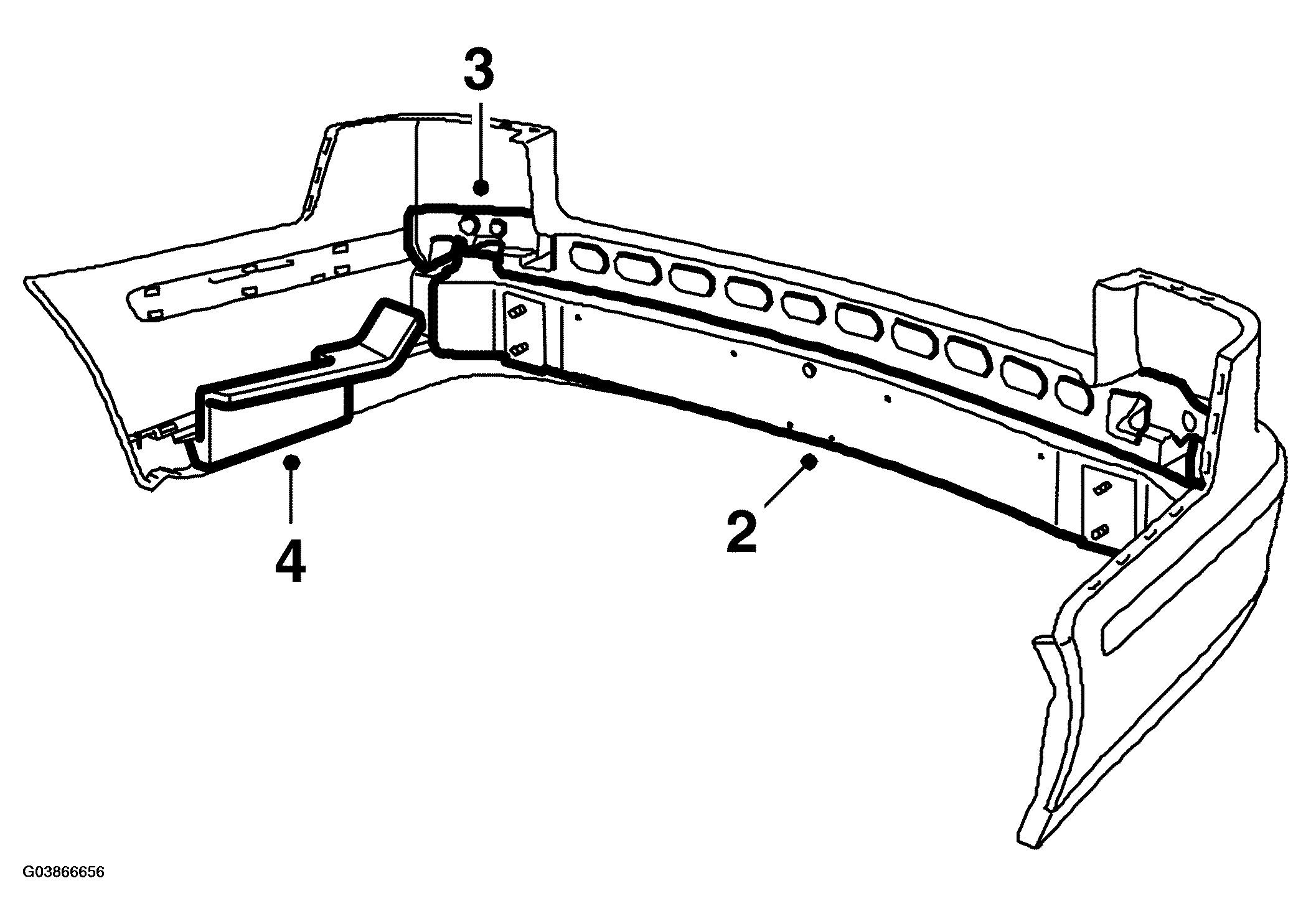

    Fig 2: Illustration For Step 2-4
    G03866656Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: The rail should be guided in place with a locating stud in the protective shell.
  3. Fit the upper cellular block.
  4. Fit the two cellular blocks on the sides of the protective shell.
  5. Fit the bumper on the car. See REAR BUMPER, 4D  .
