To remove

  1. Remove the center grille as follows:
    1. 1.A. Lift it slightly to loosen the bottom.
    2. 1.B. Pull it forward and down so that the spring clips loosen.

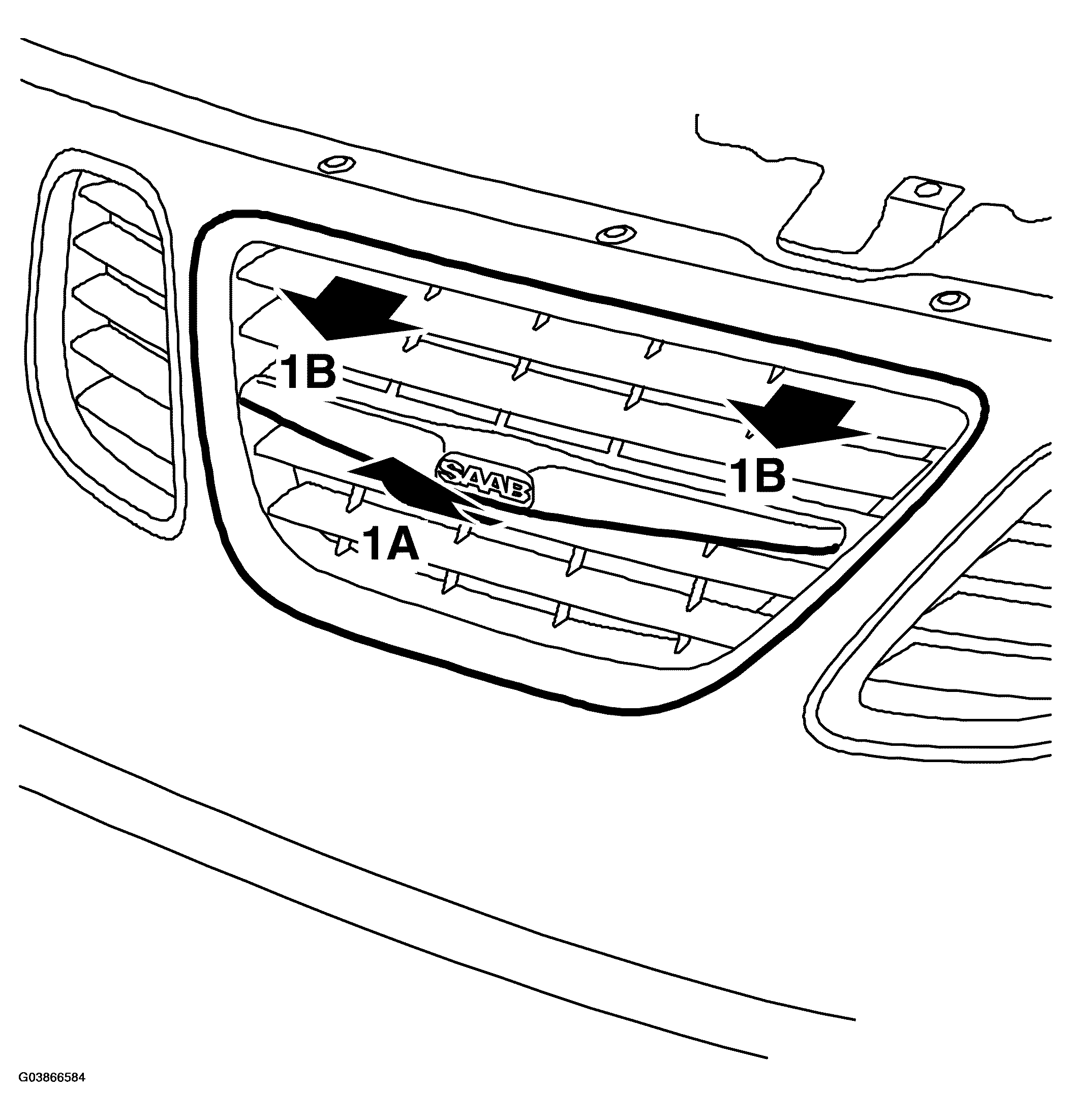

      Fig 1: Illustration For Step 1
      G03866584Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the side grille from the back by bending up the lower clips so that they loosen. Lift away the side grille.

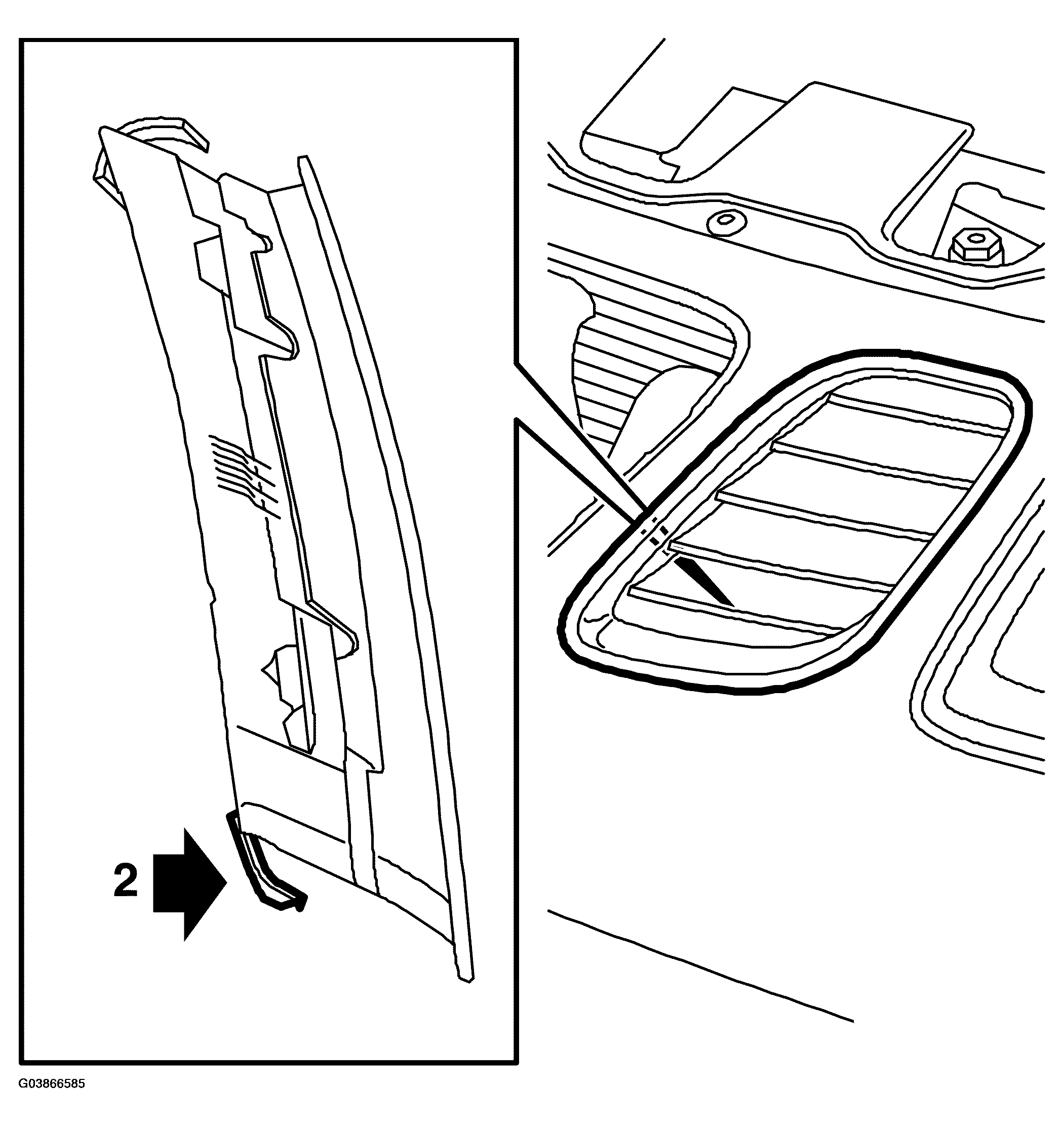

    Fig 2: Illustration For Step 2
    G03866585Courtesy of SAAB-SCANIA OF AMERICA, INC.
