Measurements, body rear, side

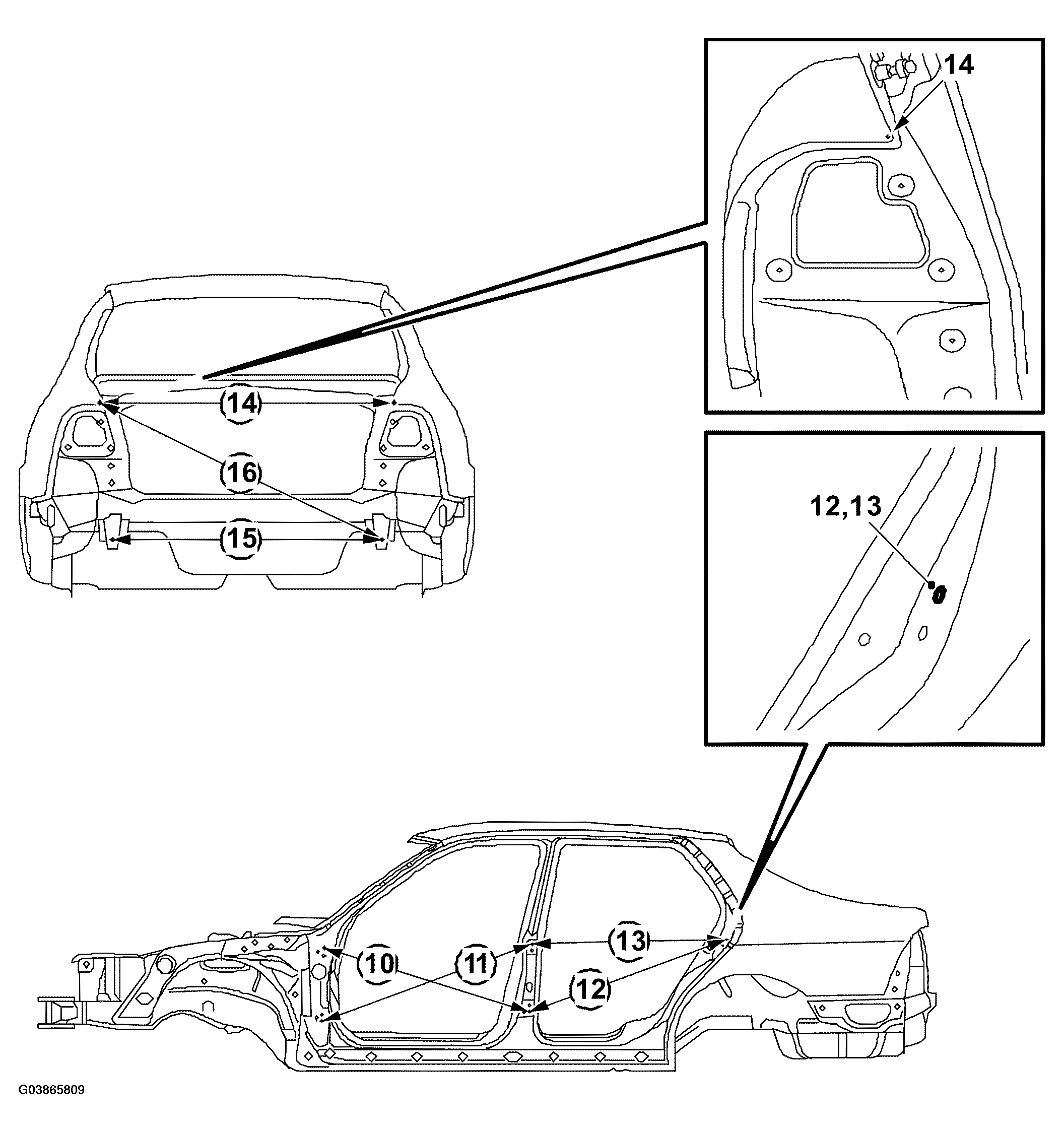

Fig 1: Identifying Measurements Of Body Rear Side

Courtesy of SAAB-SCANIA OF AMERICA, INC.

BODY DIMENSIONS AND MEASURING POINTS (BODY REAR, SIDE)

Pos

Dimension, mm

Measuring points

1102+/-1

Upper hole, front hinge ⁽¹⁾ - Lower hole, rear hinge ⁽¹⁾

1146+/-1

Lower hole, front hinge ⁽¹⁾ - Upper hole, rear hinge ⁽¹⁾

1006+/-1

Lower hole, rear hinge ⁽¹⁾ - Upper hole, striking plate, rear door ⁽¹⁾

941+/-1

Upper hole, rear hinge ⁽¹⁾ - Upper hole, striking plate, rear door ⁽¹⁾

1177+/-1

Distance between rear side panels, lower rear corner

1054+/-1

Distance between lower holes for bumper ⁽¹⁾

1237+/-1

Rear side panel, lower rear corner - Lower hole for bumper, diagonal ⁽¹⁾

⁽¹⁾	= dimension is measured from the center of the hole.
