Measurements, body rear 5D

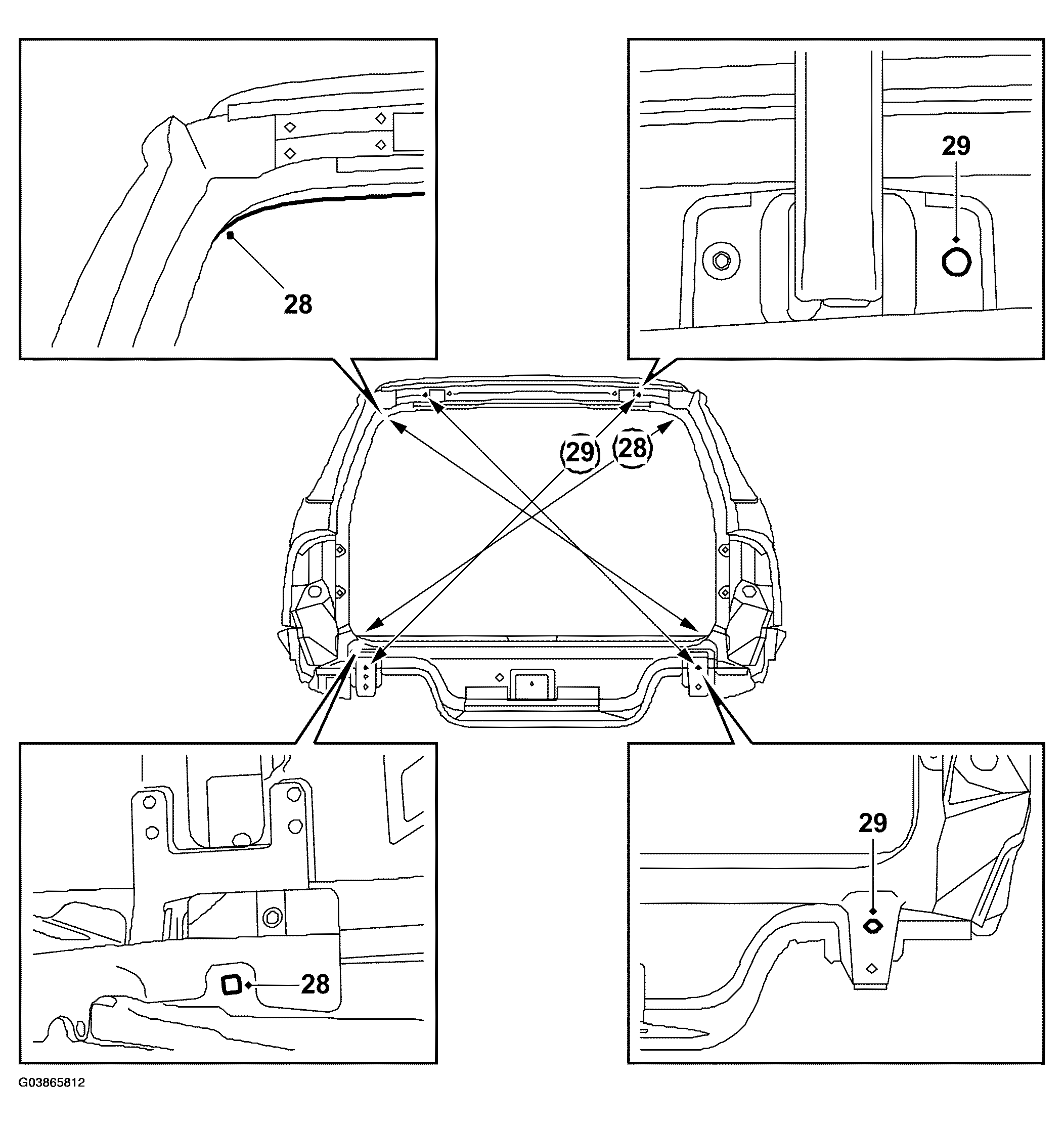

Fig 1: Identifying Measurements Of Body Rear 5D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

BODY DIMENSIONS AND MEASURING POINTS (BODY REAR 5D)

Pos

Dimension, mm

Measuring points

1272+/-1

Square hole for scuff plate clip ⁽¹⁾ - Inner radius, top of luggage compartment opening where dimension is greatest.

1320+/-1

Upper hole for bumper ⁽¹⁾ - Outer hole for tailgate hinge ⁽¹⁾

⁽¹⁾	= dimension is measured from the center of the hole.
