Measurements, body below

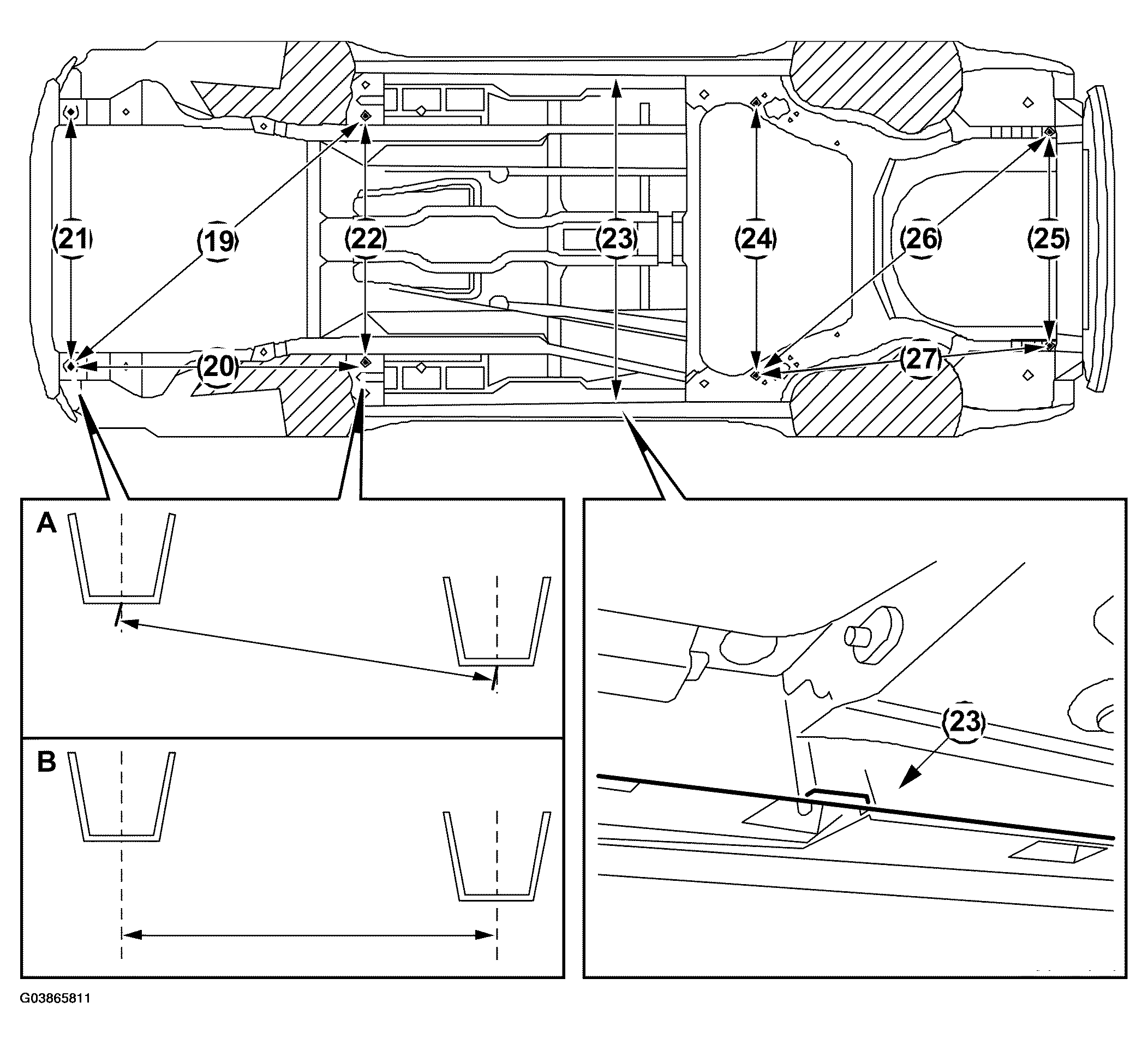

Fig 1: Identifying Measurements Of Body Below

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Illustration A shows the correct measuring direction for measurements 19, 20, 26 and 27

Illustration B shows the incorrect measuring direction for measurements 19, 20, 26 and 27

BODY DIMENSIONS AND MEASURING POINTS (BODY BELOW)

Pos

Dimension, mm

Measuring points

1528+/-1

Hole in wheel housing, behind collision box ⁽¹⁾ - Hole in floor reinforcement, inner hole, diagonal ⁽¹⁾ .

1171+/-1

Hole in wheel housing, behind collision box ⁽¹⁾ - Hole in floor reinforcement, inner hole ⁽¹⁾ .

964+/-1

Hole in wheel housing, behind collision box RH side ⁽¹⁾ - Hole in wheel housing, behind collision box LH side ⁽¹⁾ .

1000+/-1

Hole in floor reinforcement, inner hole RH side ⁽¹⁾ - Hole in floor reinforcement, inner hole LH side ⁽¹⁾ .

1350+/-1

Distance between ribs underneath door sill (refers to max. distance between pressing).

1258+/-1

Hole in frame member ahead of rear axle mounting RH side ⁽¹⁾ - Hole in frame member ahead of rear axle mounting LH side ⁽¹⁾

1053+/-1

Hole in frame member ahead of collision box, rear bumper abutment RH side ⁽¹⁾ - Hole in frame member ahead of collision box, rear bumper abutment LH side ⁽¹⁾

1756+/-1

Hole in frame member ahead of rear axle mounting ⁽¹⁾ - Hole in frame member ahead of collision box, rear bumper abutment diagonal ⁽¹⁾ .

1327+/-1

Hole in frame member ahead of rear axle mounting ⁽¹⁾ - Hole in frame member ahead of collision box, rear bumper abutment ⁽¹⁾ .

⁽¹⁾	= dimension is measured from the center of the hole.
