Measurements, body above

These measurements are suitable for determining if the car should be mounted in an alignment bench.

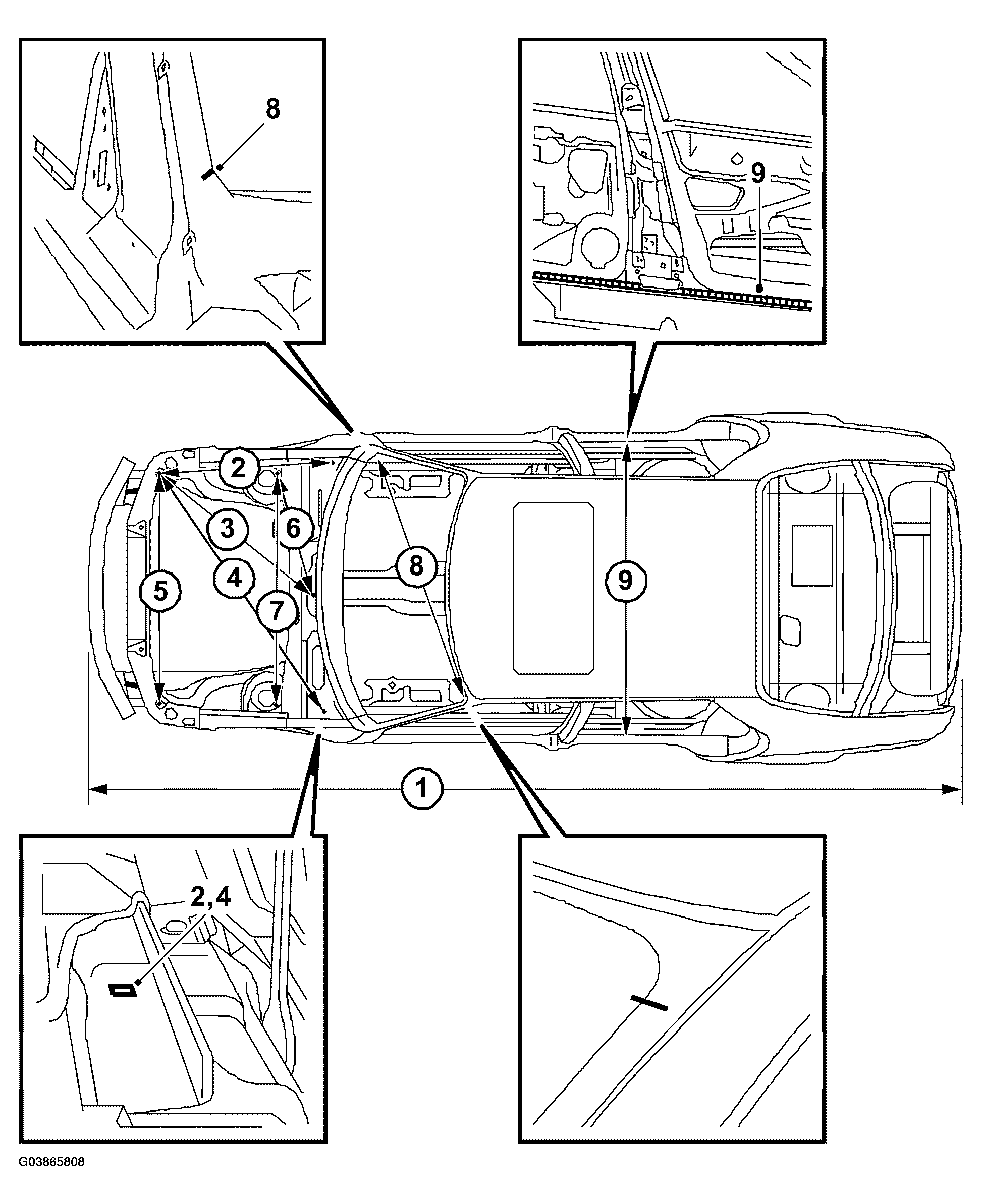

Fig 1: Identifying Measurement Of Body Above

Courtesy of SAAB-SCANIA OF AMERICA, INC.

BODY DIMENSIONS AND MEASURING POINTS (BODY ABOVE)

Pos

Dimension, mm

Measuring points

4508

Total length. Front bumper member - Rear bumper bracket

885+/-1

Hole for rubber buffer ⁽¹⁾ - Hole for plastic clip, windscreen cover ⁽¹⁾

1010+/-1

Hole for rubber buffer ⁽¹⁾ - Front hole in windscreen wiper mechanism bracket ⁽¹⁾

1593+/-1

Hole for rubber buffer ⁽¹⁾ - Hole for plastic clip, windscreen cover, diagonal ⁽¹⁾

1240+/-1

Hole for rubber buffer RH side ⁽¹⁾ - Hole for rubber buffer LH side ⁽¹⁾

642+/-1

Outer rear hole, MacPherson strut ⁽¹⁾ - Front hole in holder. windscreen wiper mechanism ⁽¹⁾

1232+/-1

Outer rear hole, MacPherson strut, RH side ⁽¹⁾ - Outer rear hole, MacPherson strut, LH side ⁽¹⁾

1429+/-1

Lower section A -pillar - Upper section A -pillar, diagonally

1499+/-1

Distance between weatherstrip ribs on top of door sill

⁽¹⁾	= dimension is measured from the center of the hole.
