Measurements, body B-pillar

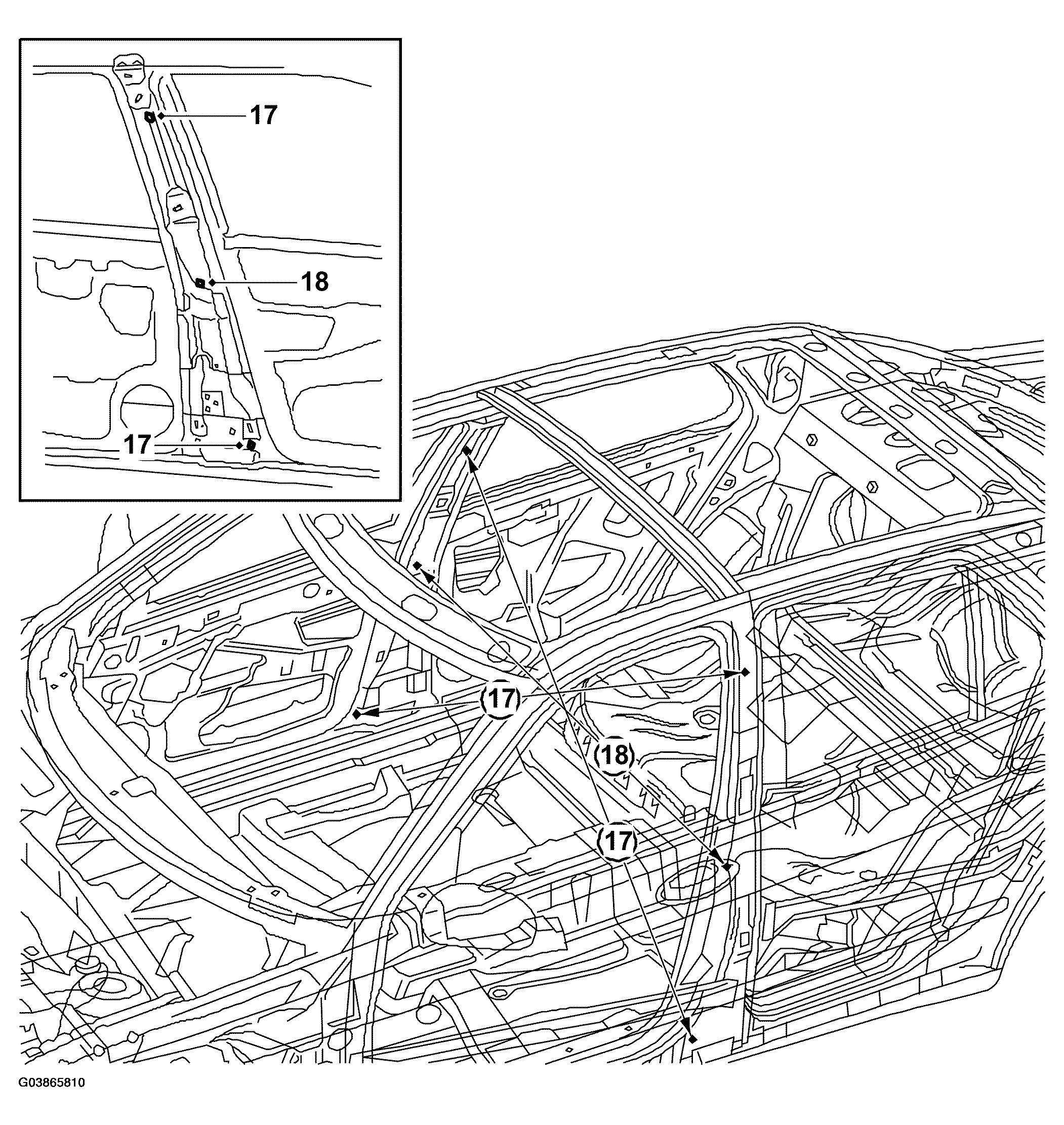

Fig 1: Identifying Measurements Of Body B-Pillar

Courtesy of SAAB-SCANIA OF AMERICA, INC.

BODY DIMENSIONS AND MEASURING POINTS (BODY B-PILLAR)

Pos

Dimension, mm

Measuring points

1611+/-1

Elongated hole under seat-belt bolt ⁽¹⁾ - Large hole at front of B-pillar under elongated hole for B-pillar trim retaining clip ⁽¹⁾

1504+/-1

Distance between holes RH - LH side ⁽¹⁾

⁽¹⁾	= dimension is measured from the center of the hole.
