Section of rear floor 5D: Removing

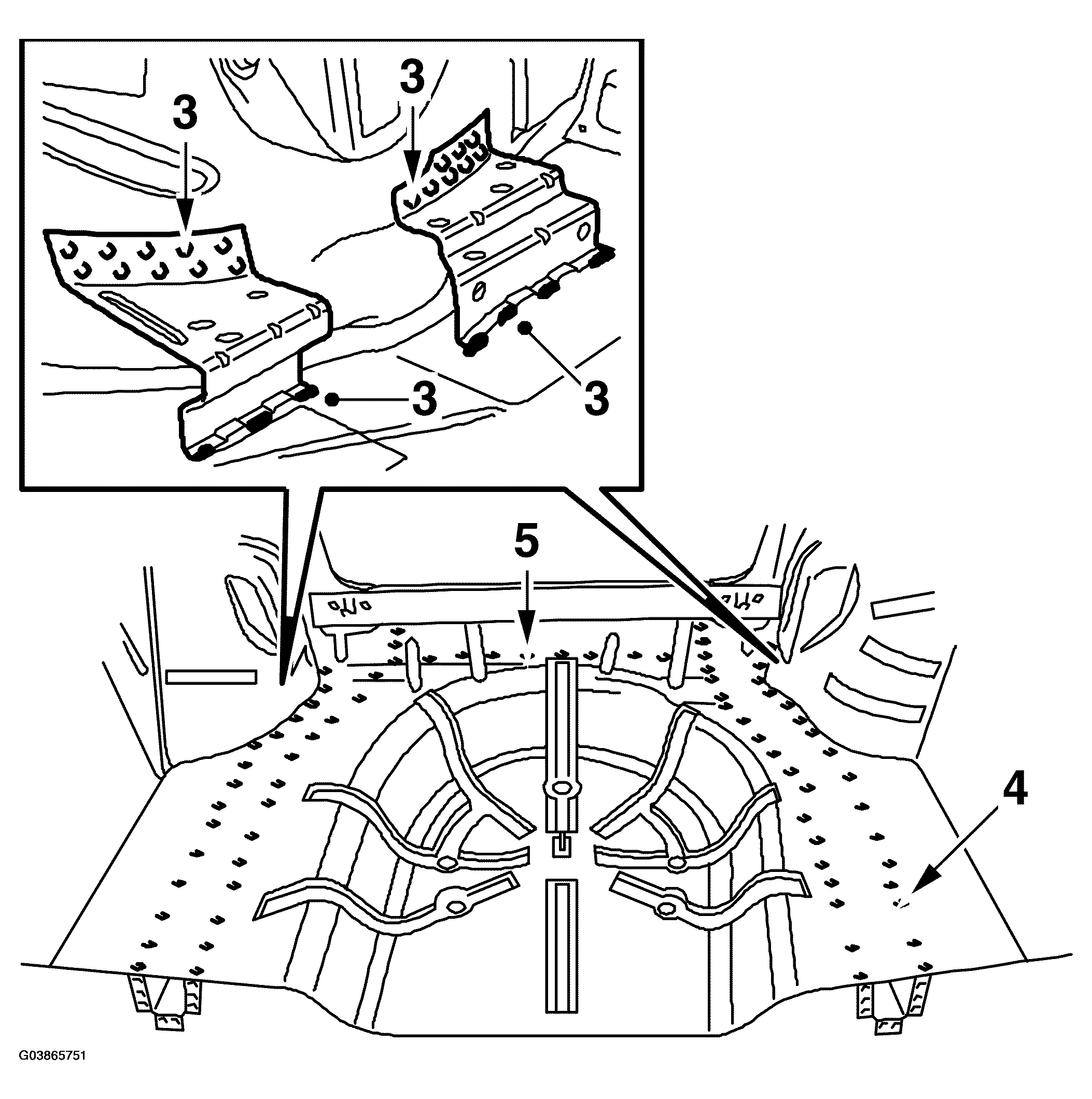

Fig 1: Illustration For Step 3-5
G03865751Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the car in an aligning bench and cross-measure if necessary.
  2. Remove the rear plate.
  3. Drill out the spot welds and grind down the seam welds for the luggage compartment reinforcements.

    Lift away the reinforcements.

  4. Drill out the spot-welds that secure the floor to the frame members.
  5. Drill out the rear spot-welds in the cross -member.
  6. Drill out the spot-welds holding the sides of the floor.

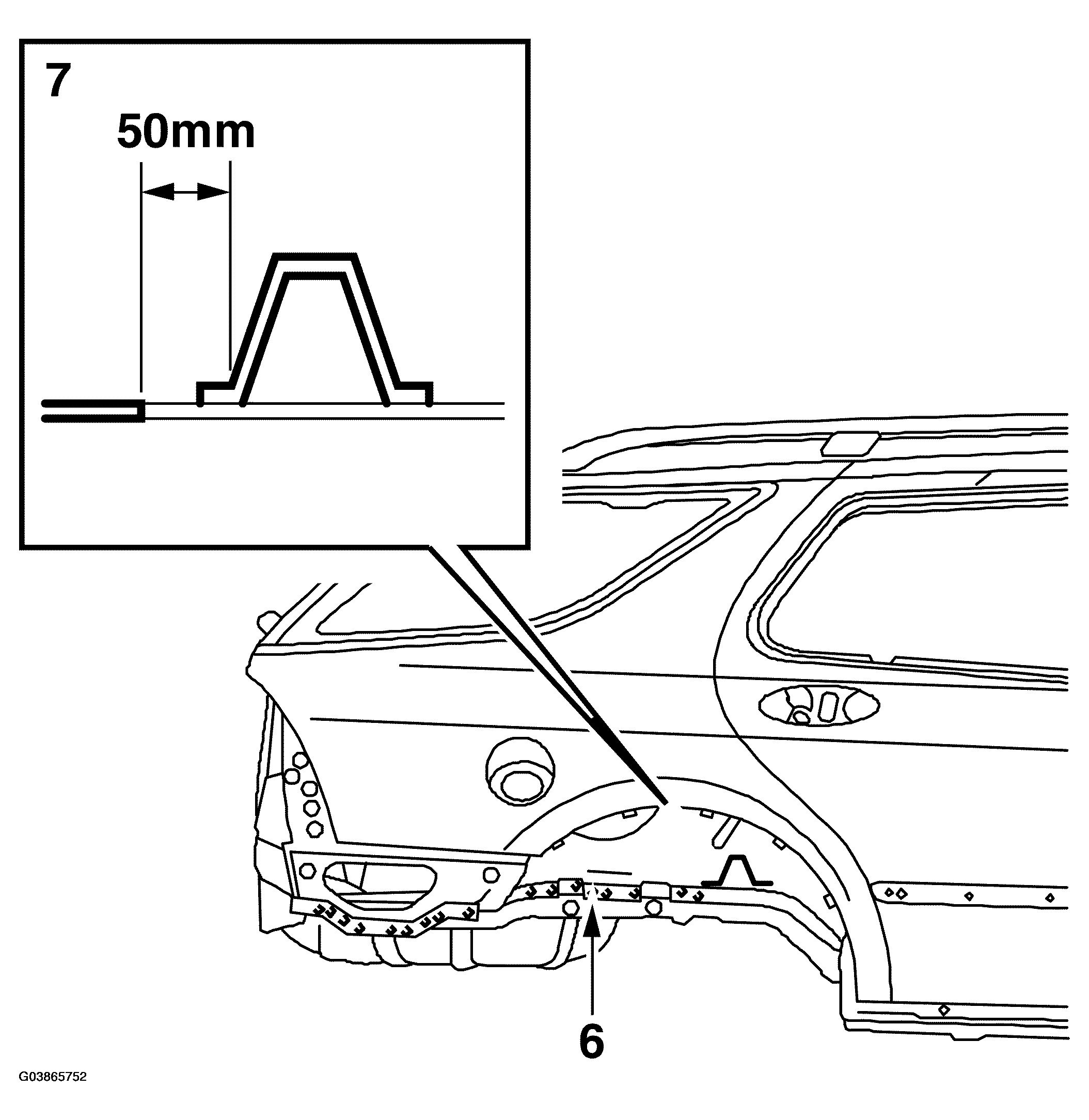

    Fig 2: Illustration For Step 6
    G03865752Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Measure 50 mm from the cross-member where the floor is to be cut.
  8. Cut away the rear floor and remove it.
  9. Align any deformed sheet metal or panels.
