Section of front wheel housing: Removing

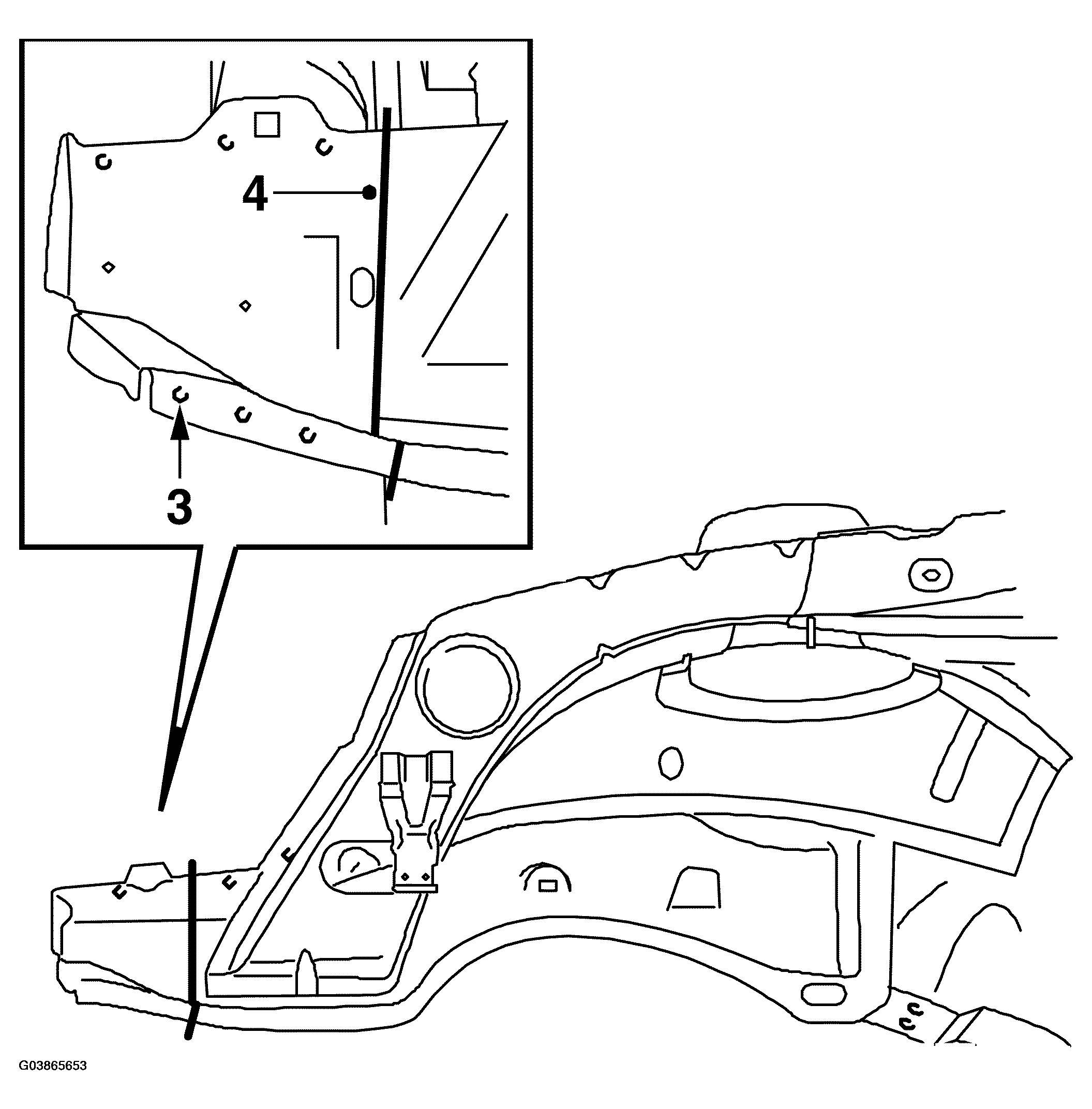

Fig 1: Illustration For Step 3-4
G03865653Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front wing.
  2. Remove the bumper member.
  3. Drill out the spot-welds from the outer wheel housing panel.
  4. Cut the wheel housing panel.
