Section of front wheel housing: Fitting

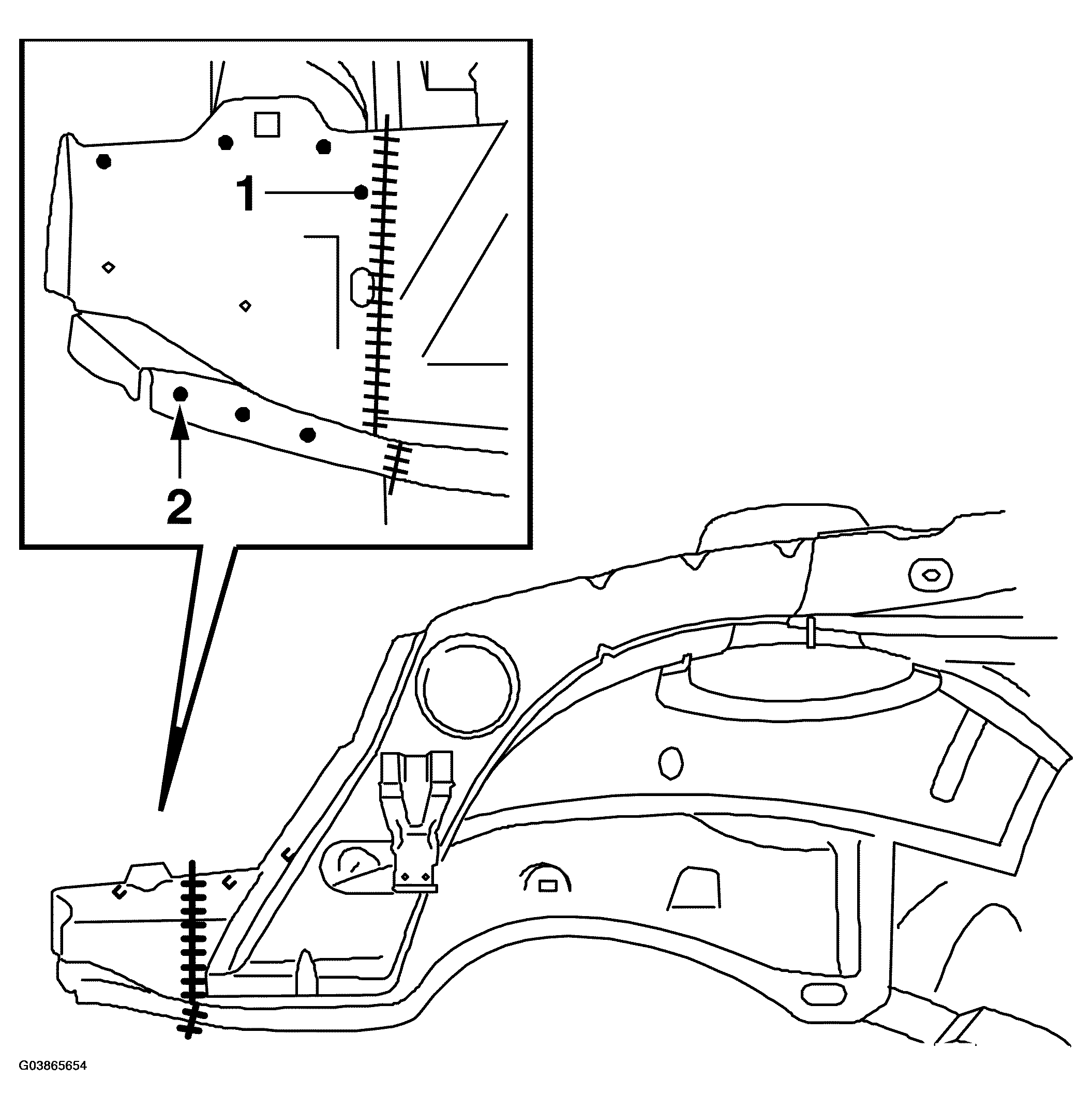

Fig 1: Illustration For Step 1-2
G03865654Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Cut the new wheel housing panel to fit.
  2. Apply welding primer to the surfaces that are to be welded.
  3. Fit the wheel housing panel and fixate with a couple of welding clamps.
  4. Weld on the wheel housing panel.
  5. Smooth off the welds.
  6. Fit the bumper member.
  7. Remove any remaining welding primer. Welding primer reduces adhesion of paint, filler and sealant.
  8. Apply primer to all bare metal surfaces.
  9. Seal joints and seams with sealant.
  10. Apply underseal to the underbody and in the wheel housing after painting. Use Terostat 9320.
  11. Apply anti-corrosion agent to the interior of the frame member after painting. Use Terotex HV 400 or Mercasol 1.
