Section of front wheel housing with reinforcement: Removing

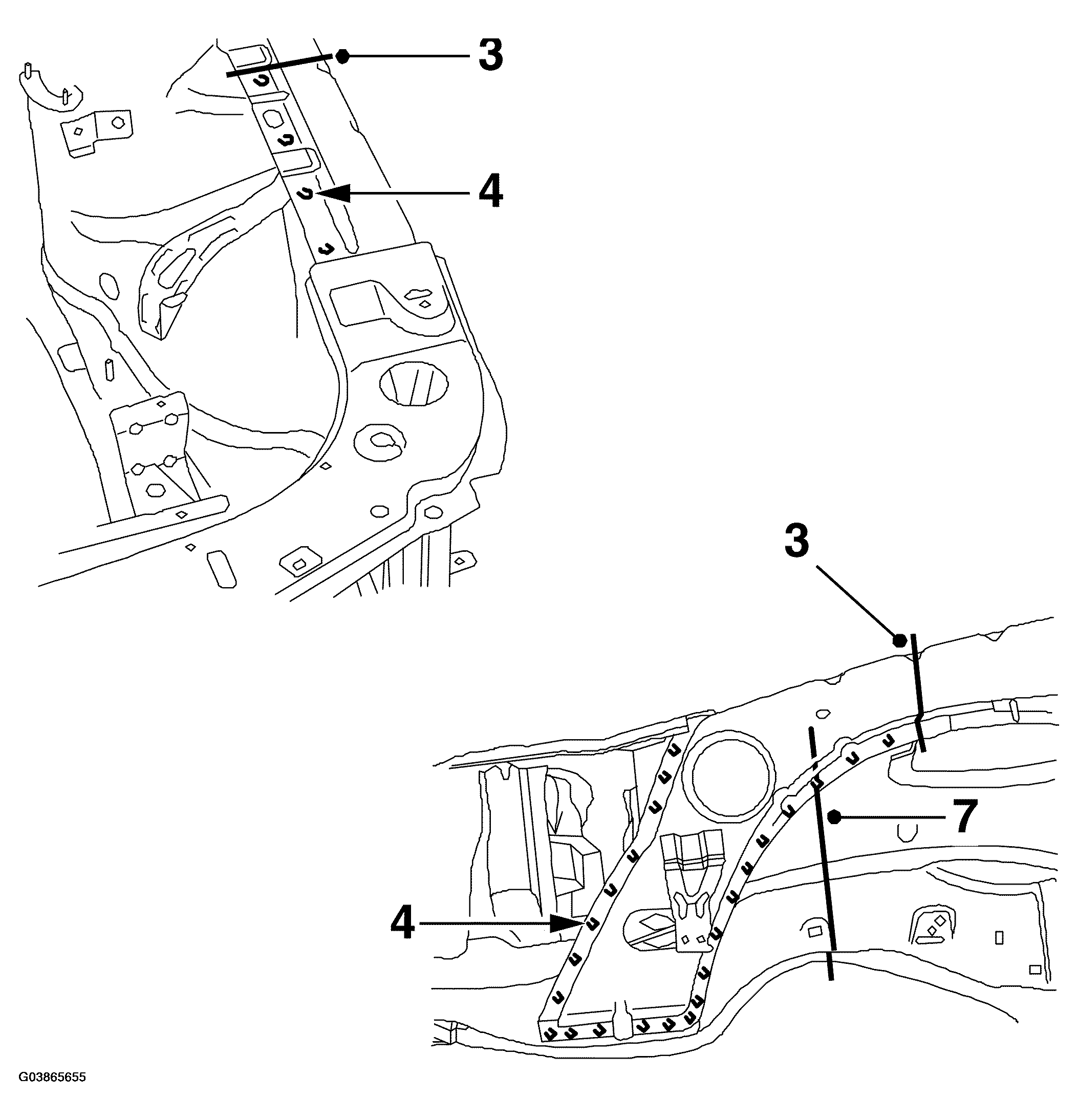

Fig 1: Illustration For Step 3-4, 7

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Mount the car in an alignment bench and align if necessary.
2. Remove the front wing.
3. Cut the front wheel housing reinforcement at the center impact score.
   NOTE: The complete wheel housing reinforcement can be changed but then the outer reinforcing plate must first be removed.
4. Drill out the spot-welds.
5. Remove the reinforcement.
6. Drill out the spot-welds from the damaged part of the wheel housing panel.
7. Cut the damaged wheel housing panel at a convenient point.
