Roof member, rear 5D: Fitting

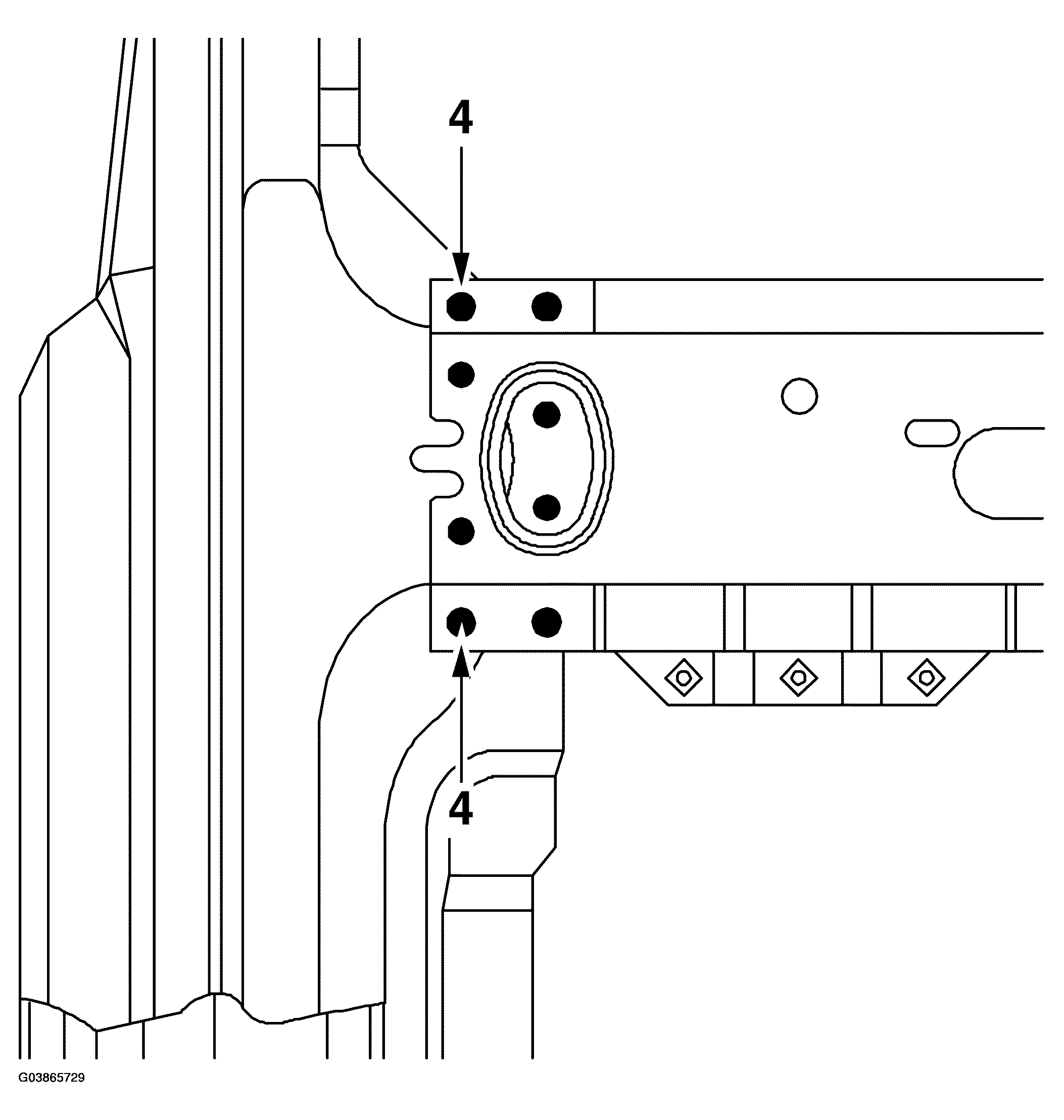

Fig 1: Illustration For Step 4
G03865729Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Grind all the surfaces that are to be welded.
  2. Apply welding primer to the surfaces that are to be welded.
  3. Position the roof member and fix it with a few welding clamps.
  4. Spot weld the roof member in place.
  5. Remove any remaining welding primer. Welding primer reduces adhesion of paint, filler and sealant.
  6. Fit the roof. See ROOF 5D
