Roof member, rear 4D: Removing

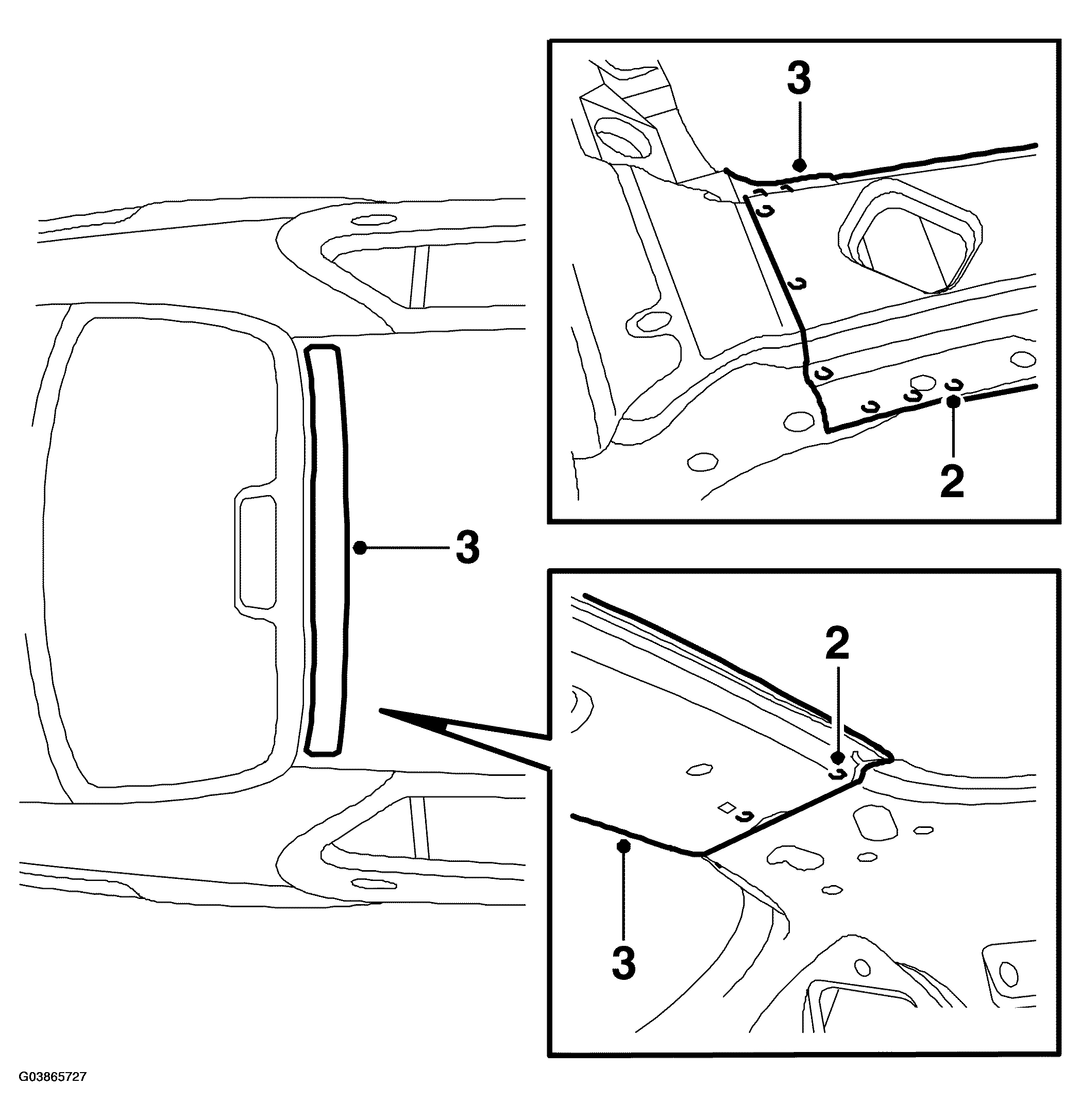

Fig 1: Illustration For Step 2-3
G03865727Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the roof. See ROOF 4D  .
  2. Drill out the spot-welds at the corners.
  3. Knock away the roof member and straighten any deformed metalwork.
