Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Exterior Trim >> Body - 9-5 >> Adjustment-Replacement >> Roof member, hinge member 5D >> Removing

Roof member, hinge member 5D: Removing

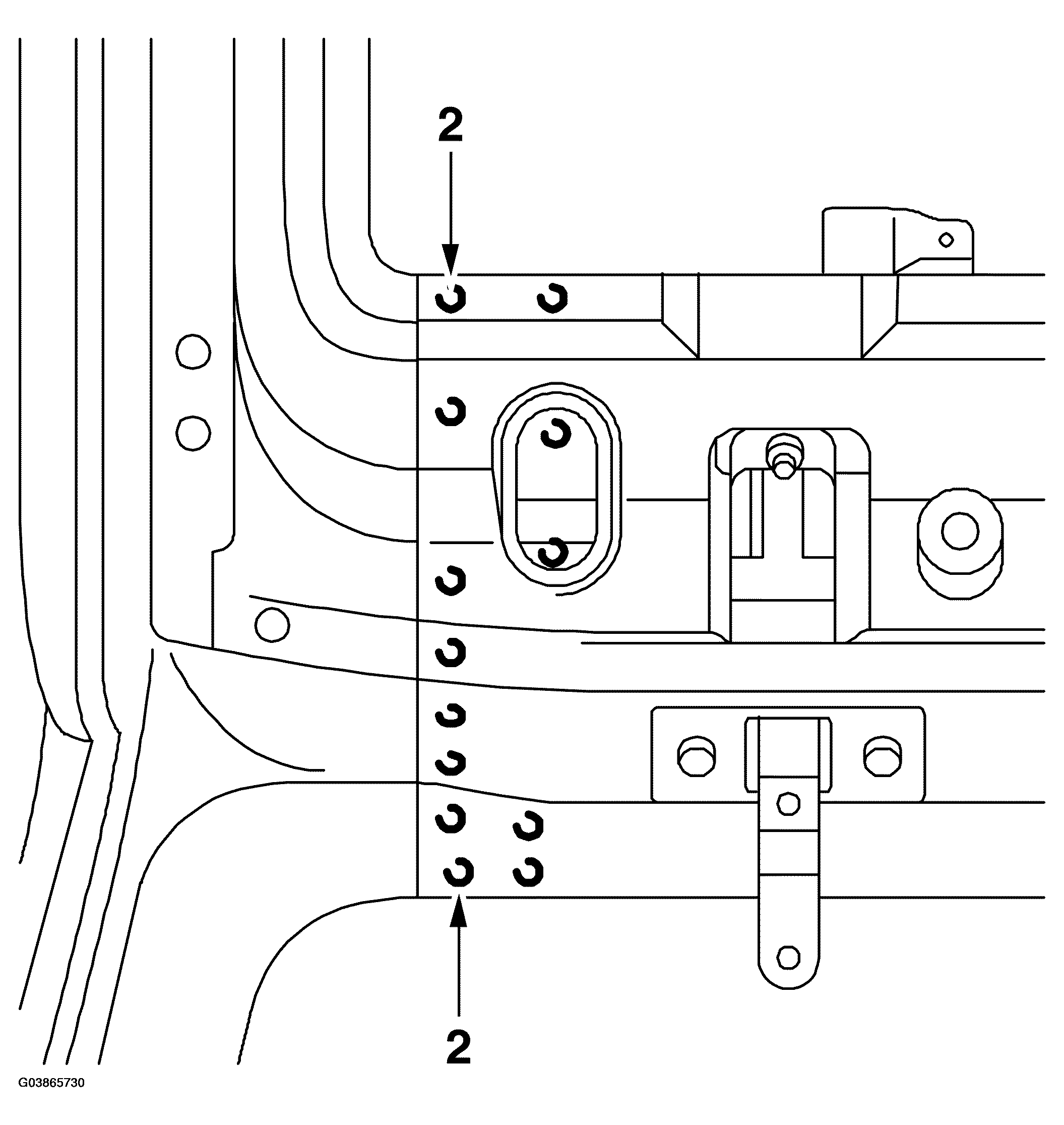

Fig 1: Illustration For Step 2
G03865730Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the roof. See ROOF 5D  .
  2. Drill out the spot-welds at the corners.
  3. Knock away the roof member and straighten any deformed metalwork.
