Roof 4D: Removing

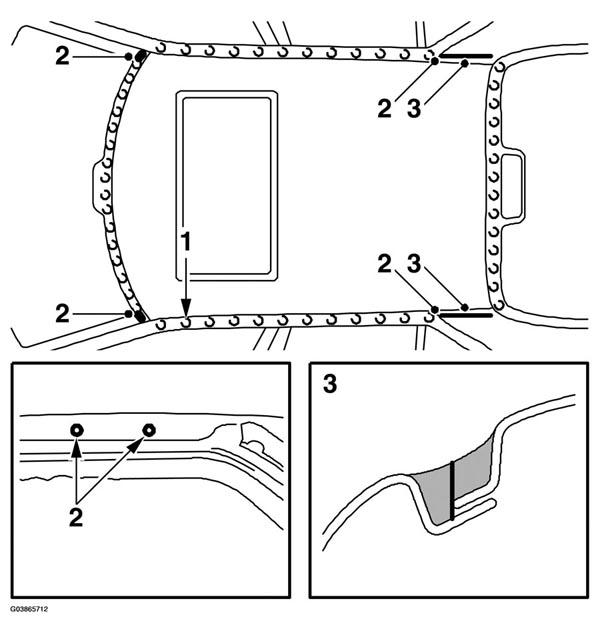

Fig 1: Illustration For Step 2-3
G03865712Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Drill out the spot-welds.
  2. Grind down the welds holding the roof to the A and C pillars. Drill out or grind down the nuts for the carrier racks at the edge of the roof.
  3. Make a cut in the middle of the adhesive string between the roof and the outer side panel.
  4. Tap loose the roof and align any damaged sheet metal and panels.
