Replacement of putty in C-pillar seal against roof, 4D: Replacement

  1. Remove the upper part of the roof moulding.
  2. Bend up the seal lip of the rubber moulding. Place masking tape between the rubber moulding and the roof panel.
  3. Use masking tape to attach the seal lip of the rubber moulding to the rear window.
  4. Cover the rear seat upholstery to protect from dirt.
  5. Cover the edge of the side panel and roof radii to protect the paint.

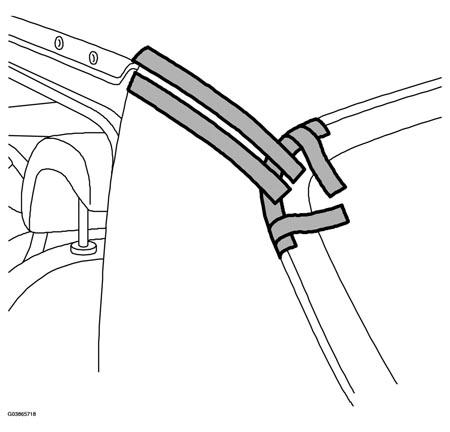

    Fig 1: Covering Edge Of Side Panel And Roof Radii
    G03865718Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Cut away the center section of putty using tool 82 93 193 CHISELLING TOOL, SMALL  .

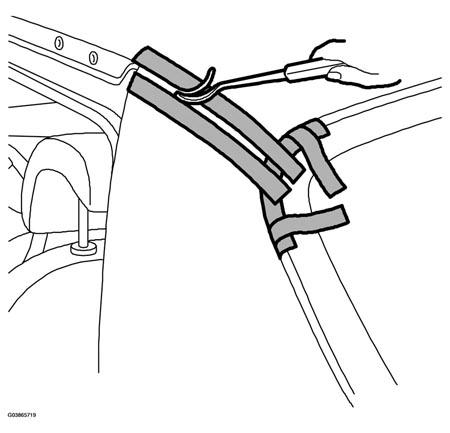

    Fig 2: Cutting Centre Section Of Putty Using Tool
    G03865719Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Use 82 93 474 REMOVAL TOOL  to cut away the rest of the putty. Angle the plastic spackle to facilitate putty removal. Be sure to remove all the putty at the bottom of the joint.

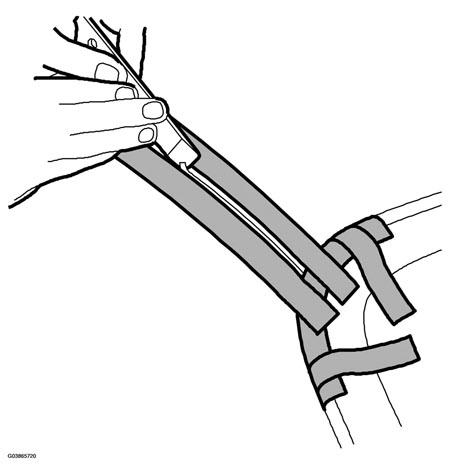

    Fig 3: Cutting Centre Section Of Putty
    G03865720Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the masking tape from the side panel and roof.
  9. Roughen the paint in the roof joint against the side panel and the roof with fine grinding paper (Do not grind down to the primer above the radii of the roof and side panels).
    NOTE: Be careful not to damage the paint on the side panel and roof radii.

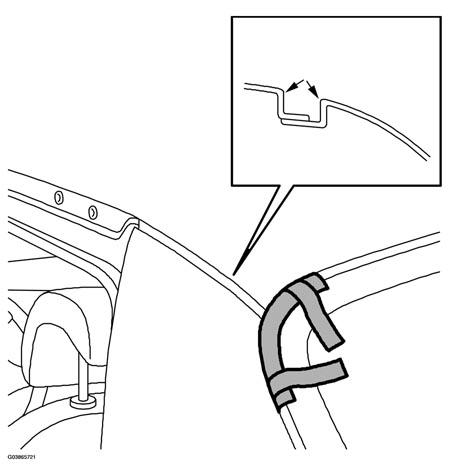

    Fig 4: Roughening Paint In Roof Joint
    G03865721Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Wipe clean with Teroson FL T875.

    Repeat points 1-10 to repair the other side.

  11. If the primer is damaged, apply an etching primer on all bare metal surfaces.
  12. Apply new material Teroson Teromix 6700 T305
  13. Use 82 93 730 PLASTIC SCRAPER  to remove excess material. Adjust the shape against the rear window and roof mouldings.

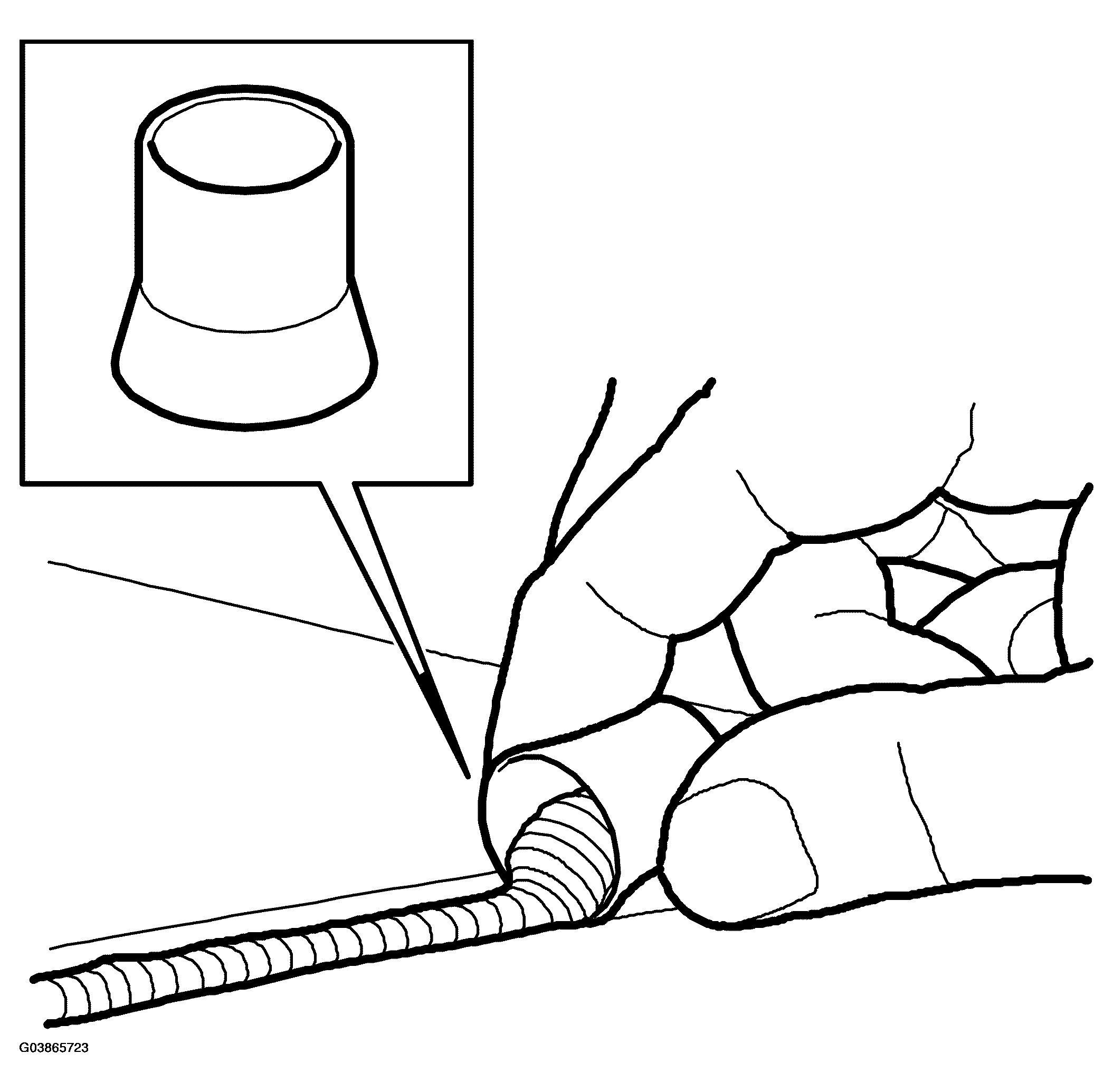

    Fig 5: Applying Material Teroson Teromix 6700 T305
    G03865723Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Inspect the joint in respect of quality and finish.
  15. Repeat points 11-15 to repair the other side.
  16. Allow the material to harden 2 hours at a minimum of 20° C (68 °F).
  17. After hardening, check the joint as regards quality and finish.
  18. Affix masking tape and apply primer.
  19. Polish the paint joint and remove the masking.
  20. Heat the rubber moulding of the rear window to 80°-100°C (176°-212°F) using a heat gun so that the moulding resumes its ordinary shape.
  21. Fit the roof moulding and check the seal finish once again. Make sure there are no traces of grinding or paint dust.
  22. Vacuum the car and remove the cover from the rear seat.
