Rear roof rivet: Removing

Remove the rear courtesy handle by bending back the covers with a small screwdriver and removing the two screws.

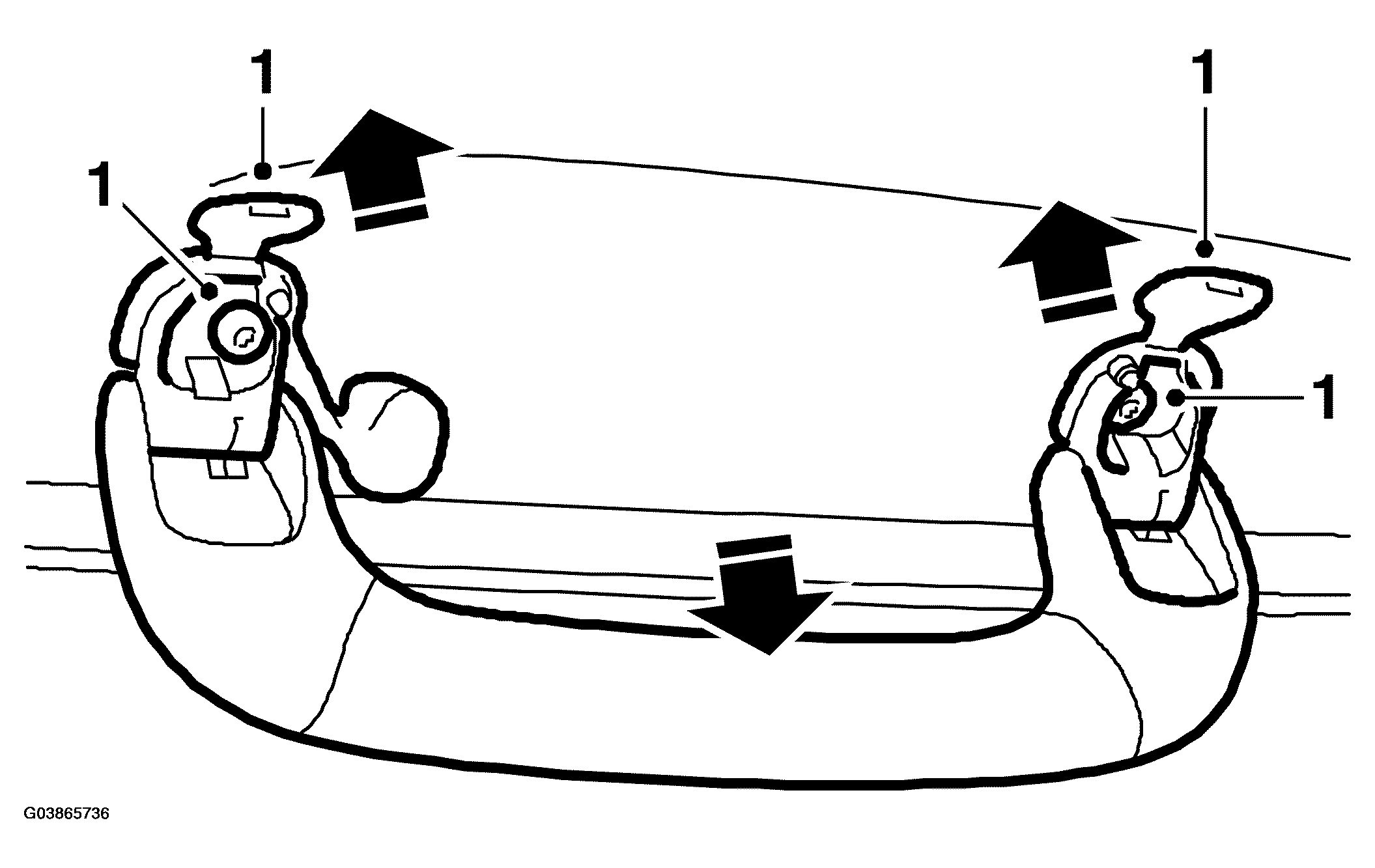

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Loosen the top edge of the B-pillar and C -pillar trim (secured with clips).

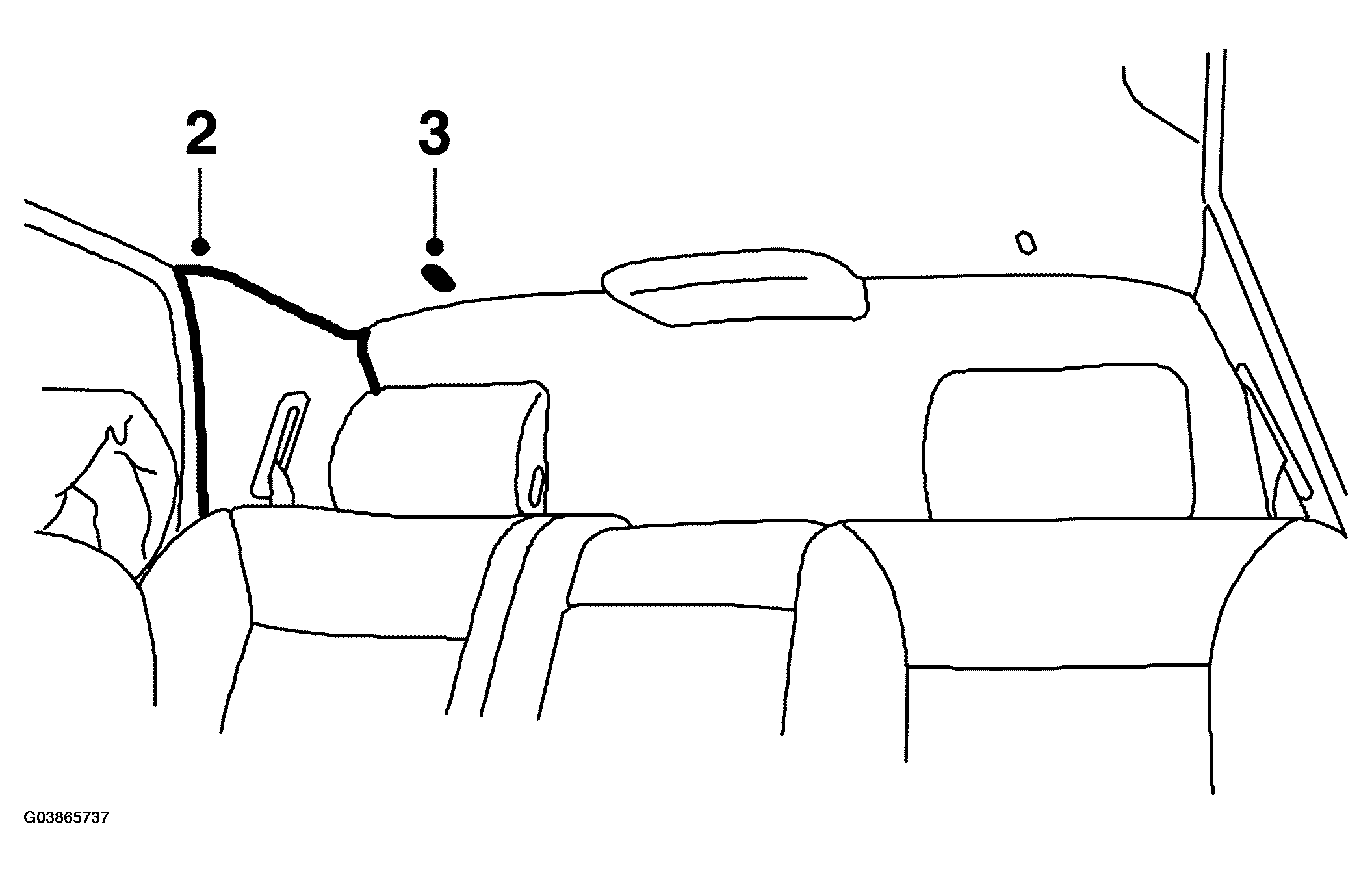

Fig 2: Illustration For Step 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the rear roof clip by turning it 90°.
Undo the roof moulding by the roof rivets.

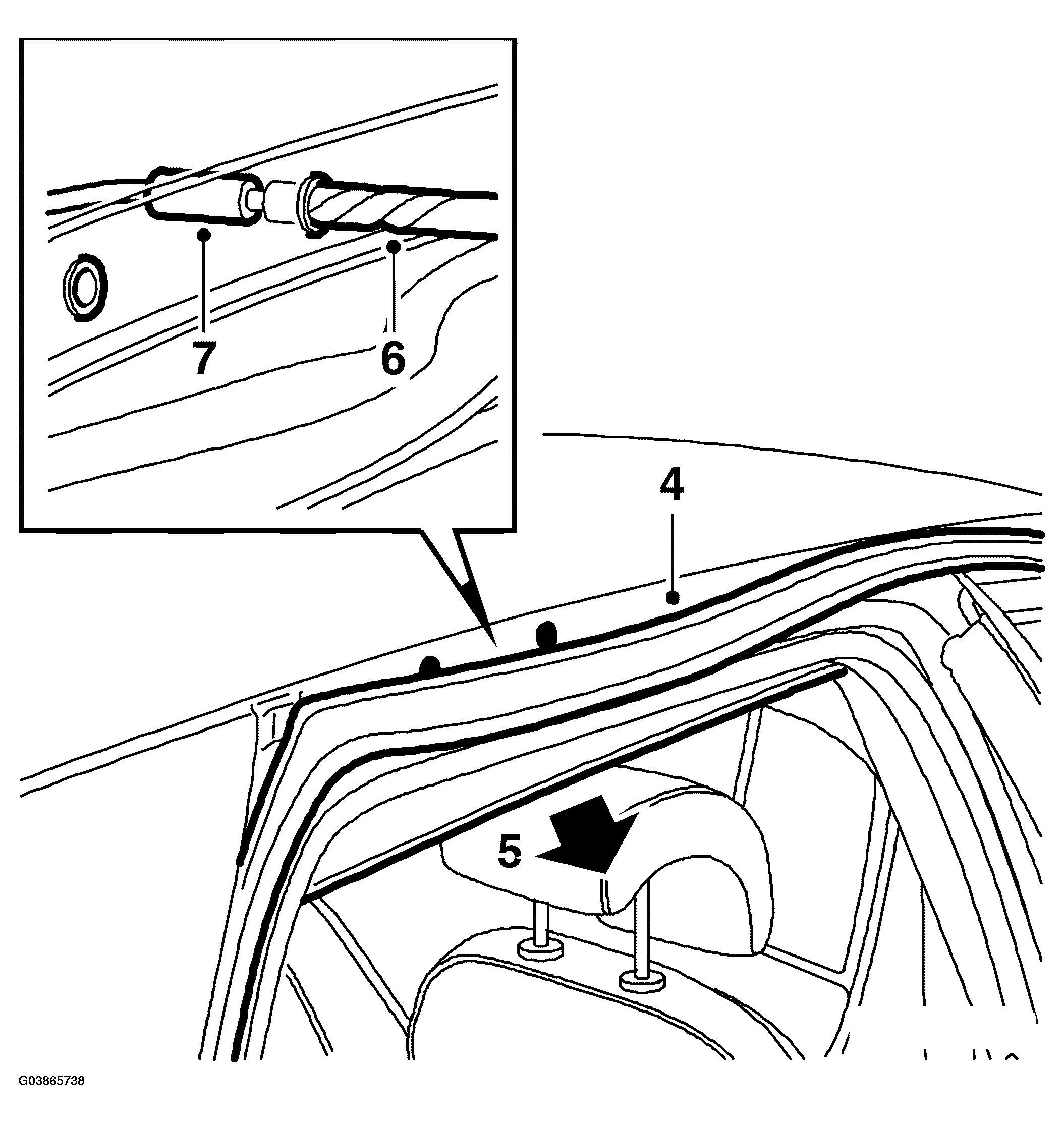

Fig 3: Illustration For Step 4-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Carefully bend down the headlining and place a magnet by the roof rive to be removed. The roof rivets can be accessed through the hole behind the headlining.
Drill away the head of the roof rivet with a 9 mm (0.35 in) drill.
If rusted, the rivet may spin with the drill, in which case grind down the roof rivet.
With the magnet, remove the drilled rivet through the hole behind the headlining.
