Rear roof rivet: Fitting

IMPORTANT: In case of rust: Blast/grind and clean with Teroson FL cleaner. Apply Standox 1K Fullprimer. Paint the area.

Apply light anti-corrosion agent around the hole and to the roof rivet.
Fit the roof rivet using rivet kit part no. (16) 82 92 617.

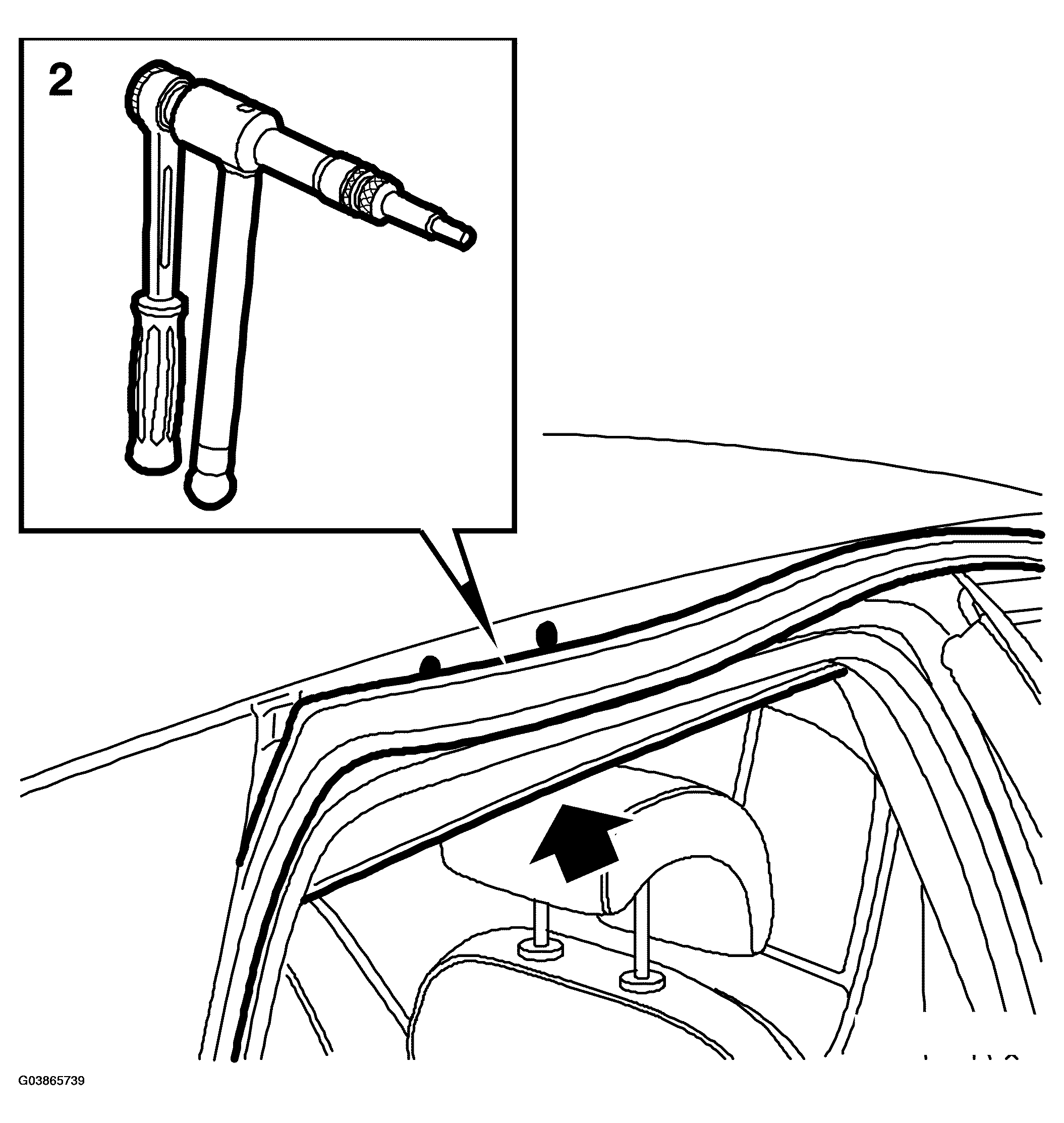

Fig 1: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refit the headlining and fit the rear courtesy handle.

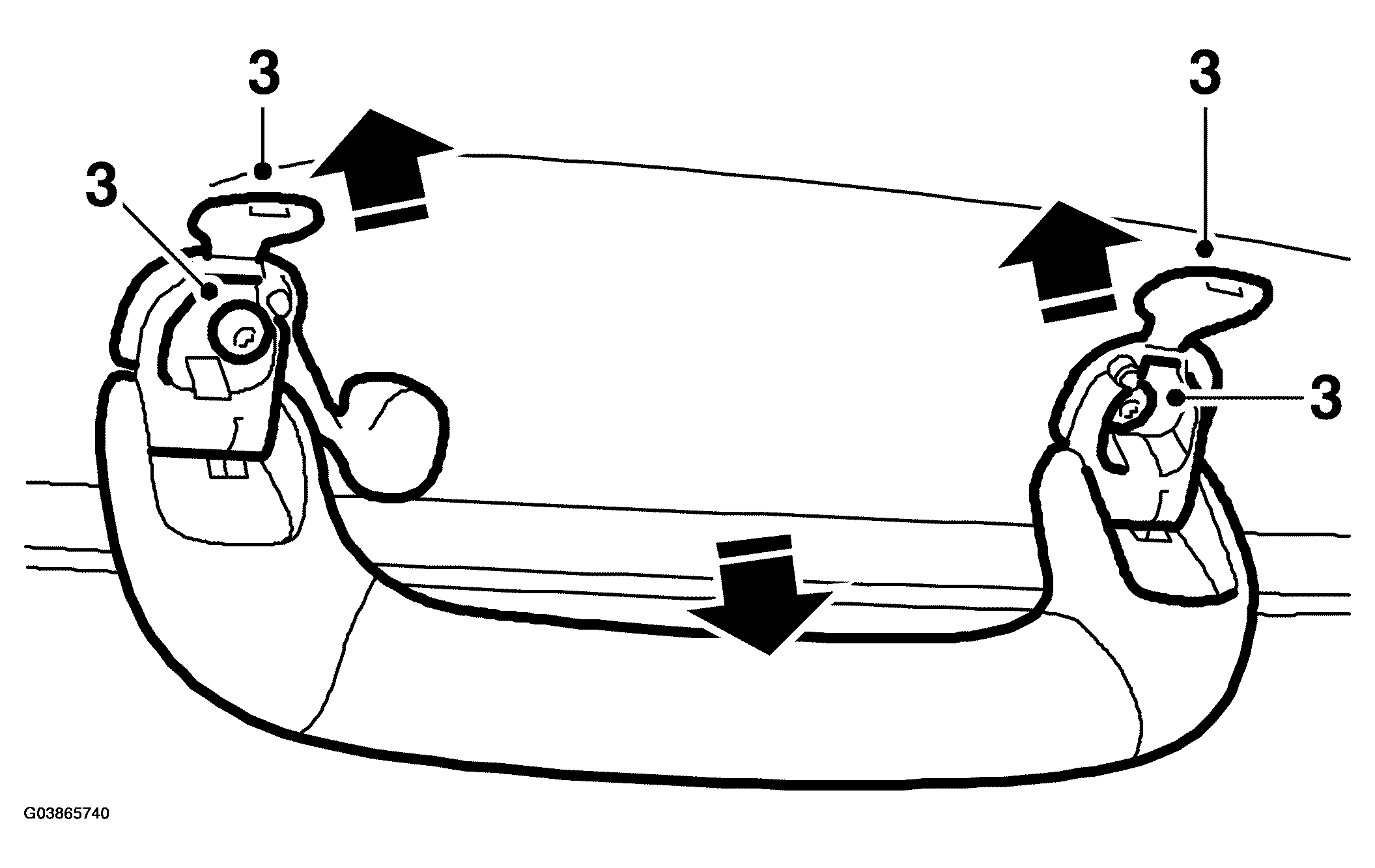

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refit the B-pillar and C -pillar trim.

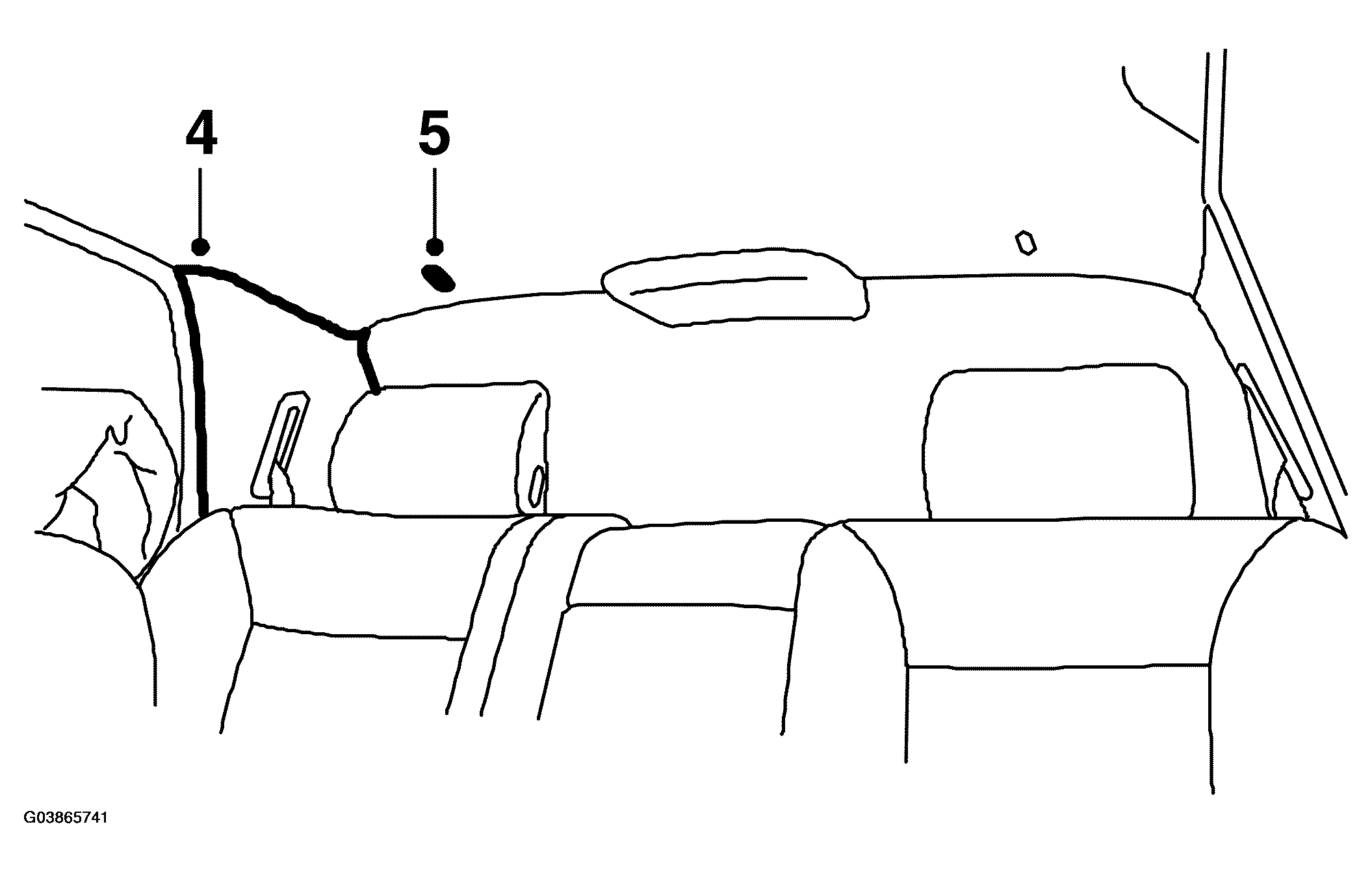

Fig 3: Illustration For Step 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refit the rear roof clip.
Refit the roof moulding.
