Rear outer wheel housing: Removing

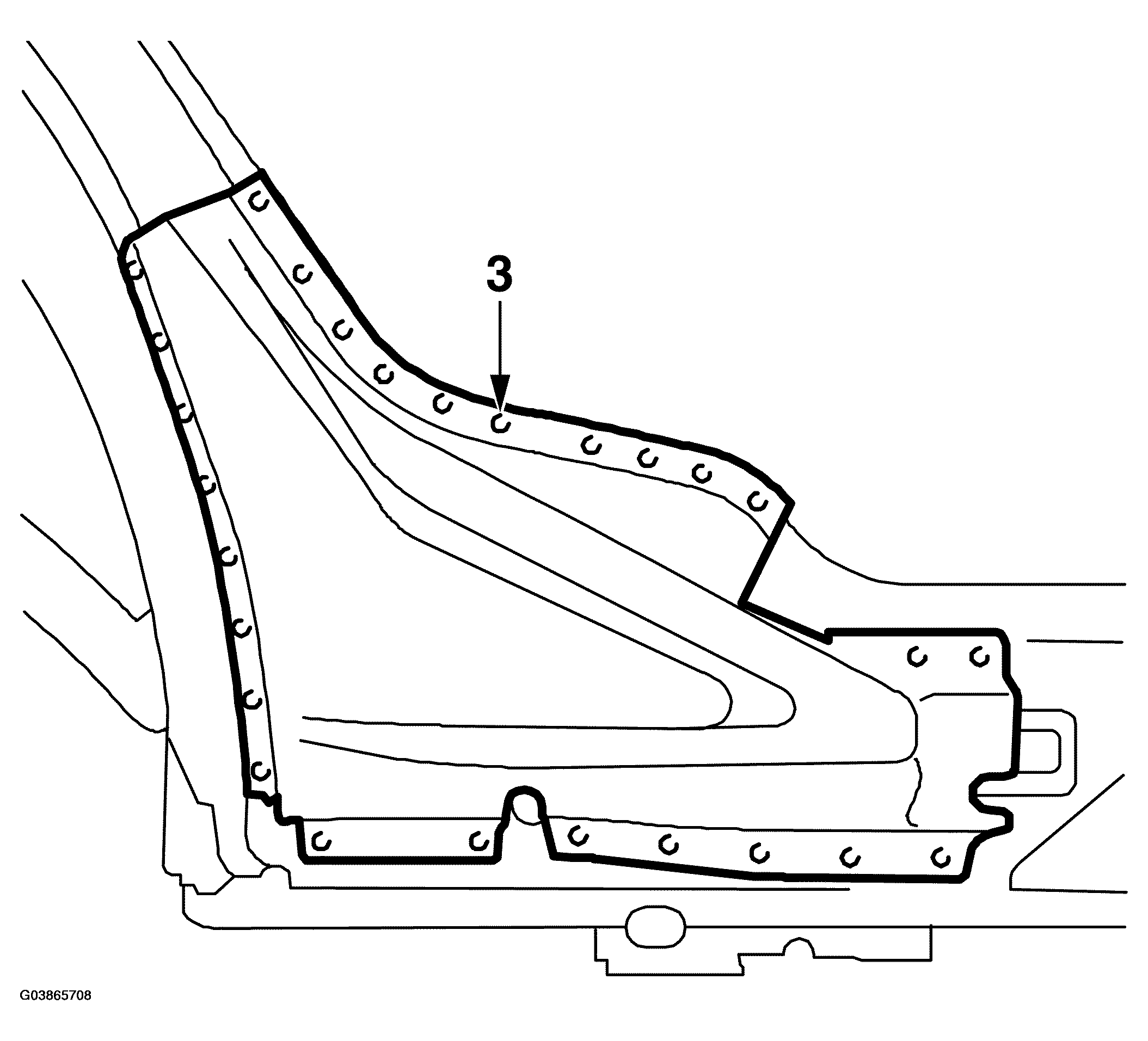

Fig 1: Illustration For Step 3
G03865708Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the car in an aligning bench.
  2. Remove the outer side panel.
  3. Drill out the spot-welds in the reinforcement by the sill.
  4. Knock away the reinforcement.
  5. Cut loose the wheel housing and remove it.

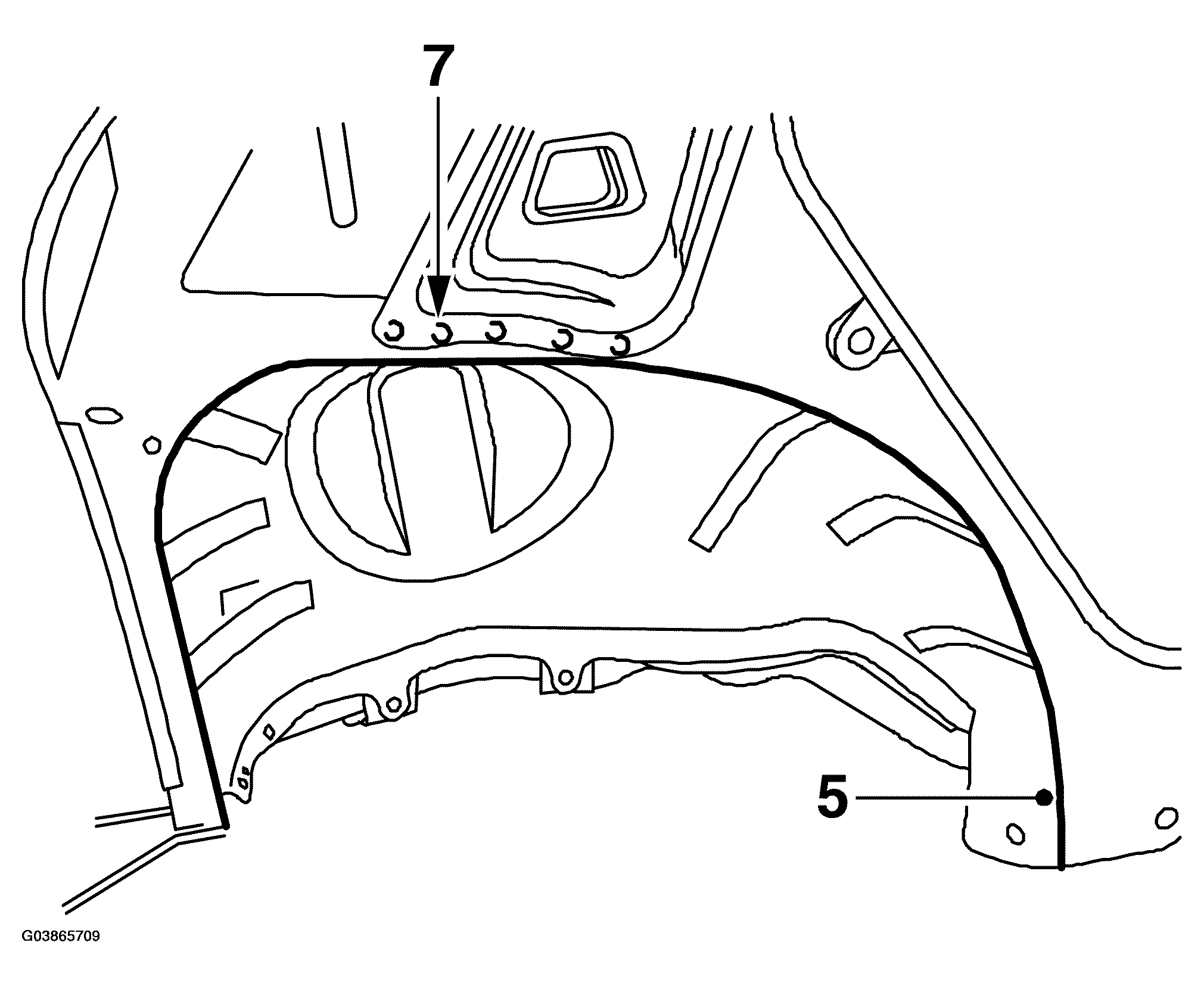

    Fig 2: Illustration For Step 5,7
    G03865709Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Cut around the wheel housing as close to the edge as possible.
  7. Drill out the lower spot-welds on the reinforcement.
