Rear bumper abutment 5D: Removing

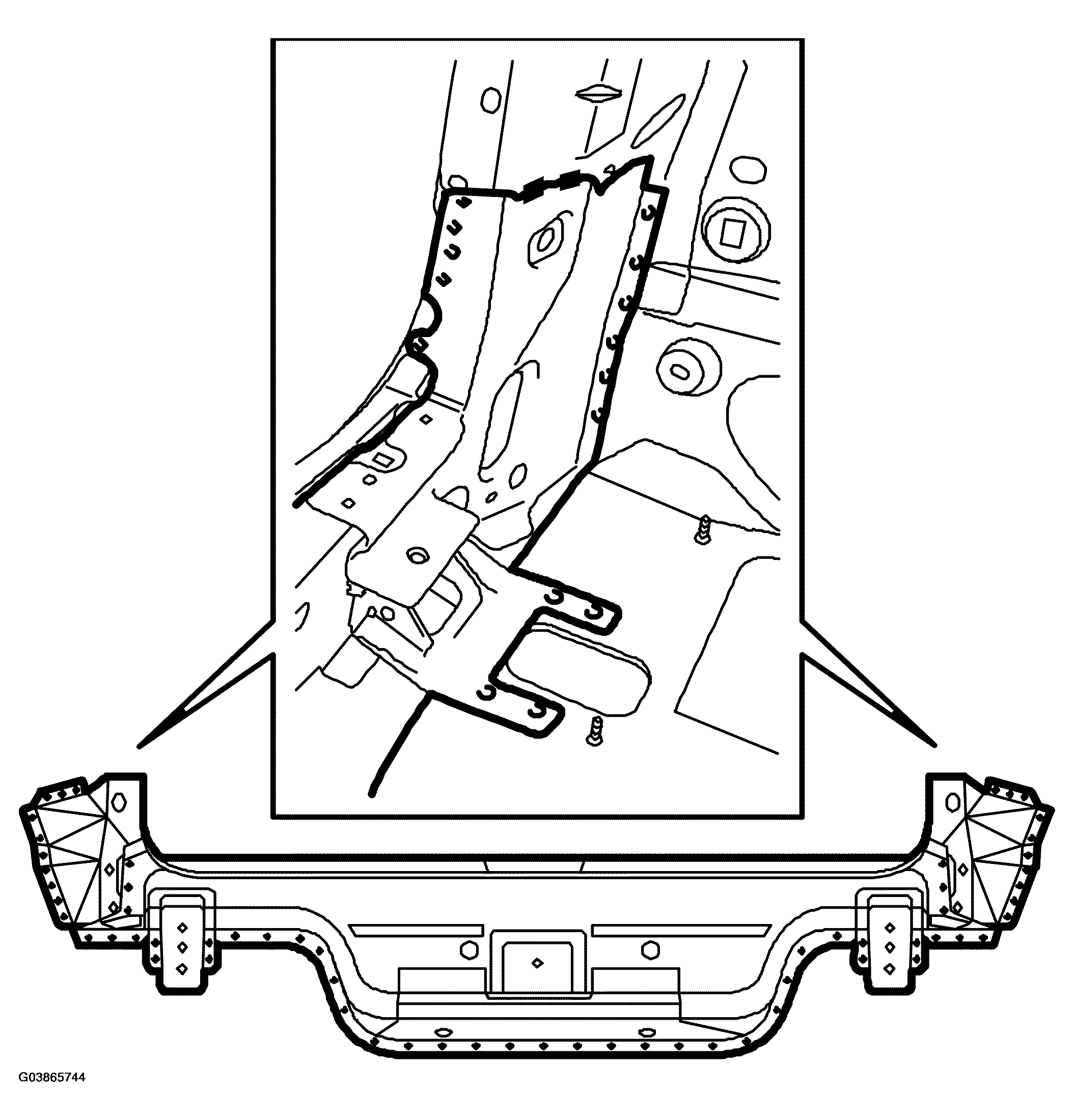

Fig 1: Removing Rear Bumper Abutment 5D
G03865744Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Mount the car in an alignment bench and align if necessary.
  2. Drill out the spot welds and grind off the seam welds.
  3. Remove the abutment and align any damaged sheet metal or panels.
